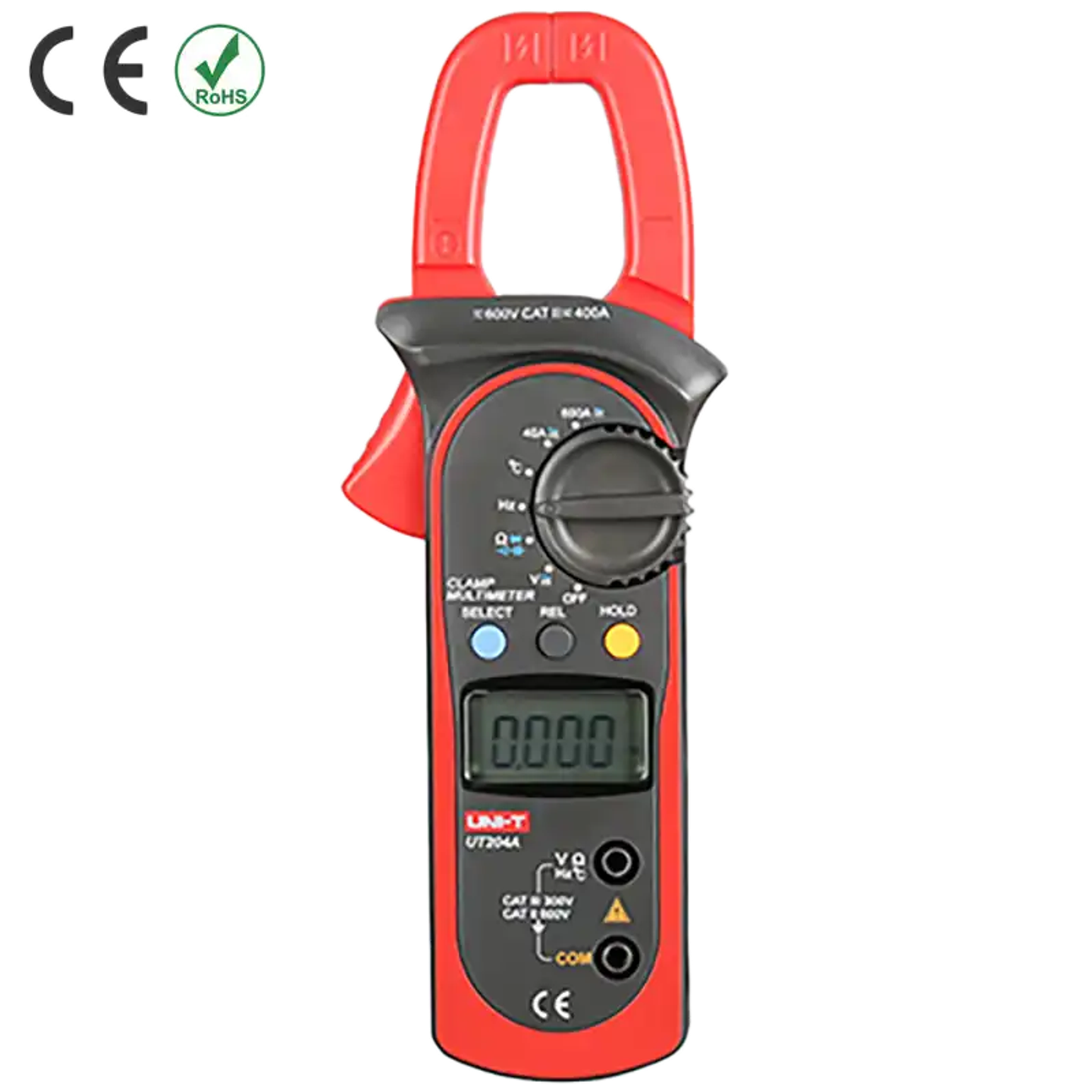

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-204A
|
🇨🇳 China
• Measurement Range: AC Current 40 / 600 A
• DC Current 40 / 600 A
• Measures AC and DC Voltage
• Resistance, Capacitance, Frequency, and Temperature Measurement
• Resolution up to 0.01A
• 3,999 Digits Display
• Clamp Size Ø28 mm
• Input Impedance 10MΩ
• Safety Standard CE Compliant
• Accuracy ±(2.5%+5 counts)
Out of Stock
Views: 0
Description
The UT-204A AC/DC Digital Clamp Meter is a professional measurement tool designed for measuring AC current, with a minimum display of 0.001A. It features high accuracy and versatility, making it suitable for both industrial and home applications. Users can quickly and accurately measure current, voltage, resistance, capacitance, frequency, and temperature, facilitating easy electrical testing and maintenance.
Specifications
- Display Digits3,999 digits
- Jaw OpeningØ28 mm
- AC Current40 / 600 A
- DC Current40 / 600 A
- DC Voltage±(0.8%+1 count)
- AC Voltage±(1%+5 count)
- Resistance400 / 4k / 40k / 400k / 4MΩ / 40MΩ
- Capacitance4n / 40n / 400n / 4μ / 40μ / 100μF
- Frequency10~10M Hz (MHz part for reference only)
- Temperature Range-40~1,000 °C
- Resolution0.01A
- Accuracy±(2.5%+5 count)
Features
- Input Impedance10MΩ
- Safety RatingCE; EN:61010-1; EN:61326-1; EN:61010-2-032
Attributes
- Operating Temperature0~40 °C / Below 70%RH No Condensation
- Storage Temperature10~50 °C / Below 50%RH No Condensation
- Altitude LimitBelow 1,000 meters
- Power Supply9v battery
- External Dimensions208 × 76 × 30mm
- Weight200g
- Accessoriestest probe, temperature test leads, battery, carrying case, instruction manual
