AC/DC Digital Clamp Meter
Brand
TECPEL
|
Model
UT-204
|
🇨🇳 China

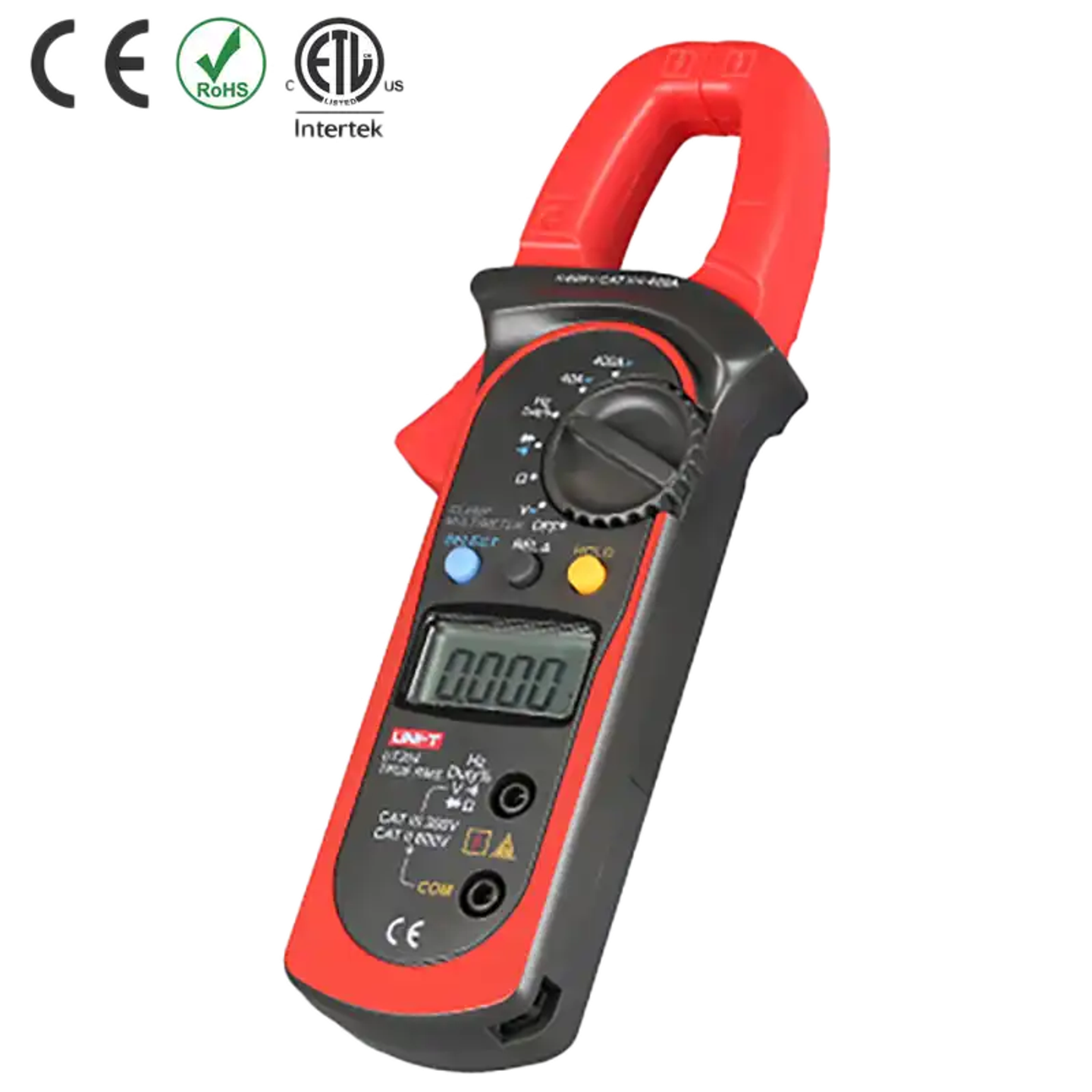

UT-204 AC/DC Digital Clamp Meter
- Measures AC current: 40/400 A
- Measures DC current: 40/400 A
- DC voltage range: 400mV - 600V
- AC voltage range: 4V - 600V
- Resistance measurement range: 400Ω - 40MΩ
- Capacitance measurement range: 4nF - 100μF
- Frequency measurement: 10Hz - 1MHz
- Duty cycle measurement: 0.1% - 99.9%
- High resolution: DC 0.1mV / AC 0.001V
- High accuracy: DC ±(0.8%+1) / AC ±(1%+5)
Out of Stock
Views: 2
Description
The UT-204 AC/DC Digital Clamp Meter is a professional measuring tool capable of accurately measuring both AC and DC currents, with a minimum display resolution of 0.001 A. Designed for testing and maintaining various electrical devices, it offers high display resolution and multiple measurement modes to meet the diverse needs of users, providing reliable data support.
Specifications
- Display Digits3,999 digits
- Jaw OpeningØ28 mm
- AC Current40 / 400 A
- DC Current40 / 400 A
- DC Voltage400m / 4 / 40 / 400 / 600 V
- AC Voltage4 / 40 / 400 / 600 V
- Resistance400 / 4k / 40k / 400k / 4MΩ / 40M Ω
- Capacitance4n / 40n / 400n / 4μ / 40μ / 100μ F
- Frequency10~1M Hz(MHz part for reference only)
- Duty Cycle0.1~99.9 %
- ResolutionDC: 0.1mV / AC: 0.001V
- AccuracyDC: ±(0.8%+1 digit) / AC: ±(1%+5 digit)
Features
- Input Impedance10MΩ
Attributes
- Operating Temperature0~40 °C / Below 70%RH, no condensation
- Storage Temperature10~50 °C / Below 50%RH, no condensation
- Altitude LimitBelow 1,000 meters
- Power Supply9v battery
- Dimensions210 × 75.6 × 30mm
- Weight200g
- Accessoriestest probe, temperature test leads, battery, carrying case, manual
