AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-203
|
🇨🇳 China

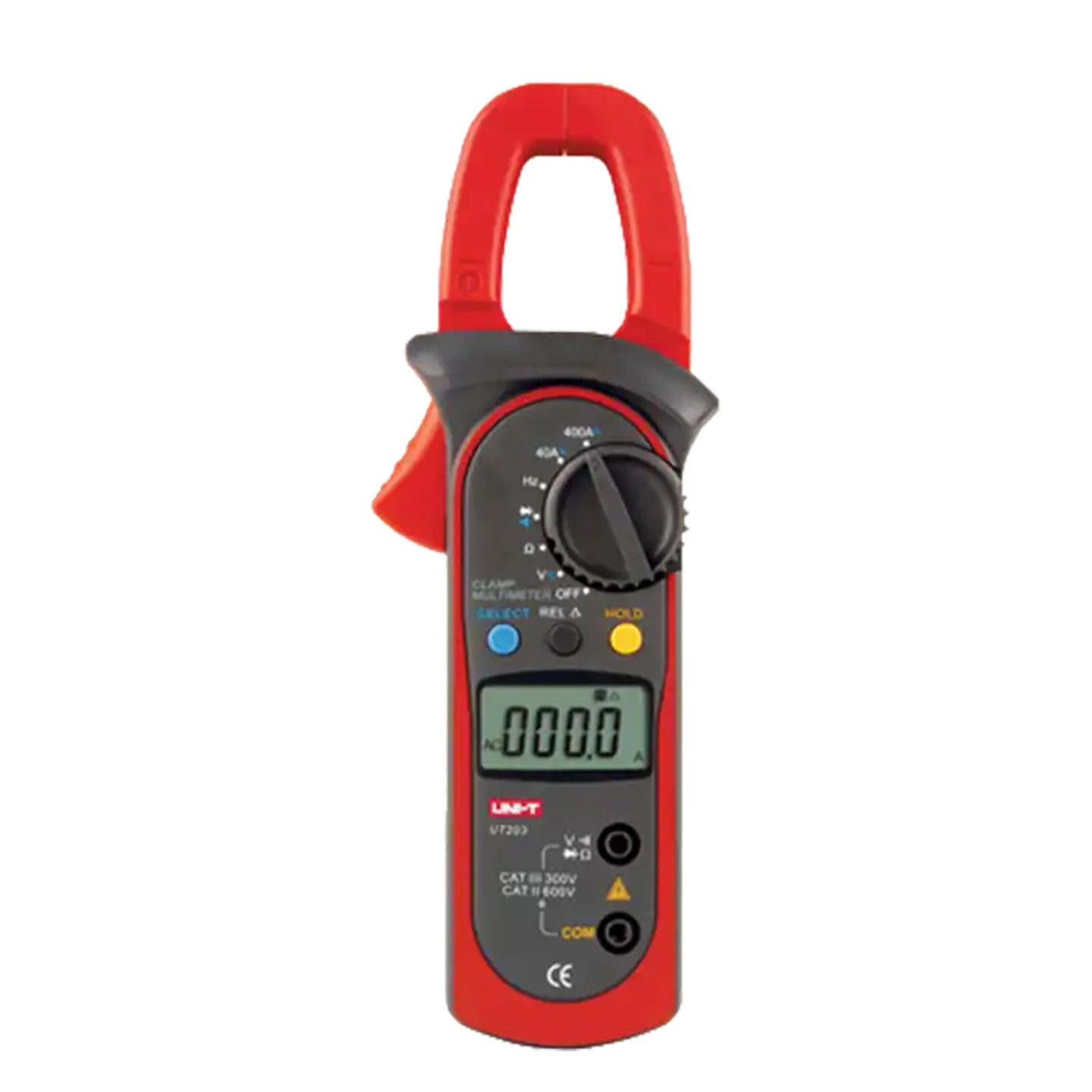

UT-203 AC/DC Digital Clamp Meter
Measures AC and DC voltage and current, with a maximum capacity of 400A
Easy to operate, suitable for basic measurements in various settings
High accuracy, capable of displaying multiple measurement data
Compact and lightweight for easy portability
Out of Stock
Views: 21
Description
The UT-203 AC/DC Digital Clamp Meter is a professional measuring tool capable of measuring AC and DC voltage as well as current. Its user-friendly design makes it suitable for various work environments. With a maximum measurement capacity of 400A, it provides accurate readings of voltage and current values, making it ideal for both home use and professional maintenance. This model has been discontinued and replaced by the UT204R.
Specifications
- Display Counts3,999 位數
- Jaw OpeningØ28 mm
- AC Current40 / 400 A
- DC Current40 / 400 A
- DC Voltage400m / 4 / 40 / 400 / 600 V
- AC Voltage4 / 40 / 400 / 600 V
- Resistance±(1%+2數值)
- Frequency10~1M Hz(MHz 部分僅供參考)
- Duty Cycle0.1~99.9 %
- AccuracyDC: ±(0.8%+1數值) / AC: ±(1%+5數值)
Features
- Input Impedance10MΩ
- Data HoldHOLD
- Relative ModeREL
- Diode Test是
- Continuity蜂鳴器
- Low Battery Indicator是
- Auto Power Off是
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature10~50 °C / lower than 50%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply9v battery
- Dimensions210 × 75.6 × 30mm
- Weight200g
- AccessoriesProbe, Temperature measuring line, Battery, Carrying Bag, Manual
