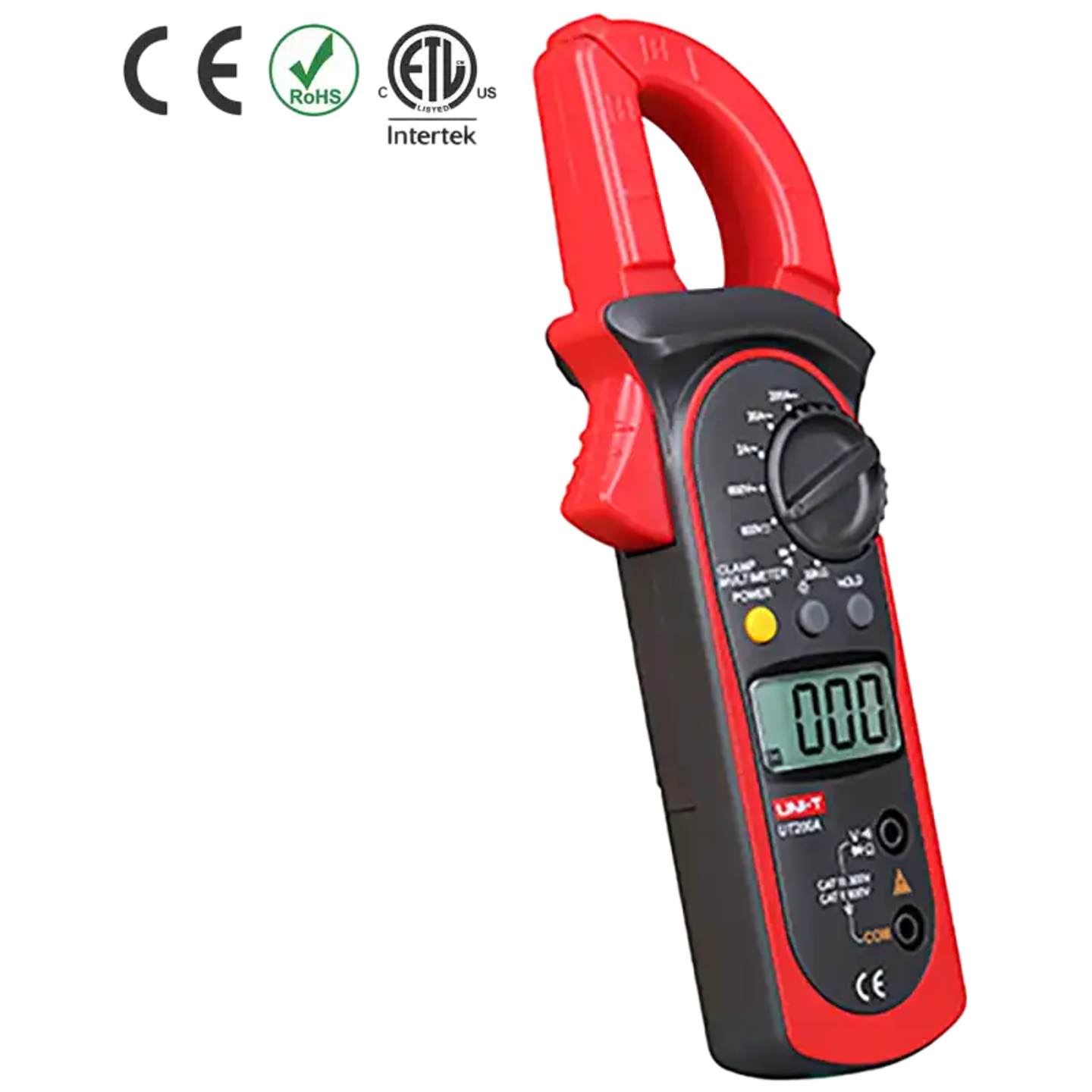

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-200A
|
🇨🇳 China
Measures AC current (2 / 20 / 200 / 600 A), DC voltage (200m / 2 / 20 / 200 / 600 V) and AC voltage (2 / 20 / 200 / 600 V)...
High display resolution of 0.001 V, suitable for precision measurements
High input impedance greater than 10M Ω, ensuring measurement accuracy
Price
NT$ 800
Out of Stock
Views: 0
Description
The UT-200A AC/DC Digital Clamp Meter is a professional measuring tool designed to accurately measure AC current in equipment, with a minimum display of 0.001 A, making it ideal for assessing the performance of electronic devices. This clamp meter features multiple functions, including DC voltage, AC voltage, and resistance measurements, providing a display of up to 1,999 counts for quick and precise data acquisition.
Specifications
- Display Digits1,999 digits
- Jaw Opening28 mm
- AC Current2 / 20 / 200 / 600 A
- DC Voltage200m / 2 / 20 / 200 / 600 V
- AC Voltage2 / 20 / 200 / 600 V
- Resistance200 / 2K / 20K / 200k / 2M / 20M Ω
- Operating Temperature-40~1,000 °C(-40~1,832 °F)
- ResolutionDC: 0.1mV / AC: 0.001V
- Accuracy±(1% + 3 °C)
Features
- Input ImpedanceGreater than 10M Ω
Attributes
- Operating Temperature0~40 °C / Below 70%RH, no condensation
- Storage Temperature10~50 °C / Below 50%RH, no condensation
- Altitude LimitBelow 1,000 公尺
- Power Supply1.5V AAA battery x 2
- Dimensions208 × 76 × 30mm
- Weight220g
- Accessoriestest leads, batteries x2, carrying case, manual
