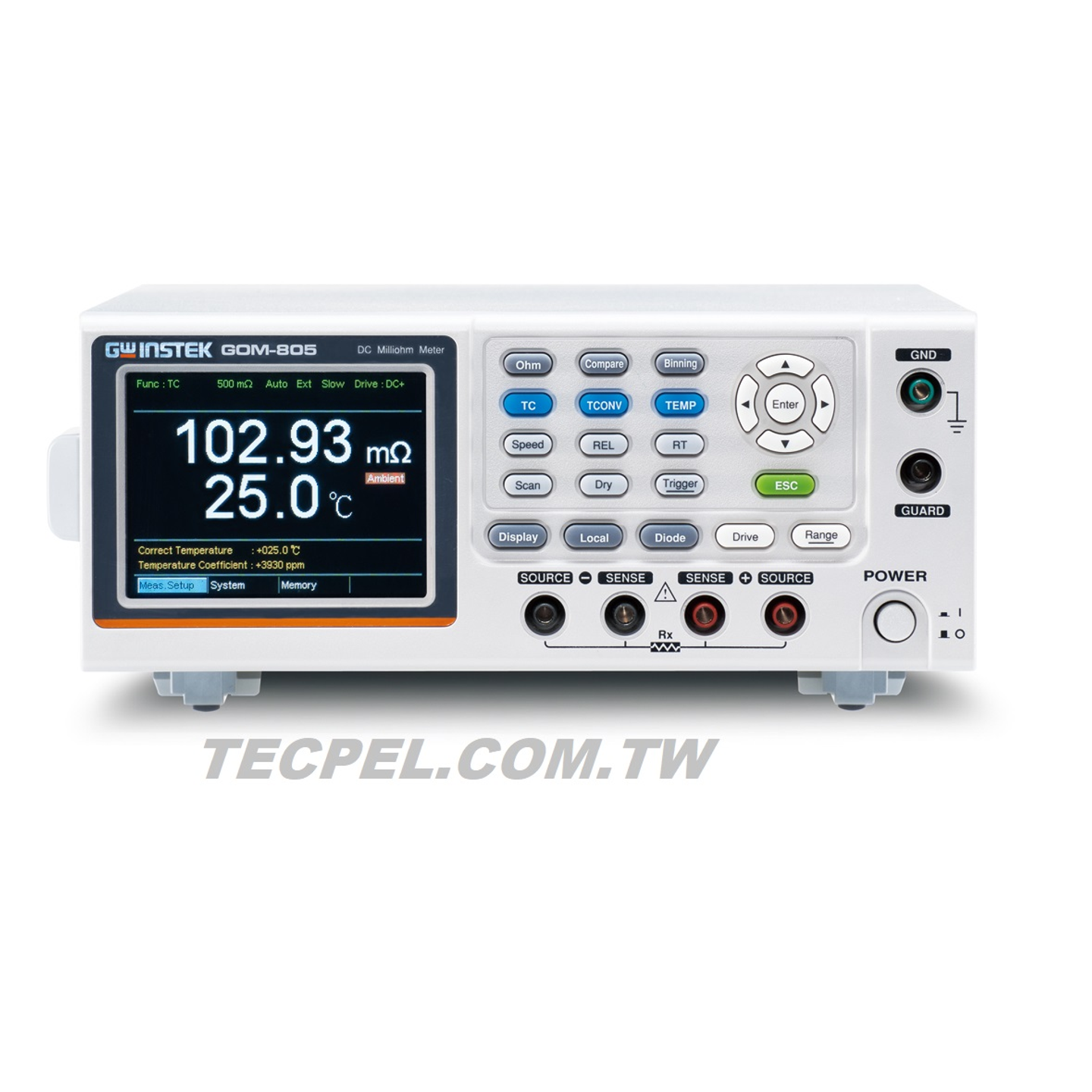

DC Micro Ohmmeter
Brand
GWINSTEK
|
Model
GOM-805
|
🇹🇼 Taiwan
The GOM-805 DC Micro Ohmmeter offers high accuracy and a broad measurement range, making it an indispensable testing tool in the industrial sector.
- Multiple drive modes: DC+, Pulsed, PWM, Zero, Standby
- Waveform trigger options: Internal, Manual, External
- Mathematical operation functions: ABS, REL, %, TC
- Exclusive filtering function: Only GOM-805
Out of Stock
Views: 52
Description
The GWINSTEK GOM-805 DC Micro Ohmmeter is a high-precision testing instrument designed for industrial applications, providing a wide range of impedance measurements to meet various precise testing needs. Utilizing advanced technology, it ensures measurement accuracy and stability, making it suitable for testing electrical equipment, cables, and electronic components to ensure their performance meets standards.
Specifications
- Display50,000 counts
- Sampling Rate慢速：10 readings/s，快速：60 readings/s
- Impedance Measurement5mΩ ~ 5MΩ，解析度及精準度依檔位變化
- Temperature Range-50˚C ~ 399.9˚C，精度：± 0.3% ± 0.5˚C
- Resolution0.1˚C
Features
- 驅動模式DC+，Pulsed，PWM，Zero，Standby
- Wave Trigger內部、手動、外部
- 數學運算ABS, REL, %, TC
- 篩選功能僅 GOM-805
Attributes
- Dimensions223(W) x 102(H) x 283(D) mm
- WeightApprox. 3kg
- Display3.5'' (320 x 240) TFT LCD
- Power SupplyAC 100 - 240 V, 50/60Hz
- InterfaceUSB, RS-232C, HANDLER/SCAN/EXT I/O, GPIB
