Temperature and Humidity Display Board (upper and lower limit alarm)， industrial display monitors

Name: TECPEL TRH-3306DHL Temperature and Humidity Display Board (upper and lower limit alarm)， industrial display monitors
Brand: TECPEL
SKU: TRH-3306DHL

Brand TECPEL | Model TRH-3306DHL | 🇹🇼 Taiwan

The TRH-3306DHL is a professional temperature and humidity display board with the following features: - Settable upper and lower limit alarm values - Supports analog signals (4~20mA or 0~5V or 0~10V) - Digital signal input (MODBUS) - External temperature and humidity sensor support - Suitable for warehouses, factories, and clean rooms - Alarm functions with buzzer and warning lights

Out of Stock

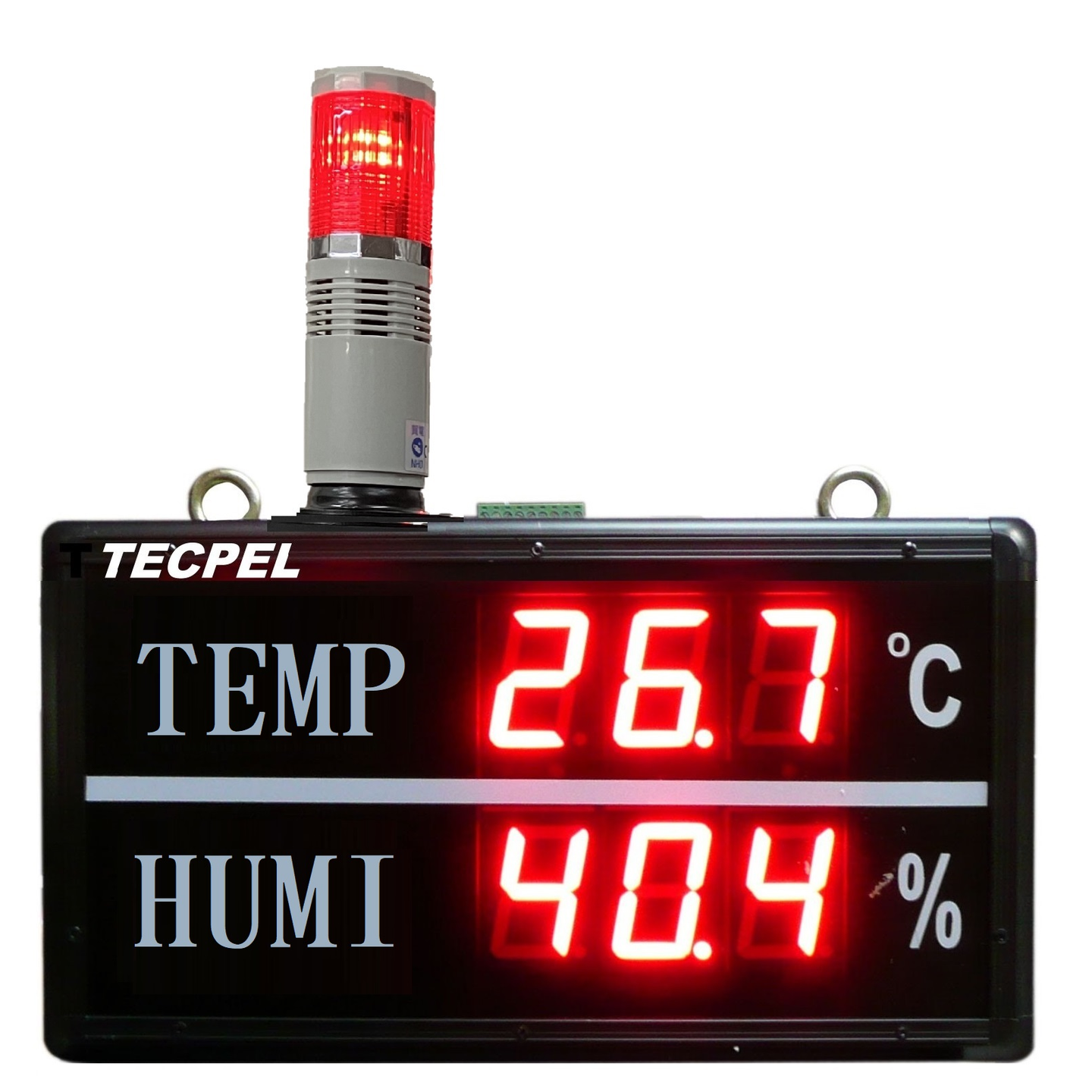

The TRH-3306DHL Temperature and Humidity Display Board is a dual-row digital display designed specifically for industrial applications, accurately showing the current temperature and humidity values. When measurements exceed the set upper and lower limits, the device can issue alarms via warning lights and buzzers, ensuring real-time monitoring and safety of the environment. This product is suitable for warehousing environments, high-tech production spaces, and other locations requiring strict environmental control, and supports multiple communication interface expansions for easy integration with other devices.

精確度±1%
溫度範圍00.0 ~ 99.9 °C 或 -19.9 ~ 80.0 °C
濕度範圍00.0 ~ 99.9 %
解析度1 或 0.1
反應時間3次/秒或 0.5次/秒

類比訊號4~20mA 或 0~5V 或 0~10V (訂購時需指定)
數位訊號MODBUS
電壓輸出DC24V / 100mA
使用者補償數位補償
數字顯示紅色LED燈
外觀尺寸2.3吋 (H57mm x L32mm)
警報功能警示燈、蜂鳴器

Operating Temperature0 to 50°C / lower than 90%RH without dew。
Storage Temperature0 to 60°C / 10 to 70%RH without dew
Elevation LimitationLower than 1,000 meters
Power SupplyAC 110V or 220V (Depends on the specifications of the alarm, please confirm before ordering)
DimensionsH220mm x L420mm x D95mm
WeightApprox. 3.1 kg
