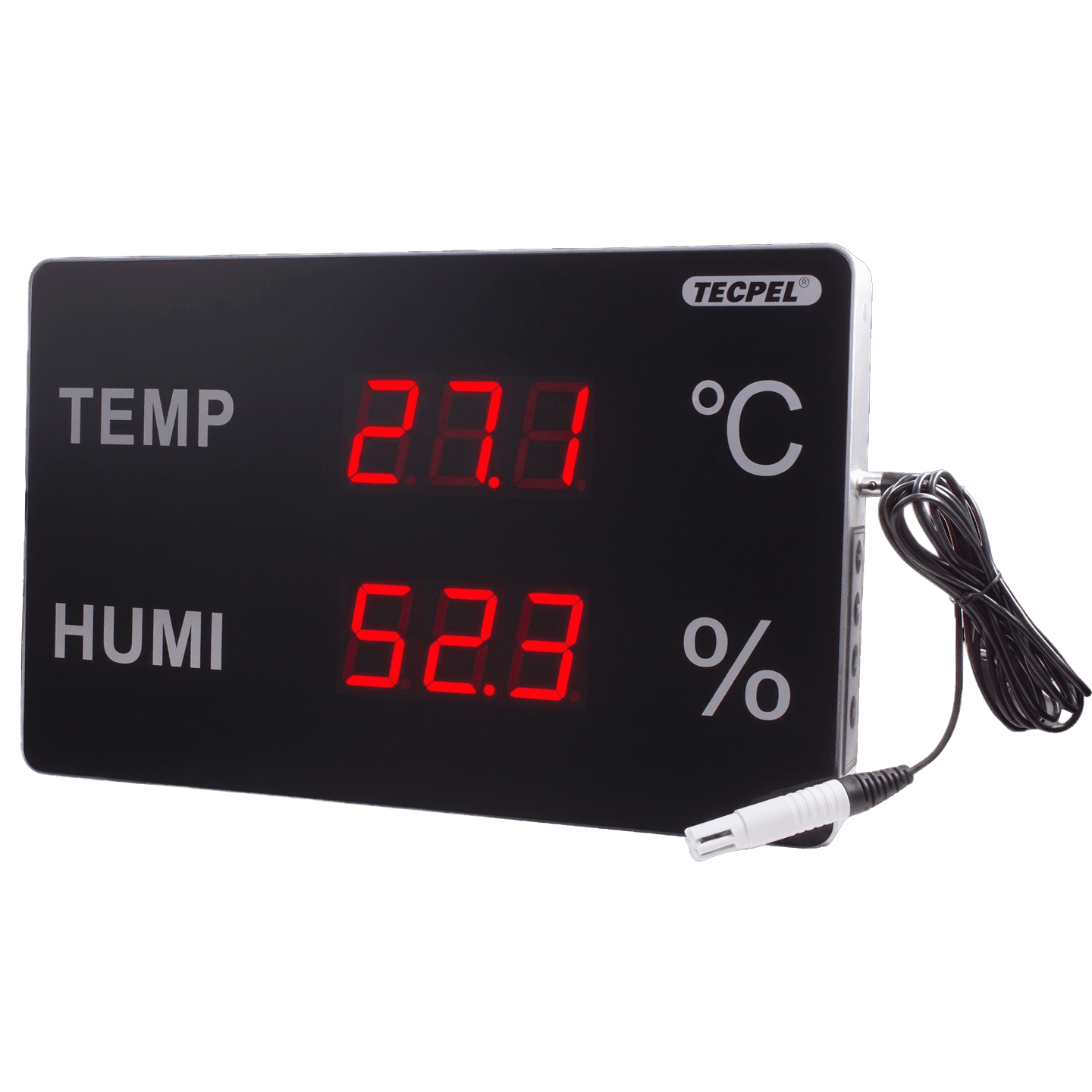

Temperature and Humidity Display Board Industrial Monitor
Brand
TECPEL
|
Model
TRH-3305
|
🇨🇳 China
The TRH-3305 is an LED temperature and humidity display board equipped with a replaceable remote temperature and humidity sensor, meeting users' requirements for measuring specific areas as needed. Featuring high-precision sensors, the temperature accuracy is ±0.5 °C and the humidity accuracy is ±5 %RH. Digital correction can also be performed to compensate for sensor aging and extend service life.
Price
NT$ 6,195
Out of Stock
Views: 5
Description
The TRH-3305 is a large-format digital temperature and humidity display with an elegant design and clear readout, allowing data to be easily viewed from up to 20 meters away. This unit adopts a detachable sensor design, enabling convenient replacement when the sensor ages to ensure measurement accuracy. Equipped with Swiss-made precision sensors, it delivers outstanding accuracy and long-term stability, and bias can be easily adjusted via buttons for simple operation.
Specifications
- Temperature-20.0 ~ 70.0 °C
- Humidity Range20.0 ~ 99.9%RH
- Resolution0.1°C / 0.1 %RH
- Accuracy±0.5°C / ±5%RH @23°C
- Response Timeless than 5 minutes (63% change)
- Response Rateapproximately 2 minutes (63% change)
- Warm-up Timeless than 60 seconds at 22°C (time from power-on to complete numerical display)
Features
- LEDred light
- Replaceable SensorYes
- Numeric Compensationeasy button calibration
- Display Distanceup to 20 meters
- Precision Sensormade in Switzerland
- Compensation Functiondigital correction
Attributes
- Operating Temperature0~40°C / less than 95%RH, non-condensing.
- Storage Temperature-20~60°C / less than 70%RH, non-condensing.
- Altitude Limitbelow 1,000 meters
- Power SupplyAC100~240V, 50/60Hz, approximately 7 watts (W)
- Dimensions38 x 24 x 4.5 cm
- Package Size46×31.5×8.5 cm
- Weight2.1 kg
- Accessoriessensor, manual, power cord
- Traceable Calibration Certificateas shown in the sample above (optional before shipment)
