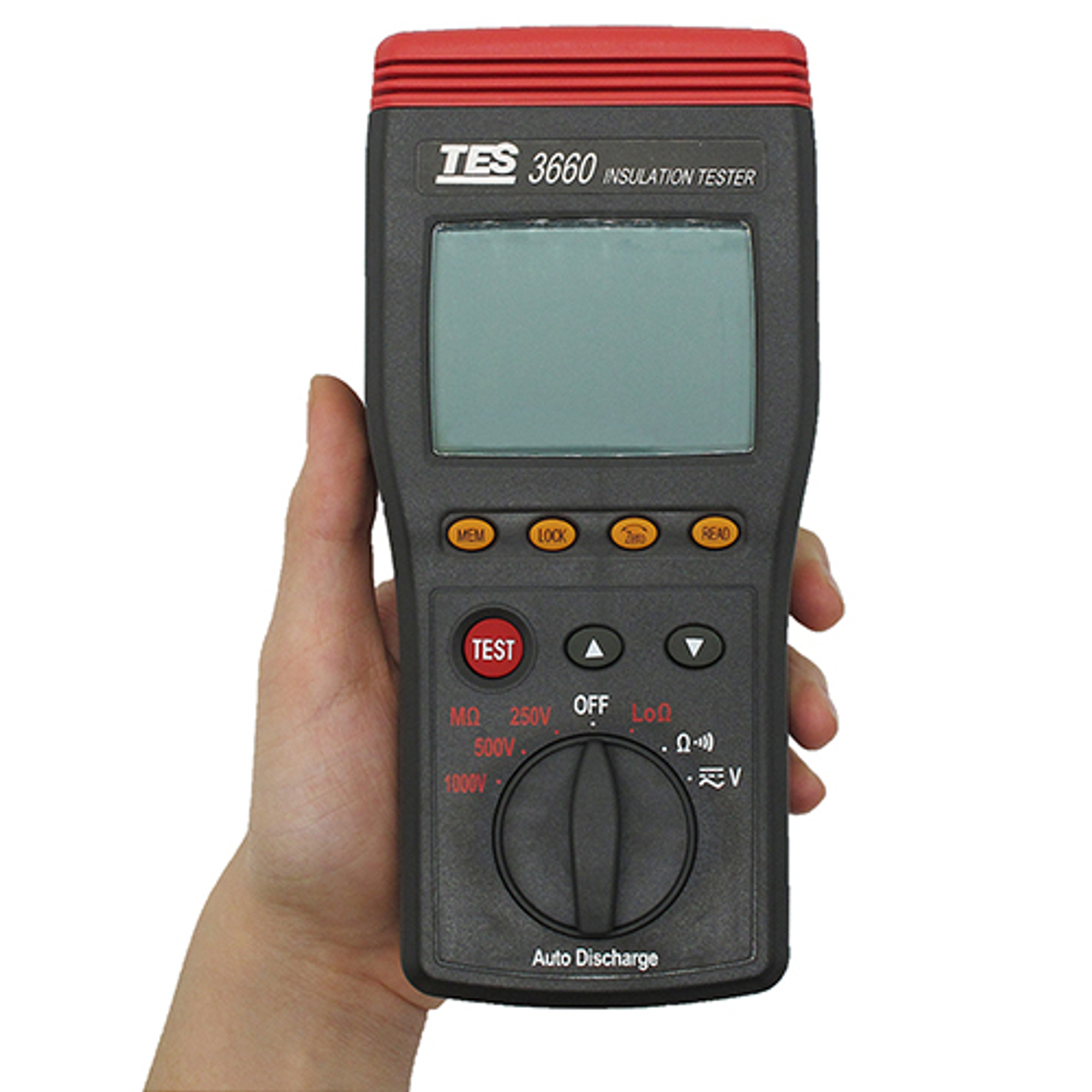

Automatic Range Insulation Tester
Brand
TES
|
Model
TES-3660
|
🇹🇼 Taiwan
Automatic range switching feature, suitable for industrial applications
Supports insulation resistance testing from 250V to 1000V
Large LCD display for intuitive readability
Data memory function, capable of storing 9 sets of test data
Equipped with automatic discharge and auto-lock functions
Price
NT$ 5,800
Out of Stock
Views: 0
Description
The TES-3660 Automatic Range Insulation Tester offers three test voltage options of 250V, 500V, and 1000V, along with a large dual-digit LCD display. Designed for insulation testing in industrial environments, its automatic range switching feature simplifies the testing process, ensuring circuit safety and suitable for various equipment's insulation performance checks.
Specifications
- Sensor TypeInsulation Resistance Test
- Test Voltage250V, 500V, 1000V
- Insulation Resistance4MΩ to 10GΩ
- Output VoltageAC/DC 1000V
- Dimensions235(L) x 116(W) x 54(H) mm
Features
- 資料記憶9組
- 自動放電是
- 自動鎖定是
- 電阻測試是
- 電容測試是
Attributes
- Safety RatingEN61557, IEC61010-1 CAT III 1000V
- DisplayLarge LCD Dual-Digit Display and Analog Indicator
- Operating ConditionsAvoid exceeding 1000V AC/DC
- Power SupplyAC/DC Voltage Measurement
