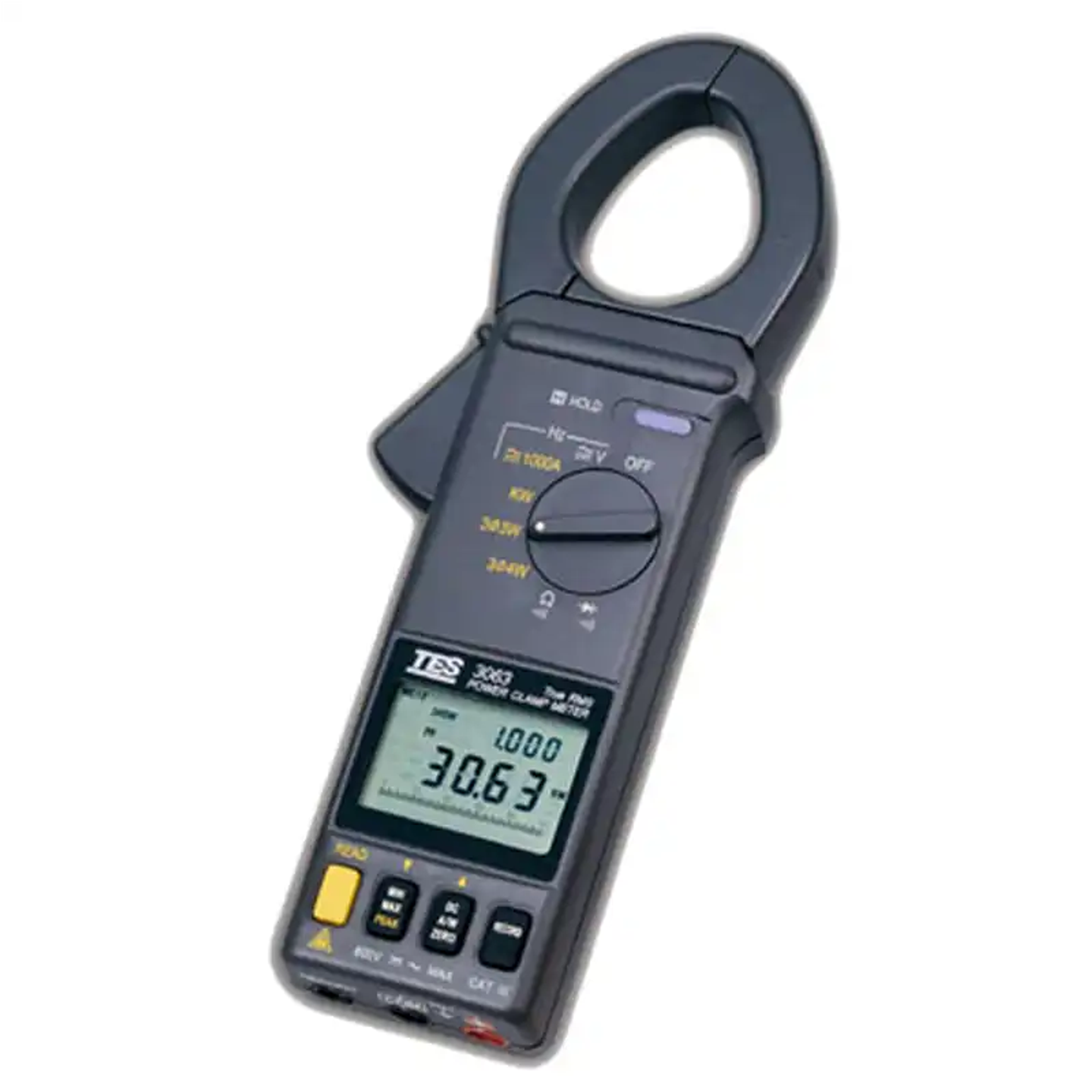

AC/DC Digital Clamp Meter
Brand
TECPEL
|
Model
TES-3063
Measures AC current: 5~1,000 A
Measures DC current: 5~1,000 A
Continuous storage of 4,000 data points
Auto power-off: approximately 30 minutes
Optocoupler interface signal output
Safety rating: EN-61010-1; IEC 1010-2-32
Out of Stock
Views: 0
Description
The TES-3063 AC/DC Digital Clamp Meter is designed for professional power measurement, capable of accurately measuring both AC and DC power with data logging functionality. It can continuously store up to 4,000 data points and manually save 25 points, allowing users to easily transfer measurement data to a computer for further analysis, with additional purchase of transmission cable and software required. Its robust design and high safety ratings ensure safety during use, making it suitable for various electrical applications.
Specifications
- Display Digits9,999 digits
- Jaw OpeningØ46 mm
- AC Current5~1,000 A
- DC Current5~1,000 A
- AC Voltage600 V
- DC Voltage600 V
- DC Peak Measurement20~1,000 A (less than or equal to 1毫秒)
- AC Peak Measurement20~600 A (less than or equal to 1毫秒)
- Resistance10K Ω
- Frequency5KHz
- ResolutionDC: 0.1 V / AC: 0.1 V
- AccuracyDC: ±(0.5% + 5 digits) / AC: ±(0.5% + 5 digits) at 45~500 Hz
- Sampling Ratedigital 5 times per second / bar graph 5 times per second / once every 3 seconds KW power
Features
- Data LoggingContinuous storage 4,000 records / Manual storage 25 records
- Low Battery Indicator40 segments
- Auto Power OffApprox. 30 minutes
- Signal OutputOptocoupler Interface
- Safety RatingEN-61010-1; IEC 1010-2-32
Attributes
- Operating Temperature0~50 °C / Below 80%RH no condensation
- Storage Temperature-10~60 °C / Below 70%RH no condensation
- Altitude LimitBelow 1,000 公尺
- Power Supply1.5V AA battery x 2
- Dimensions260 × 93 × 45 mm
- Weight450g(including battery)
- AccessoriesBattery x2、Test leads、Carrying case、Manual
