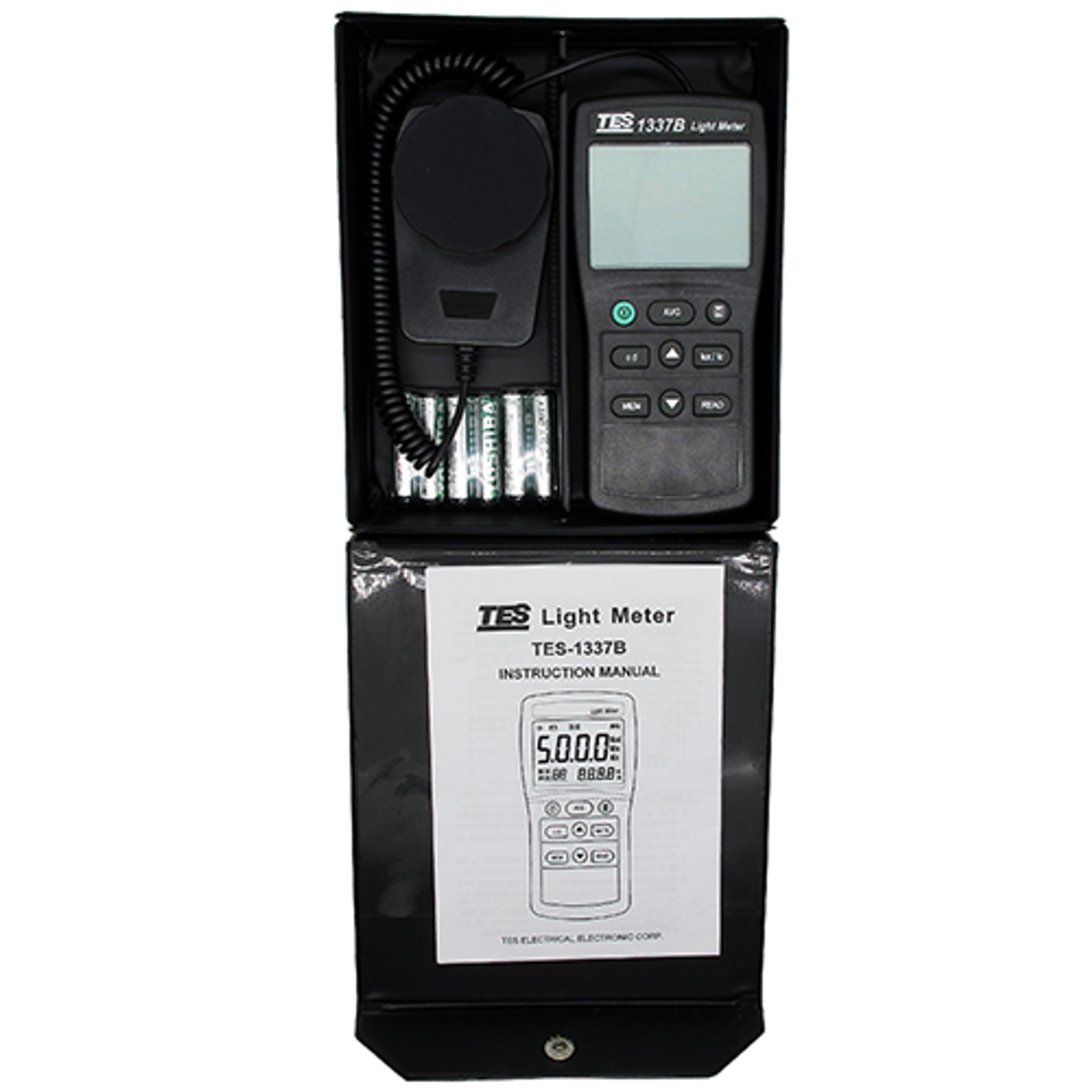

Lux Meter (Light Intensity)

Brand TES | Model TES-1337B | 🇹🇼 Taiwan
The TES-1337B Lux Meter offers automatic range switching across five settings, perfect for meeting diverse light intensity measurement needs. It delivers precise data and easy-to-read displays, ideal for professionals in photometric testing and management.
Price NT$ 3,990
Out of Stock
Views: 0

Description

The TES-1337B is a professional lux meter designed for measuring light intensity. It features dual displays with high precision and a wide range of measurement settings, which can automatically adjust to different lighting environments. It provides accurate readings and is suitable for various industrial and commercial applications. Usage: tunnels, street lights.Light intensity (cd candlelight) = Lux illumination x (distance) 2.Dual display, 4-digit LCD display.The spectral sensitivity value is close to the photopic spectrum curve specified by the International Illuminating Association.The measuring range is from 0.01 lux to 200.0 klux and 0.001 fc to 20.00 kfc, each with 5 gears, all of which are fully automatic shifting.Accurate measurement and fast response.Light source luminous intensity measurement.Reading value lock function.Manual value recording and reading functions, data memory capacity of 99 entries.The point average illuminance value function is used to measure the average illuminance value of the illuminated surface.Automatic shutdown function to save unnecessary battery energy consumption.

Specifications

  • Measuring Range50.00 lux to 200.0 klux ±3%
  • Resolution0.01 lux
  • Temperature Characteristic±0.1%/℃
  • Sampling Rate5 times/sec
  • Spectral Accuracy≦6%

Features

  • Overload ProtectionDisplays 'OL'
  • Data Memory Capacity99 records
  • Battery Life100 hours

Attributes

  • Operating Temperature0℃ ~ 50℃ <80% RH
  • Storage Temperature-10℃ ~ 60℃ <70%RH
  • Light IntensityApprox. 150 cm
  • Dimensions150 × 72 × 33 mm
  • Weight320g
  • Power Supply6 x 1.5V AAA batteries
  • AccessoryUser manual, batteries, carrying case
