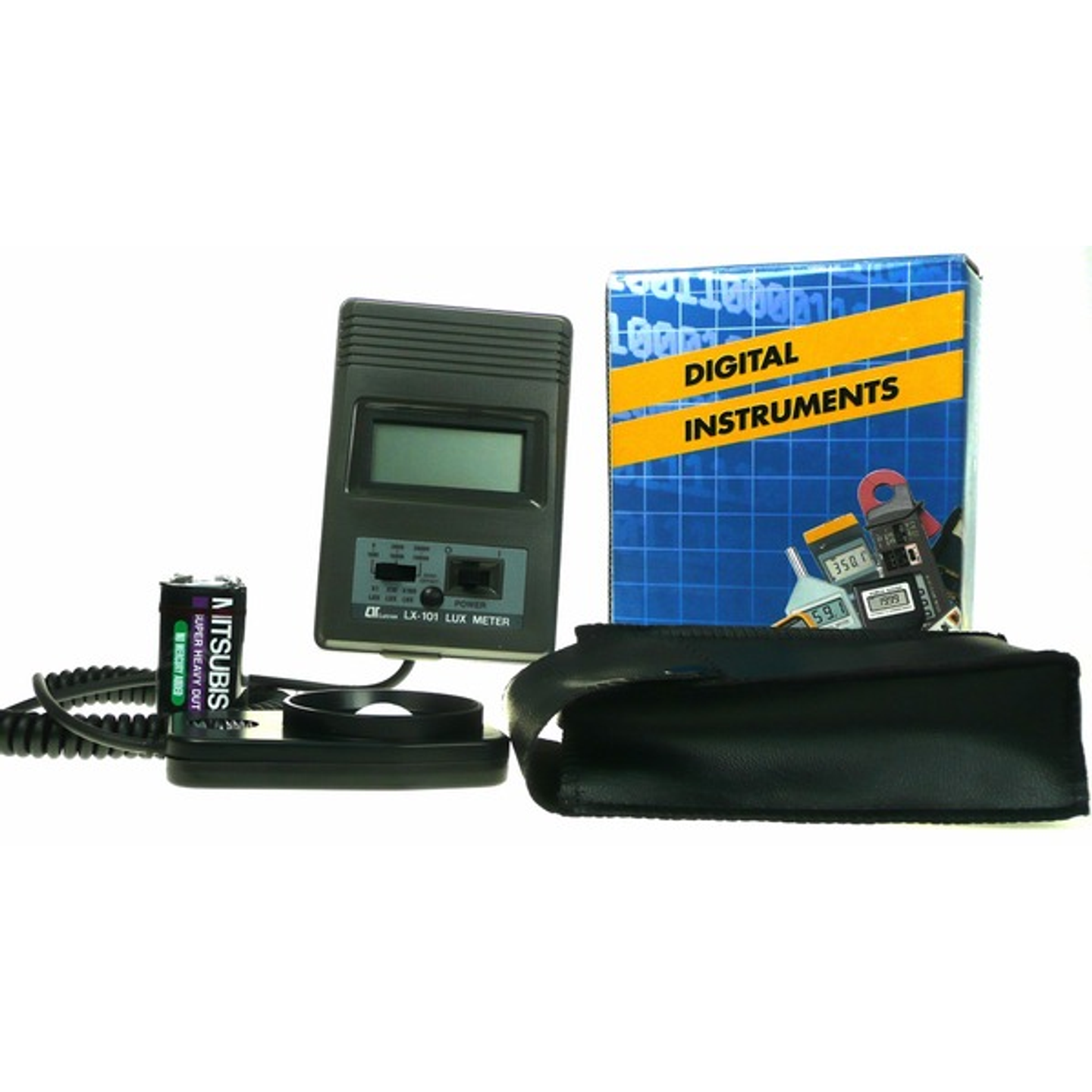

LX-101 Handheld Light meter
Brand
LUTRON
|
Model
LX-101
|
🇹🇼 Taiwan
Digital Light Meter LX-101 Photometer provides a wide range of illuminance measurement range and corresponding resolution. It features fast sampling times, highly accurate measurement accuracy, and automatic zero adjustment. The photometer runs on a DC 9V battery and operates over an operating temperature range of 0°C to +50°C. The package includes operating instructions, sensors, batteries, storage bags, and dimensions of the main unit and probe. Overall, this is an efficient photometer that is easy to carry and suitable for different environments.
The LX-101 Illuminance Meter offers a measurement range of 0 to 50000 Lux with three selectable ranges. It provides high resolution and accuracy, with automatic zero adjustment for convenience.
Price
NT$ 1,470
Out of Stock
Views: 0
Description
Digital Light Meter Model: LX-101
Measurement Ranges:
0~200 Lux2000~5000 Lux20000~50000 LuxAccuracy: ±5%
Spectral Response of Photocell: Complies with C.I.E (International Commission on Illumination) specifications, ensuring measurement accuracy and standardization.
Color Temperature Calibration: Standard light calibration at 2856 degrees K, indicating that the light meter considers the color temperature of the light source for more accurate measurements.
Size: 108x73x23mm
In summary, this digital light meter, Model LX-101, is suitable for various applications, ranging from general indoor lighting to more specialized lighting environments. It provides relatively accurate measurements of illuminance within the specified ranges.
Specifications
- Measurement Range:0~50000 Lux (Three Ranges)
- ResolutionResolution: 1 Lux (<2000 Lux), 10 Lux (<20000 Lux), 100 Lux (<50000 Lux)
- Sampling Time:0.4 seconds
- Measurement Accuracy:±(5%+2 digits)
- Zero Adjustment:Automatic adjustment
- Power SupplyDC 9V battery
Attributes
- Operating Temperature0℃~50℃(32℉~122℉)/ less than 90%RH. No condensation.
- Storage Temperaturelower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Working power supplyDC 9 volt battery, 006P x 1
- Consumption currentabout DC 6.2mA.
- Dimensions主機：108(L)x73(W)x23(H) mm Sensor Probe ：82(L)x55(W)x7(H) mm
- Weight6.8 oz(312g)
- AccessoryUser manual, sensor, battery, carrying pouch, main unit:
