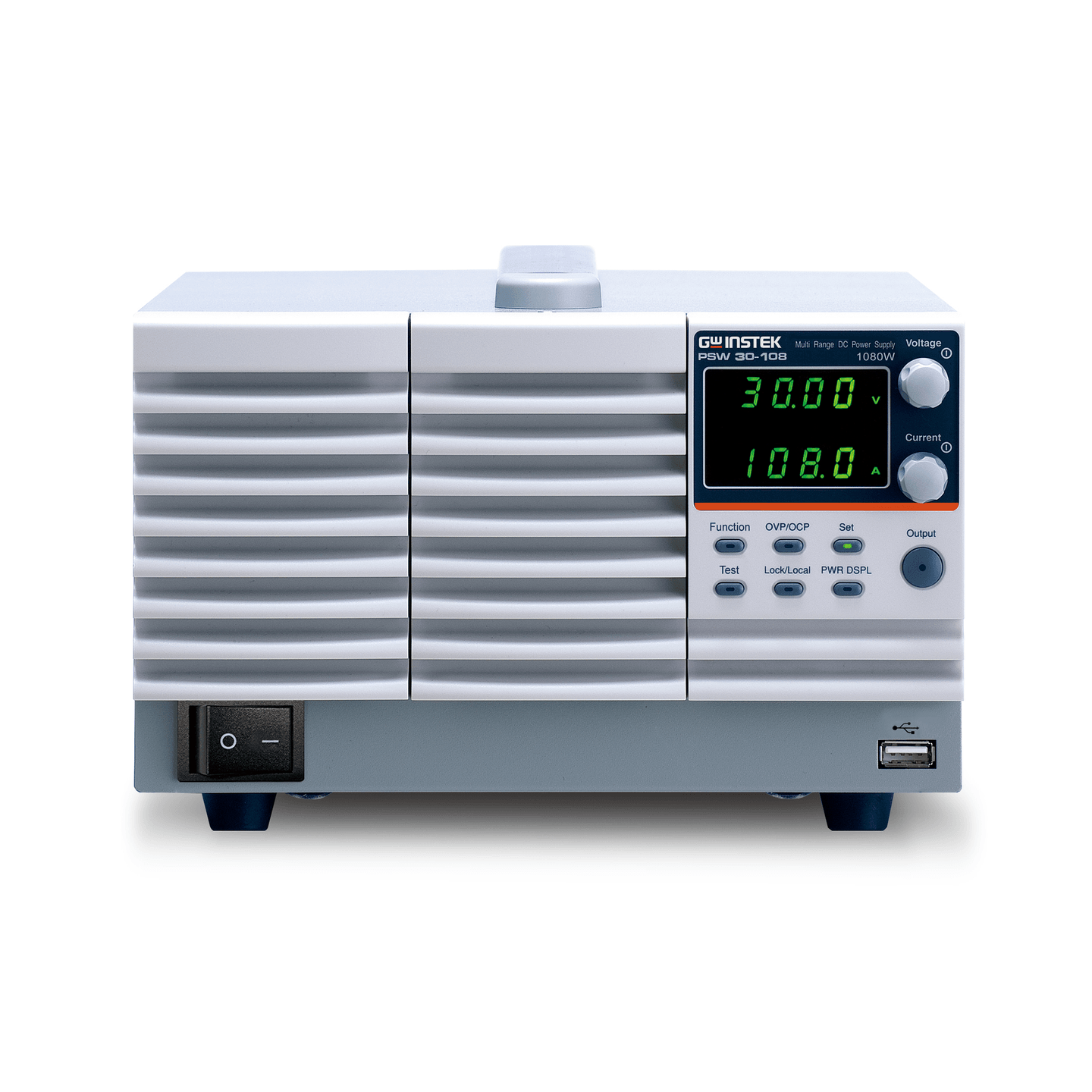

PSW Series Programmable Switching DC Power Supply
Brand
GWINSTEK
|
Model
PSW-Series
|
🇨🇳 China
Single-output multi-range programmable switching DC power supply series covering 30 V to 800 V and 360 W to 1080 W across 18 models.
Downloads
PSW Series Specifications CPSW Series User Manual EN NPSW Series Programming Manual EN 2PSW Series Brochure EN 202604PSW Series USB Interface Application Note 1GUR-001 RS-232C to USB Adapter GuideGUG-001 GPIB to USB Adapter User Manual 1GRA-410 Rack Adapter Assembly Manual 20210728LinkVIeW Software User Manual EN 20260702
Out of Stock
Views: 2
Description
The PSW Series is a single-output multi-range programmable switching DC power supply family that provides flexible voltage and current settings within rated power. It supports CC/CV priority mode, adjustable slew rate, OVP/OCP protection, LAN, USB and analog remote control, making it suitable for LED, battery, R&D and automated production test applications.
Specifications
- Output TypeSingle-output multi-range programmable switching DC power supply
- Rated Voltage30 V / 40 V / 80 V / 160 V / 250 V / 800 V
- Rated Power360 W / 720 W / 1080 W
- Model Count18 models
- Output Voltage Range0~30 V / 0~40 V / 0~80 V / 0~160 V / 0~250 V / 0~800 V
- Output Current RangeUp to 36 A / 72 A / 108 A depending on model
- CommunicationLAN / USB / external analog remote control terminal
- Optional InterfacesGPIB-USB adapter / RS232-USB cable
Features
- ChannelsSingle channel
- Multi-Range OperationFlexible voltage and current settings within rated power
- CC/CV PrioritySuitable for battery, LED and capacitive-load testing
- Adjustable Slew RateVoltage/current rise and fall rate control
- Series OperationUp to 2 units for 30 V / 40 V / 80 V / 160 V models
- Parallel OperationUp to 3 units for all voltage platforms
- Overload ProtectionUser-settable OVP/OCP, default 110% of rating
- Software SupportLabVIEW Driver and Data Logging PC software support
Attributes
- Rack Size360 W / 720 W / 1080 W in 1/6, 1/3 and 1/2 rack mount sizes (EIA/JIS)
- Operating Temperature0~50 °C
- Operating Environment Humidity20%~85% RH
- Altitude LimitBelow 1,000 m
- Power SupplyAC 100~240 V ±10%, 47~63 Hz
- Standard AccessoriesPower cord, GTL-240 USB L cable, accessory kit and terminal covers depending on voltage platform
- AccessoriesPSW series kits/cables, GUG-001, GRA-410-J/E, GET-001/002, GTL-130, GTL-248, GUR-001A/B
- Ordering ModelsPSW 30-36, PSW 30-72, PSW 30-108, PSW 40-27, PSW 40-54, PSW 40-81, PSW 80-13.5, PSW 80-27, PSW 80-40.5, PSW 160-7.2, PSW 160-14.4, PSW 160-21.6, PSW 250-4.5, PSW 250-9, PSW 250-13.5, PSW 800-1.44, PSW 800-2.88, PSW 800-4.32
- Official Sourcehttps://www.gwinstek.com/zh-TW/products/detail/PSW-Series
