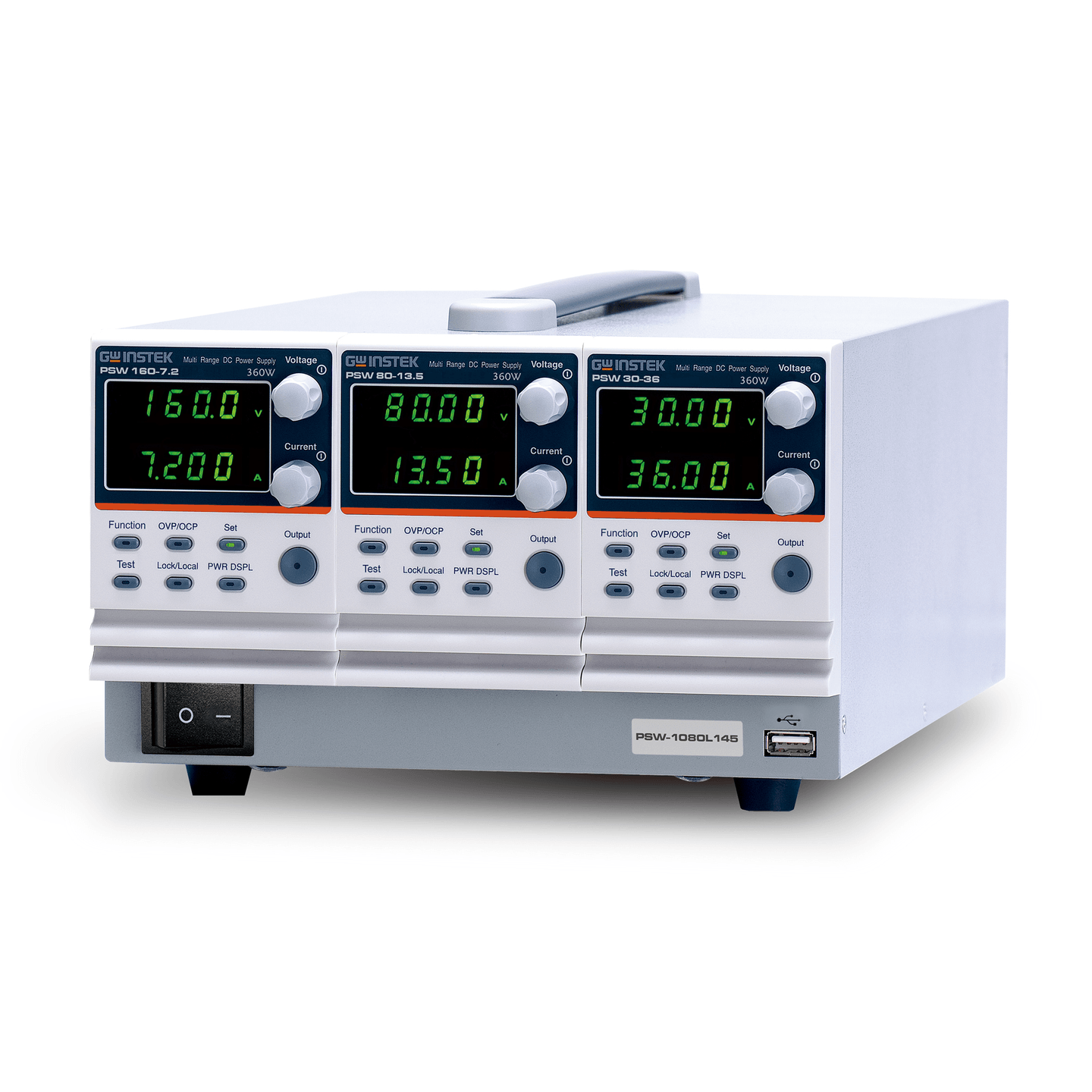

PSW-Multi Series Multi-Channel Programmable DC Power Supply
Brand
GWINSTEK
|
Model
PSW-Multi
|
🇨🇳 China
Dual-channel 720 W or three-channel 1080 W wide-range programmable switching DC power supply with low- and high-voltage module combinations.
Downloads
Out of Stock
Views: 2
Description
The PSW-Multi Series is a multi-channel programmable switching DC power supply platform offering 720 W dual-channel and 1080 W three-channel configurations. It combines low-voltage 30/40/80/160 V modules and high-voltage 250/800 V modules, with an advanced web server for browser control, SCPI commands, one-second data logging and sequence editing. CC/CV priority, adjustable slew rate and bleed circuit support demanding automated tests.
Specifications
- Output TypeDual-channel or three-channel wide-range programmable switching DC power supply
- Rated Power720 W (dual channel) / 1080 W (three channel)
- Channels2 / 3
- Low-Voltage Modules30 V / 40 V / 80 V / 160 V
- High-Voltage Modules250 V / 800 V
- Same-Voltage Channel Output Delay<0.1 ms
- Web ServerSCPI commands / browser control / one-second Data Log / Edit Sequence
- CommunicationLAN / USB / external analog remote control terminal
- Optional InterfacesGPIB-USB adapter / RS232-USB cable
Features
- ChannelsDual or three channel
- Wide-Range OutputFlexible voltage/current ranges at the same rated power
- Advanced Web ServerSCPI, browser control, Data Log and Edit Sequence support
- CC/CV PrioritySuitable for battery, LED and capacitive-load testing
- Adjustable Slew RateVoltage/current rise and fall rate control
- Bleed CircuitAccelerates output voltage fall time
- Automatic Test SequenceSequences can be stored on USB drive and executed automatically
- Software SupportLabVIEW Driver and Data Logging PC software support
Attributes
- Rack Size720 W / 1080 W in 1/3 and 1/2 rack mount sizes (EIA/JIS)
- Operating Temperature0~50 °C
- Operating Environment Humidity20%~85% RH
- Altitude LimitBelow 1,000 m
- Power SupplyAC 100~240 V ±10%, 47~63 Hz
- 720W Ordering ModelsPSW-720L11, PSW-720L12*, PSW-720L14*, PSW-720L15*, PSW-720L22, PSW-720L24*, PSW-720L25*, PSW-720L44, PSW-720L45*, PSW-720L55, PSW-720H66, PSW-720H68*, PSW-720H88
- 1080W Ordering ModelsPSW-1080L111, PSW-1080L112*, PSW-1080L114*, PSW-1080L115*, PSW-1080L122*, PSW-1080L124*, PSW-1080L125*, PSW-1080L144*, PSW-1080L145*, PSW-1080L155*, PSW-1080L222, PSW-1080L224*, PSW-1080L225*, PSW-1080L244*, PSW-1080L245*, PSW-1080L255*, PSW-1080L444, PSW-1080L445*, PSW-1080L455*, PSW-1080L555, PSW-1080H666, PSW-1080H668*, PSW-1080H688*, PSW-1080H888
