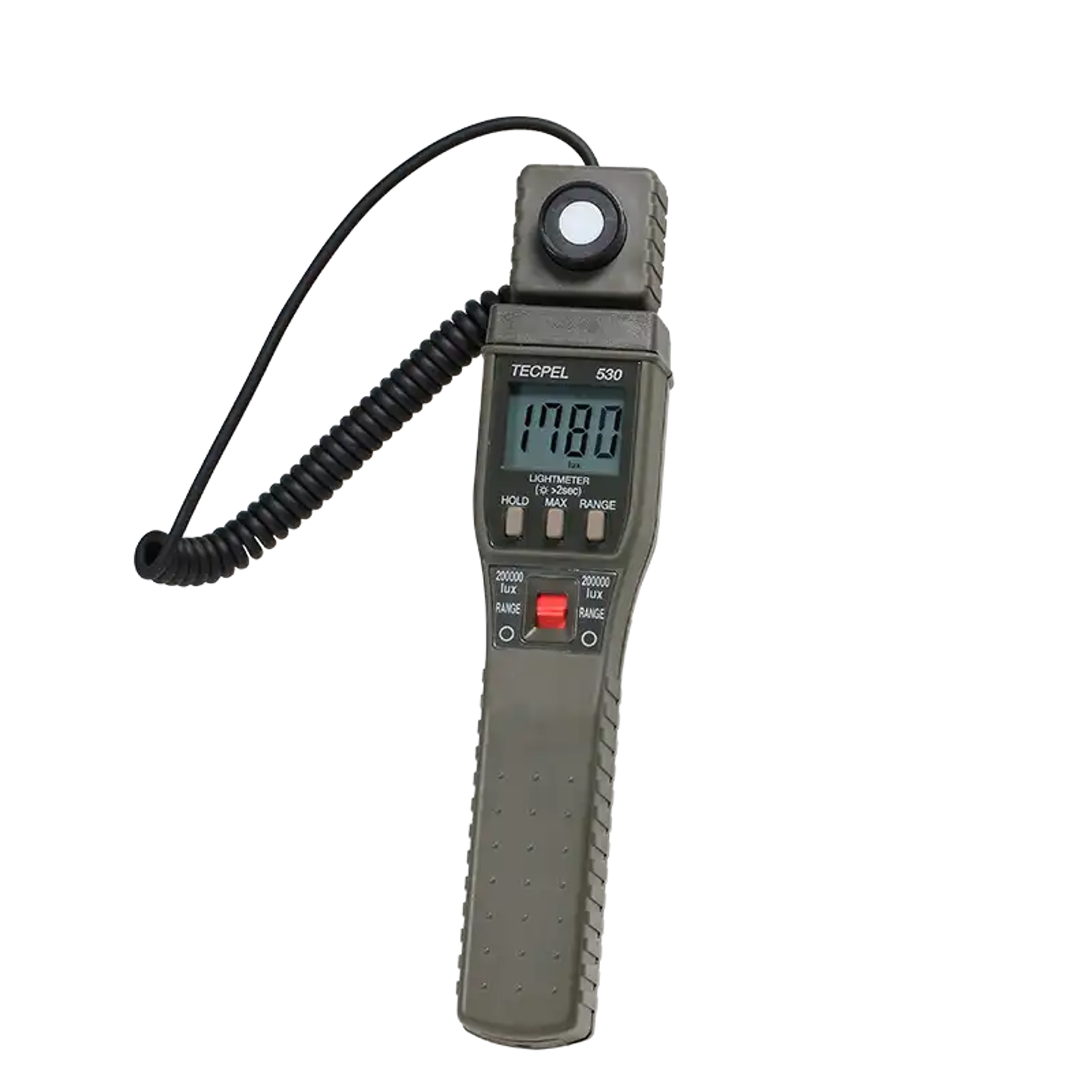

Digital Light meter (Replaced by DLM-530A)
Brand
TECPEL
|
Model
DLM-530
|
🇹🇼 Taiwan
• Maximum measurement range: 199,000 Lux
• Equipped with voltage output function for easy integration with other devices
• High resolution suitable for various lighting conditions
• Accuracy complies with CIE standard light sources
• User-friendly design suitable for various occasions
Out of Stock
Views: 0
Description
The DLM-530 Digital Light Meter is an advanced instrument designed for precise measurement of light intensity in the environment. It can measure light levels of up to 199,000 lux, making it suitable for various lighting conditions, and it can convert measured data into voltage signals for integration with other devices. Whether indoors or outdoors, the DLM-530 helps users accurately monitor light intensity to meet diverse application needs.
Specifications
- Display Digits1,999 digits
- SensorSilicon photodiode
- Illuminance20 / 200 / 2,000 / 20,000 / 200,000 Lux
- Resolutionf’2 < 2% cosine correction within 150°
- AccuracyAt CIE standard light source 2856K: ±(3% + 10 **digits**)
Features
- Signal Output0.1mV / display value
Attributes
- Operating Temperature0~40 °C / 10~90 %RH without condensation
- Storage Temperature-10~40 °C / less than 80 %RH without condensation
- Elevation LimitationBelow 1,000 meters
- Power Supply1.5V AAA alkaline battery x 4
- Dimensions170mm × 44mm × 40mm
- WeightApprox. 220 g (excluding battery)
- AccessoriesCarrying case, AAA alkaline battery x 4, manual
