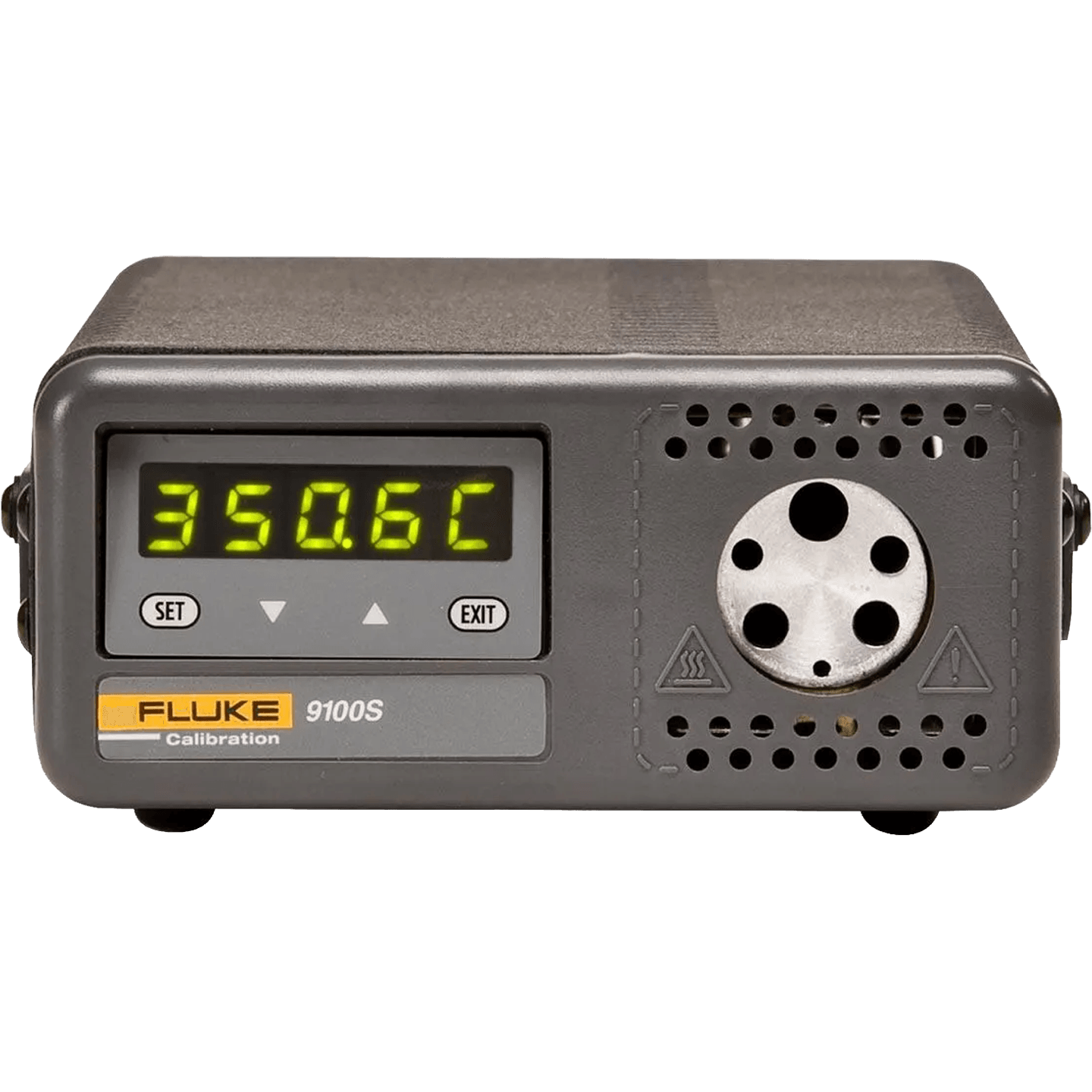

Fluke Calibration 9100S Handheld Dry-Well
Brand
FLUKE
|
Model
Fluke9100S
|
🇺🇸 USA
The Fluke Calibration 9100S dry-well temperature calibrator provides precise temperature control from 35°C to 375°C and is designed for high-reliability calibration requirements.
With high accuracy of ±0.25°C and rapid heating capability, it can reach 375°C in approximately 9.5 minutes, significantly reducing waiting time.
Out of Stock
Views: 3
Description
The Fluke Calibration 9100S Handheld Dry-Well provides precise temperature calibration capabilities ranging from 35°C to 375°C, designed for accurate temperature testing and calibration in industrial environments. This instrument features exceptional accuracy and stability, allowing for flexible use in various application settings, ensuring reliable measurement results.
Specifications
- Temperature Range35 °C to 375 °C (95 °F to 707 °F)
- Accuracy±0.25 °C @50 °C; ±0.25 °C @100 °C; ±0.5 °C @375 °C
- Stability±0.07 °C @50 °C; ±0.1 °C @100 °C; ±0.3 °C @375 °C
- Well-to-Well Uniformity±0.2 °C (using similar-sized sensors at the same depth)
- Heating Time35 °C to 375 °C: approx. 9.5 minutes; ambient to 100 °C: approx. 10 minutes; stabilization time: 5 to 7 minutes
- Test Well DimensionsWell depth: 102 mm (4 in); sensor hole (1.6 mm) depth: 89 mm (3.5 in)
- Sensor TypeThermocouple
Features
- Calibration DataNIST traceable, 50 °C, 100 °C, 150 °C, 200 °C, 250 °C, 300 °C, 375 °C
- Stabilization Time5 to 7 minutes
- NIST Traceable Calibration Data50 °C, 100 °C, 150 °C, 200 °C, 250 °C, 300 °C, 375 °C
Attributes
- Communication InterfaceRS-232 (included)
- DimensionsFrom 1.6 mm to 11.1 mm (including 6.4 mm and 4.8 mm)
- Weight1 kg (2 lb 3 oz)
- Power Supply115 V AC (±10%), 55–65 Hz, 1.5 A or 230 V AC (±10%), 45–55 Hz, 0.8 A, 175 W or 94–234 V AC (±10%), 50/60 Hz, 60 W or 12 V DC
