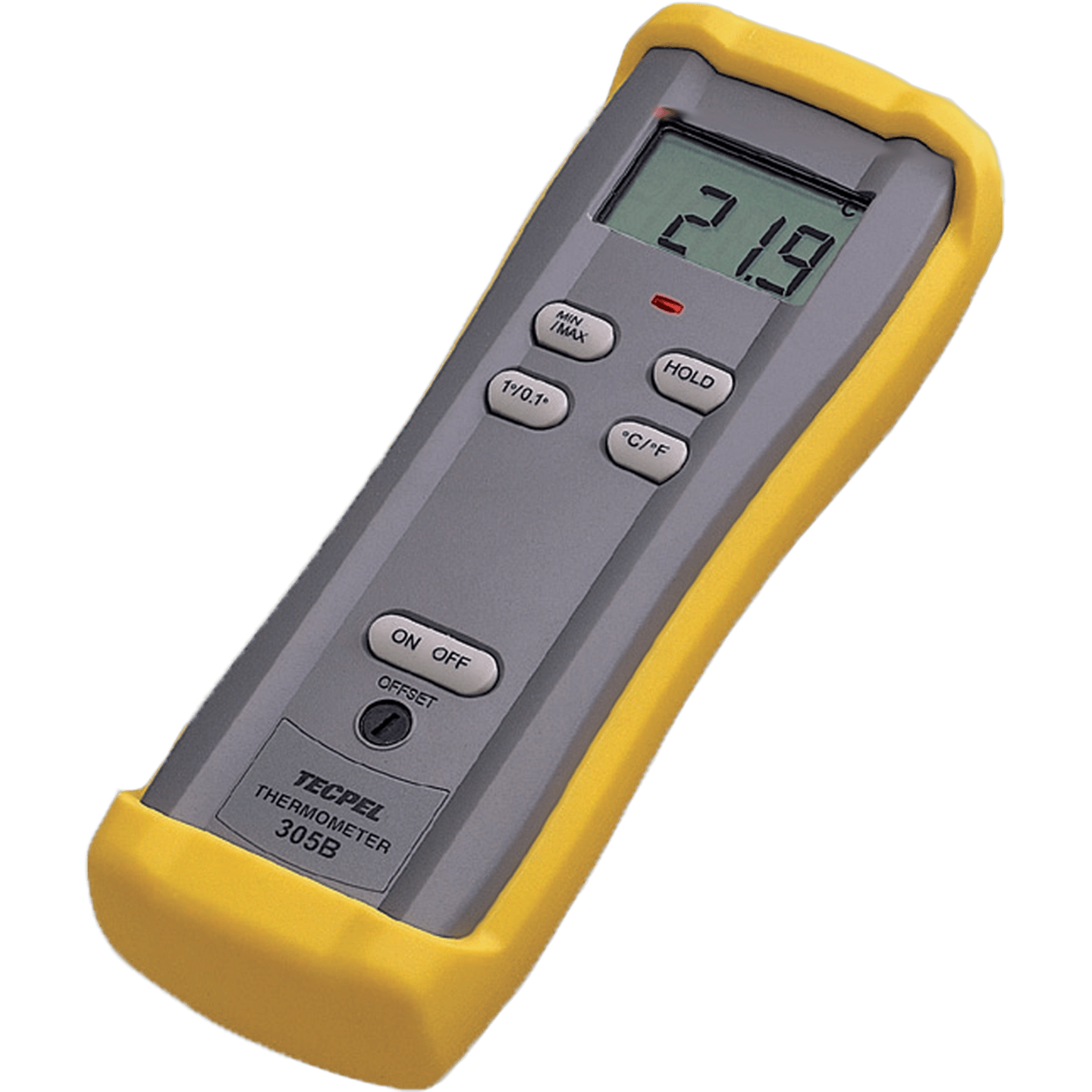

Type-K Thermocouple Thermometer
Brand
TECPEL
|
Model
DTM-305B
|
🇹🇼 Taiwan
The thermocouple thermometer is a temperature measuring instrument with a wide range of applications. It can be connected to various types of thermocouple temperature measuring wires or probes, such as oil temperature, water temperature, object temperature and ambient temperature.
Downloads
Price
NT$ 2,310
Out of Stock
Views: 0
Description
DTM-305B uses a K-type thermocouple temperature measurement probe which can be used for various temperature measurement requirements, suitable for factory inspection and school teaching.
The DTM-305B is an industrial thermometer that is designed for single input temperature measurement. It has a range of -50°C to 1,300°C (-58°F to 2,000°F) and comes with a K-type thermocouple probe connection detector. The meter has a 3 1/2 digit LCD display that shows the temperature readings in °C or °F. The device has a switchable resolution of 0.1° or 1.0°, a front panel offset adjustment and automatic low battery indication. Additionally, the thermometer also has a feature for maximum record and over-range indication.
Specifications
- Temperature Range-50~1,300 °C
- Accuracy±(0.3% + 1 °C)
- Resolution0.1 °C / 1 °C (greater than 200 °C)
- Sensor TypeK-Type
- Display Update400 ms
- Response TimeDepends on the sensing probe/wire
Features
- Sensor Indicator LightRed light when not connected/disconnected
- Temperature Unit SwitchingCelsius °C / Fahrenheit °F
- Protective HolsterYellow
Attributes
- Operating Temperature0~50 °C / less than 90 %RH, non-condensing
- Storage Temperature-10~40 °C / less than 70 %RH, non-condensing
- Altitude LimitationBelow 1,000 meters
- Power Supply9V battery
- Dimensions147 x 70 x 39 mm
- Weight350 g
- AccessoriesThermocouple wire (TPK-01), battery, manual.
