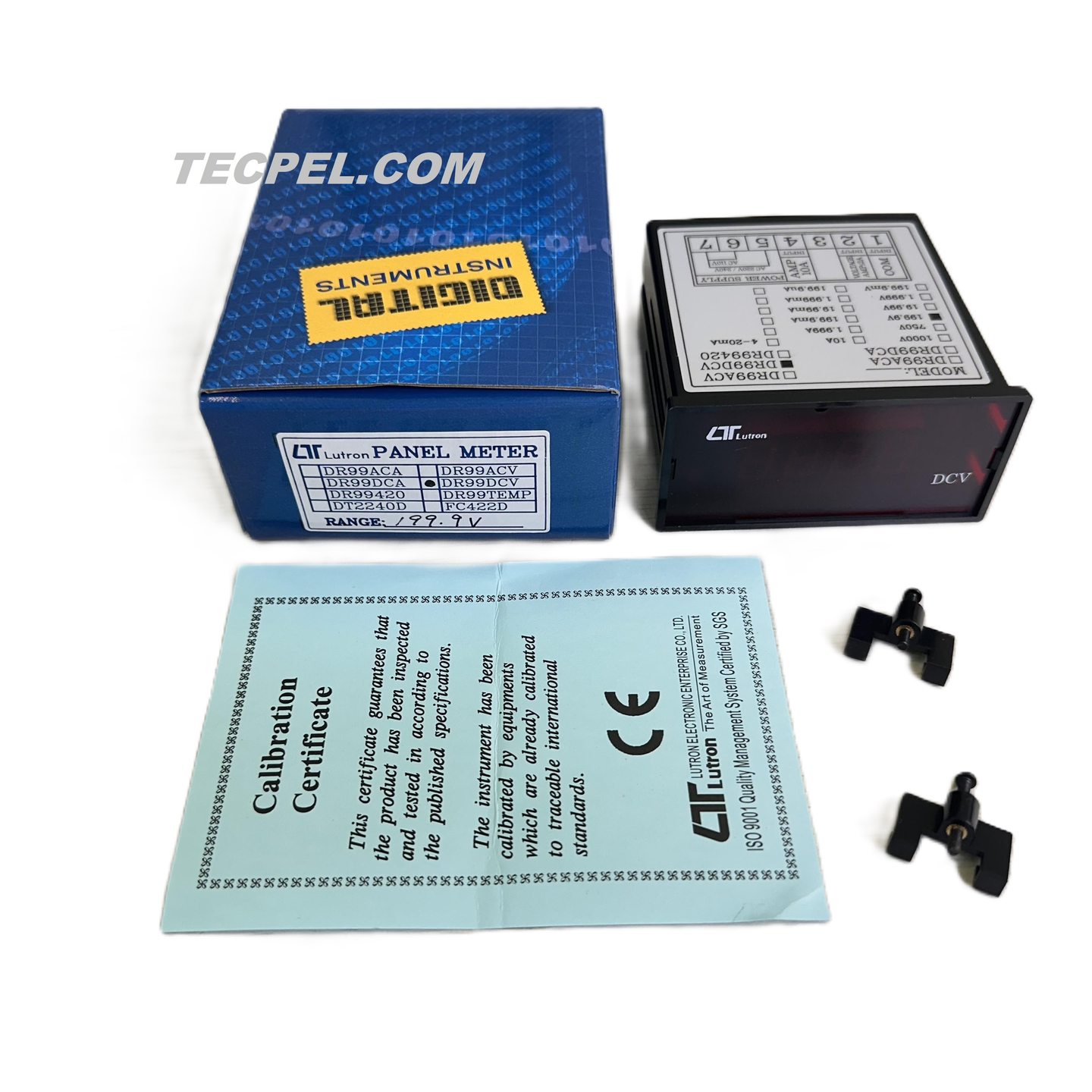

Panel Meters Series
Brand
LUTRON
|
Model
DR-99
|
🇹🇼 Taiwan
The DR99 panel meter series covers a wide range of measurements, ideal for power monitoring and temperature management systems. It features a 14 mm red LED display for clear readings and supports various power supply voltages, making it easy to install.
ð Detailed Model Specifications:
ð DC Voltage Panel Meter – DR-99DCV
Measurement range: 199.9 mV to 600 V DC (5 selectable ranges)
Jumper-selectable ranges for easy configuration.
⚡ DC Current Panel Meter – DR-99DCA
Measures from 199.9 mA to 10 A DC (6 selectable ranges)
Jumper-configurable for flexible application use.
⚡ AC Voltage Panel Meter – DR-99ACV
Voltage range: 199.9 mV to 600 V AC (5 ranges)
Jumper-selectable to suit varied voltage levels.
ð AC Current Panel Meter – DR-99ACA
Current range: 199.9 mA to 10 A AC (6 selectable ranges)
Designed for precise alternating current monitoring.
ð 4–20 mA Loop Panel Meter – DR-99420
Compatible with most standard transducers and transmitters
Built-in Zero VR and Gain VR adjustments for calibration.
ð¡️ Temperature Panel Meter – DR-99TEMP
Temperature range: -50°C to 1300°C
Supports ℃/℉ selection and resolution adjustment (1° or 0.1°)
Jumper-based configuration for unit and precision control.
ð¦ Perfect For:
Process control
Industrial automation
Power systems
Panel integration projects
Price
NT$ 1,260
Out of Stock
Views: 2
Description
The DR99 panel meters are designed for industrial process control and monitoring, with precise voltage, current, and temperature measurement capabilities.
DR-99 Series Panel Meters – Versatile & Reliable Measurement Solutions
✅ Universal Input Options for Industrial Needs
Choose from models tailored for:
DC Voltage (DCV) – Model: DR-99DCV
DC Current (DCA) – Model: DR-99DCA
AC Voltage (ACV) – Model: DR-99ACV
AC Current (ACA) – Model: DR-99ACA
Current Loop (4–20 mA) – Model: DR-99420
Temperature Measurement – Model: DR-99TEMP
Key Features (All Models):
Clear Display: Bright 14 mm red LED, easy to read in all conditions.
Standard DIN Size: 96 x 48 mm front panel, 104 mm depth – ideal for control cabinets.
Power Compatibility: Operates on 110V / 220V / 230V AC.
Certified Quality: ISO-9001 certified, CE marked, and IEC1010 compliant.
Specifications
- ModelDR99DCV, DR99DCA, DR99ACV, DR99ACA, DR99420, DR99TEMP
- Voltage Range1999 mV to 600 VDC/AC
- Current Range1999 mA to 10 A DC/AC
- Temperature Range-50 to 1300°C
- Resolution0.1°C
Features
- Range AdjustmentSupports jumper wire range adjustment
- Display14 mm red LED
- Power Supply110/220/230 VAC
Attributes
- DimensionsDIN 96 x 48 mm
- Depth104 mm
