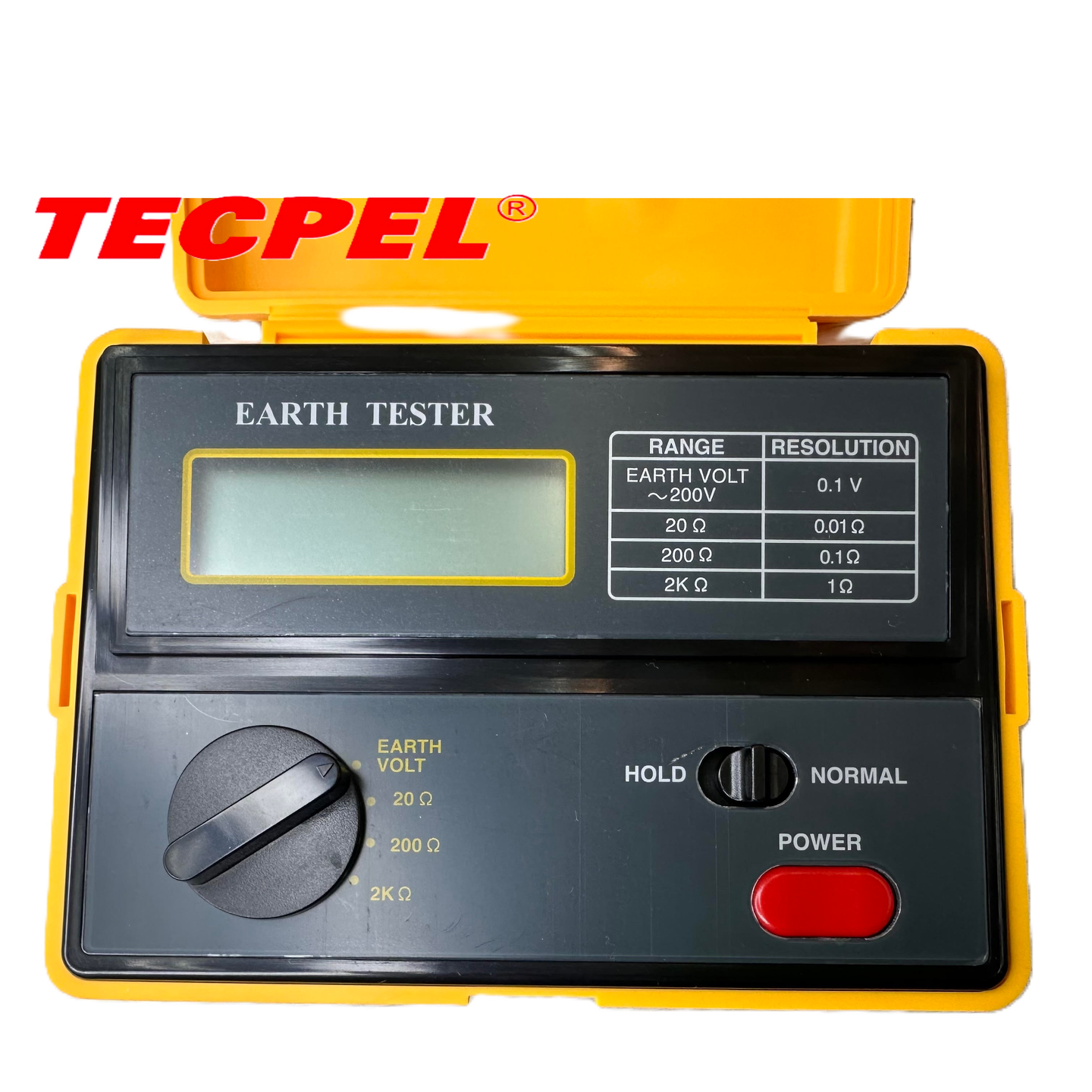

EARTH RESISTANCE TESTER
Brand
LUTRON
|
Model
ET-3000
|
🇹🇼 Taiwan
The ET-3000 is an earth resistance tester from LUTRON, suitable for a variety of earth resistance and earth voltage measurements. This device is accurate and reliable, and is made to last.
FEATURES
* Earth Resistance and Earth Voltage
measurement.
* 3 ranges for earth resistance
measurement 19.99 ohm, 199.9 ohm,
1.999 K ohm.
* 0 to 199.9 V for earth voltage
measurement.
* 18 mm, large size LCD display.
* Data hold.
* Built-in over input indication.
* Durable & portable housing plastic
case with the front protective cover.
* Complete testing accessories included.
Out of Stock
Views: 1
Description
ET-3000 provides accurate measurement of earth resistance and earth voltage. This tester is durable and comes with a full set of testing accessories. It is ruggedly constructed and portable.
Earth Resistance and Earth Voltage measurement.3 ranges for earth resistance measurement: 19.99 ohm, 199.9 ohm, 1.999 K ohm.0 to 199.9 V for earth voltage measurement.18 mm, large size LCD display.Data hold.Built-in over input indication.Durable & portable housing plastic case with the front protective cover.Complete testing accessories included.
Specifications
- Temperature Range0 ~ 50 °C
- Humidity Range10 ~ 80 %RH
- Measuring RangeEarth Resistance: 19.99 ohm, 199.9 ohm, 1.999 K ohm; Earth Voltage: 0 ~ 199.9V
- Response TimeEarth Resistance: 4 seconds; Earth voltage: 1 second
- Display18 mm LCD
Features
- Recording CapacityMax. indication 1999
- Recording IntervalData hold function
- Safety RatingIEC1010
- Power ManagementManual power On/Off or auto power Off within 2 minutes after power On
Attributes
- Power SupplyDC 9V; 1.5V AA (UM-3) batteries×6 PCs
- Dimensions160 x 120 x 65 mm
- WeightApprox. 560g
- AccessoryComplete testing accessories for probe and testing line measurement
