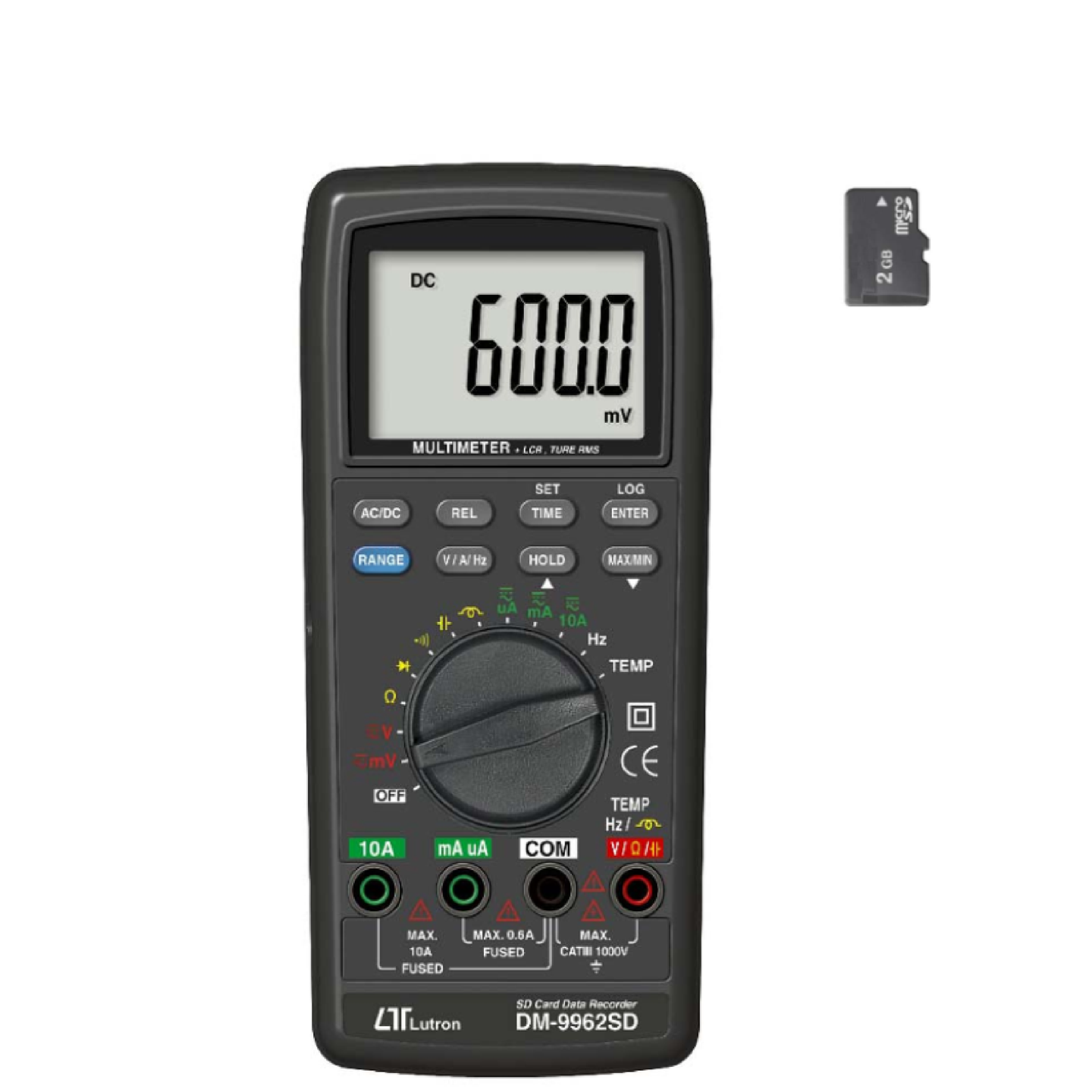

Multifunction Digital Multimeter

Brand LUTRON | Model DM-9962SD | 🇹🇼 Taiwan
Multifunction Digital Multimeter
DM-9962SD - 1
DM-9962SD - 2
The DM-9962SD simplifies complex electrical measurements with the following features: - Real-time data logger - Built-in clock function - Automatic ranging with manual range selection available - True RMS measurement - Max/Min function - Recording intervals up to 3600 seconds - Data hold function
Price NT$ 4,600
Out of Stock
Views: 45

Description

The Lutron DM-9962SD is a high-performance multifunction digital multimeter designed for engineers and technicians, capable of measuring various electrical and temperature parameters. Its built-in real-time data logging feature allows users to easily record and analyze test data, while complying with IEC 1010 CAT III 1000 V safety standards, ensuring safety and accuracy during measurements.

Specifications

  • DC Voltage量測範圍：600mV至1000V，準確度：±(0.5%+2d)
  • AC Voltage量測範圍：600mV至1000V，準確度：±(1%+2d)
  • DC Current量測範圍：600μA至10A，準確度：±(0.5%+2d)
  • AC Current量測範圍：600μA至10A，準確度：±(1%+7d)
  • Resistance量測範圍：600Ω至60MΩ，準確度：±(1%+2d)於600Ω
  • Operating Temperature0 to 50 °C
  • Capacitance量測範圍：600pF至600uF，準確度：±(2.5%+5d)於600pF
  • Inductance量測範圍：600uH至100H，準確度：±(5%+5d)於600uH
  • Frequency量測範圍：600Hz至20MHz，準確度：±(0.5%+2d)

Features

  • 即時數據記錄器是
  • 內建時鐘功能是
  • Auto Range有，手動範圍選擇亦可
  • True RMS有
  • Max/Min有
  • Recording Interval最高3600秒
  • Data Hold有

Attributes

  • Display60 mm x 39 mm large LCD
  • Dimensions190 x 88 x 40 mm
  • Weight387 g (without battery)
  • Power Supply9V battery (006P, MIN1604)
  • Body MaterialABS plastic
  • Operating Temperature0 to 50°C
  • Operating Environment HumidityMax 80% RH
  • Safety RatingRS-232 or USB
