Digital Automotive Multimeter
Brand
TECPEL
|
Model
DMM-8088A
|
🇹🇼 Taiwan
DMM-8088A has three basic functions for measuring voltage、current and resistance, as well as a multifunctional electric meter for True RMS and temperature measurement.
Price
NT$ 2,688
Out of Stock
Views: 0
Description
Digital Automotive Multimeter Three-purpose Electricity Meter Multimeter
Model: DMM-8088A
Heavy Duty Digital Automotive Multimeter DMM-8088A
Autoranging + 20A + Temperature Best Multimeter for Auto Electricians and DIY Configurations
Ideal tool for troubleshooting and repairing electrical problem vehicles.
Model: DMM 8088A Features:
1. 3 3/4 digits, 4000 count display
2. Autoranging of DC/AC voltage, frequency and capacitance.
3. Resistance, diode and continuity test
4. Read the pulse duty cycle and dwell angle of electronic fuel injection
Feedback carburetor and ignition.
5. Sense RPM pickup.
6. Millisecond pulse width test injector opening time, idle air
Control motors and electronic transmission controls.
7. Temperature measurement
8. Maximum/minimum, data hold, zero return (relative reading) functions.
9. Overload protection for all ranges.
Specifications
- DC Voltage±(0.5%+1dgt)
- DC Current±(2.0%+5dgt)
- AC Voltage±(2%)
- AC Current±(2.5%)
- Resistance±(2.0%+4dgts)
- Frequency±(0.1%+4dgts)
- Temperature Range-50 to 1100°C ±(1.0%+2 °C)；-50 to 2000° ±(1.0%+4°C)
- Temperature Deviation-50 to 1100°C ±(1.0%+2 °C)；-50 to 2000° ±(1.0%+4°C)
Features
- RPM Range600 to 4000 low; 1000 to 12000 high
- Platinum Dwell-TesterDwell Angle: 4,5,6,8 Cylinders ±(2.0%+5dgts)
- 佔空比0.0 to 90.0% ±(2.0%+5dgts
- Diode TestDiode Test 0.6mA typical ± (2.0%+4dgts)
- ms Pulse Width:0.1ms to 10.0ms ±(2%+0.2ms)
- ContinuityAudible Continuity Open circuit voltage:0.4V DC, Audible threshold:Overload protection: 1000VDC or 750VAC RMS for DC/AC Voltage;
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 9V Battery X1
- Dimensions2""x3.8""x7.9"" (52x96x200mm)
- Weight17.5oz(495g) including battery

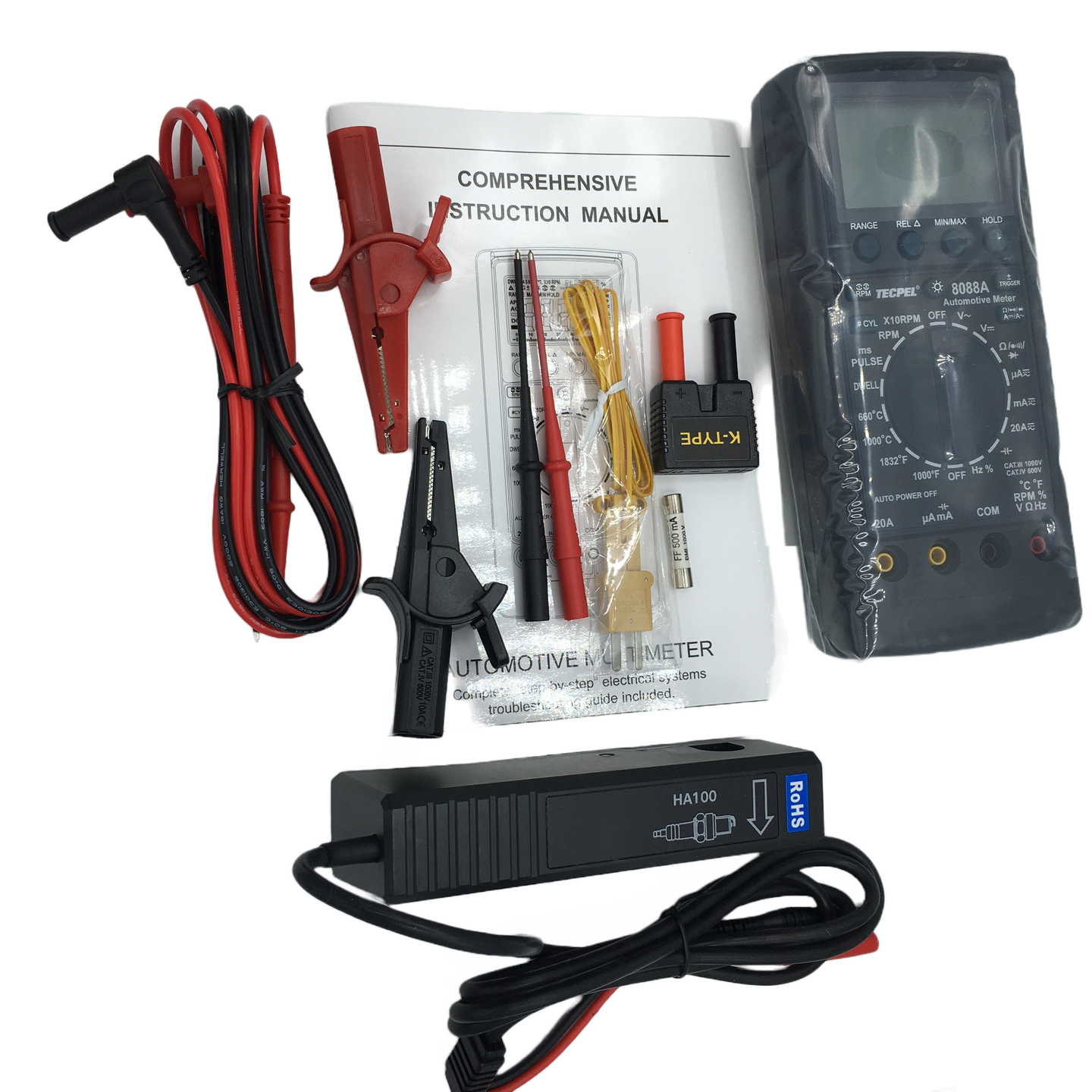

- AccessoryTesting Lead、Battery、Temperature Sensor、Manual 、Pulse detection hook
