Digital Multimeter
Brand
TECPEL
|
Model
DMM-125
|
🇹🇼 Taiwan
The DMM-125 can measure the following three functions:
- DC Voltage
- AC Voltage
- Current
This multimeter is user-friendly and ideal for electrical maintenance and repair.
Out of Stock
Views: 0
Description

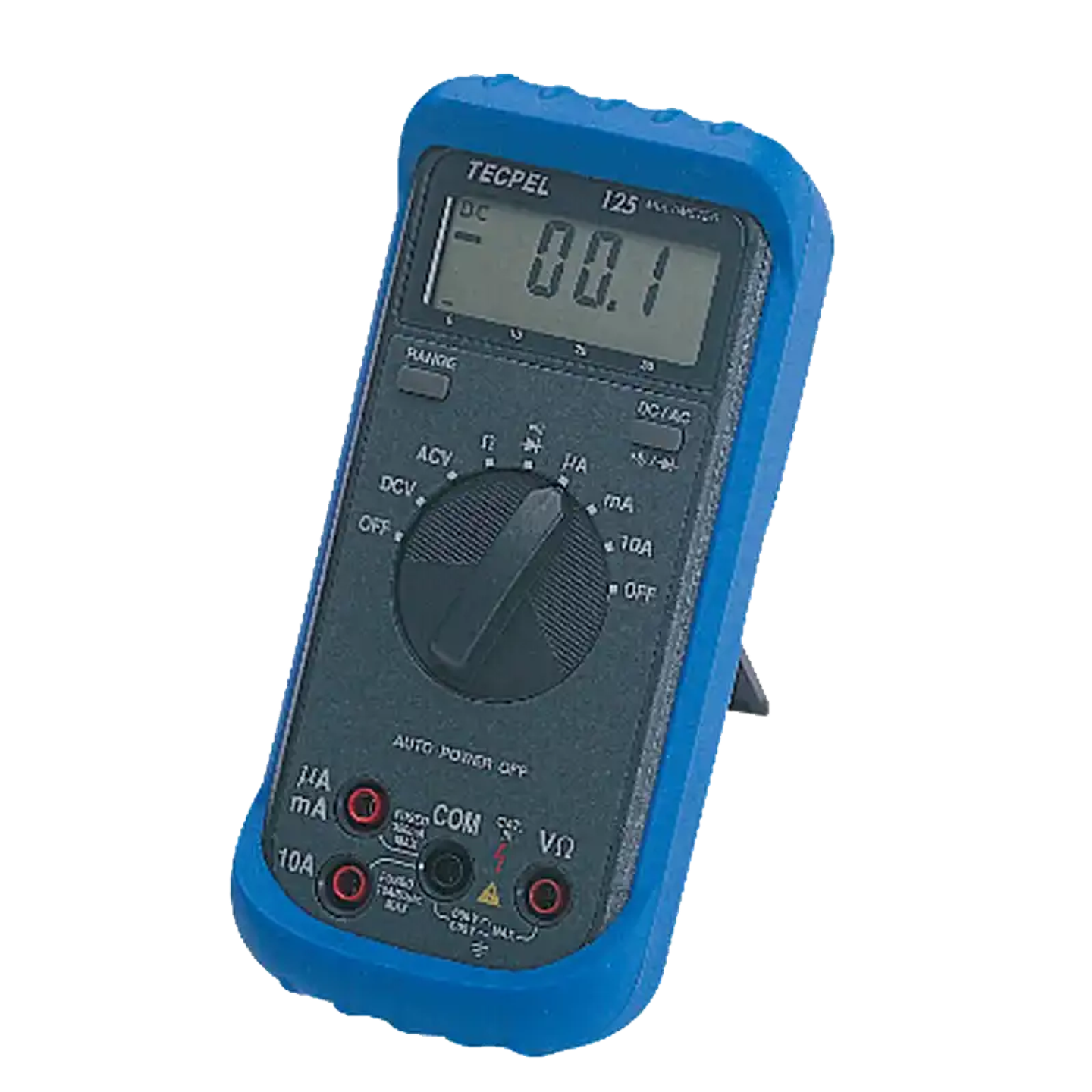

The DMM-125 Digital Multimeter is a handheld 3 1/2 digit multimeter known for its high stability and accuracy, making it ideal for maintenance and repair of circuits and electrical equipment. It measures voltage, current, and resistance, and is easy to operate, making it suitable for both beginners and professionals. It is the perfect measuring instrument for a wide range of users.
Specifications
- Display counts1,999 counts
- DC voltage±(1.2%+1)
- AC voltage±(2.0%+4)
- Resistance±(1.0~2.0%+4)
- Capacitance20uF / 200uF / 2,000uF / 20mF
- Frequency±(0.1% + 2)
- Type K temperature-20 ~ 750 °C
- Temperature error±(3%+2 °C)
Features
- 顯示位數Display digits
- 直流電壓精度DC voltage accuracy
- 交流電壓精度AC voltage accuracy
- 電阻精���Resistance accuracy
- 電容範圍Capacitance range
- 頻率精度Frequency accuracy
- K型溫度範圍Type K temperature range
- 溫度誤差Temperature error
- 1,999 顯示1,999 display
- ±(1.2%+1)±(1.2%+1)
- ±(2.0%+4)±(2.0%+4)
- ±(1.0~2.0%+4)±(1.0~2.0%+4)
- 20uF / 200uF / 2,000uF / 20mF20uF / 200uF / 2,000uF / 20mF
- ±(0.1% + 2)±(0.1% + 2)
- -20 ~ 750 °C-20 ~ 750 °C
- ±(3%+2 °C)±(3%+2 °C)
Attributes
- Operating Temperature-10~40 °C / below 75%RH and no condensation
- Storage Temperature0~50 °C / below 75%RH and no condensation
- Altitude Limitbelow 1,000 m
- Power SupplyDC 9V battery
- Dimensions147 × 70 × 39 mm
- Weightapprox. 340 g (battery not included)
- Accessoriestest leads, battery, protective pouch, K-type temperature probe, instruction manual
