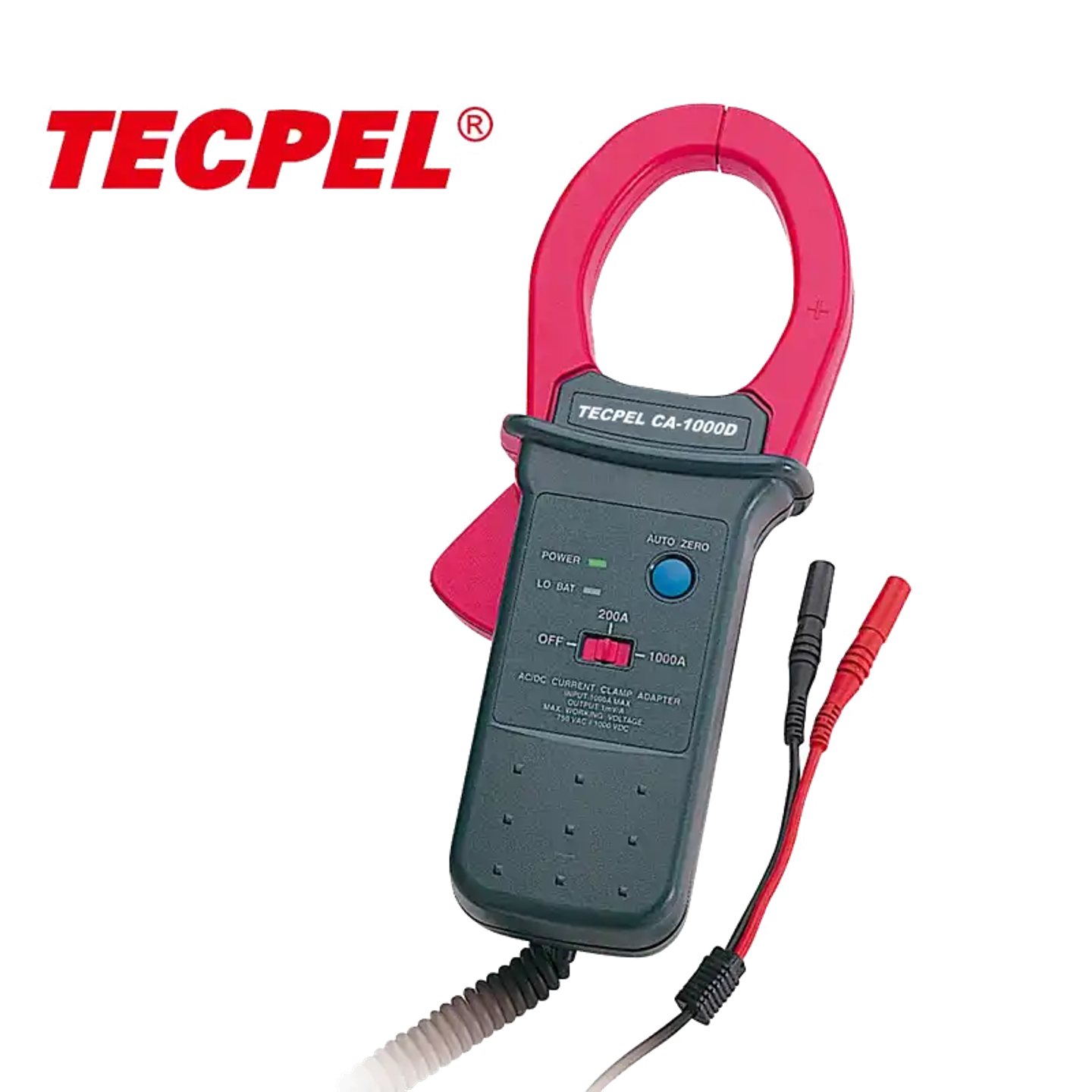

1000A current clamp part AC DC current clamp part
Brand
TECPEL
|
Model
CA-1000D
The CA-1000D current clamp part supports AC and DC current measurement,
can convert current values to voltage output,
and connects to a digital multimeter or oscilloscope.
Input impedance is 1MΩ,
measurement range is up to 200A / 1000A,
jaw opening is 57mm,
signal output is 1mV / 1A,
accuracy is ±(1.5%~3.5%) +3A,
frequency range is 50~400 Hz.
Out of Stock
Views: 2
Description
Product: CA-1000D, Field: Function Introduction
The CA-1000D current clamp is a high-performance measurement tool designed to convert AC and DC current into a voltage output, making it convenient for downstream equipment such as digital multimeters or oscilloscopes to display and analyze data. With a jaw opening of 57mm, it can easily clamp onto various conductors and provides high-precision measurement capability. It is an essential tool for power engineering and maintenance personnel.
Specifications
- Measurement range200A / 1000A
- Jaw opening57mm
- Signal output1mV / 1A
- Accuracy±(1.5%~3.5%) +3A
- Frequency range50~400 Hz
Features
- 輸入阻抗Input impedance
- 1MΩ1MΩ
Attributes
- Operating temperature0~40 °C / 30~80%RH non-condensing
- Storage temperature-10~50 °C / 35~70%RH non-condensing
- Altitude limitBelow 1,000 meters
- Safety ratingIEC 1010-1, IEC 1010-2-032, UL, CE certified
- Power supplyDC 9V battery
- Dimensions (W x D x H)244 x 100 x 40 mm
- AccessoriesBattery, instruction manual
