AFG-2112 12MHz Dual-Channel Arbitrary Function Generator

Brand GWINSTEK | Model AFG-2112 | 🇨🇳 China

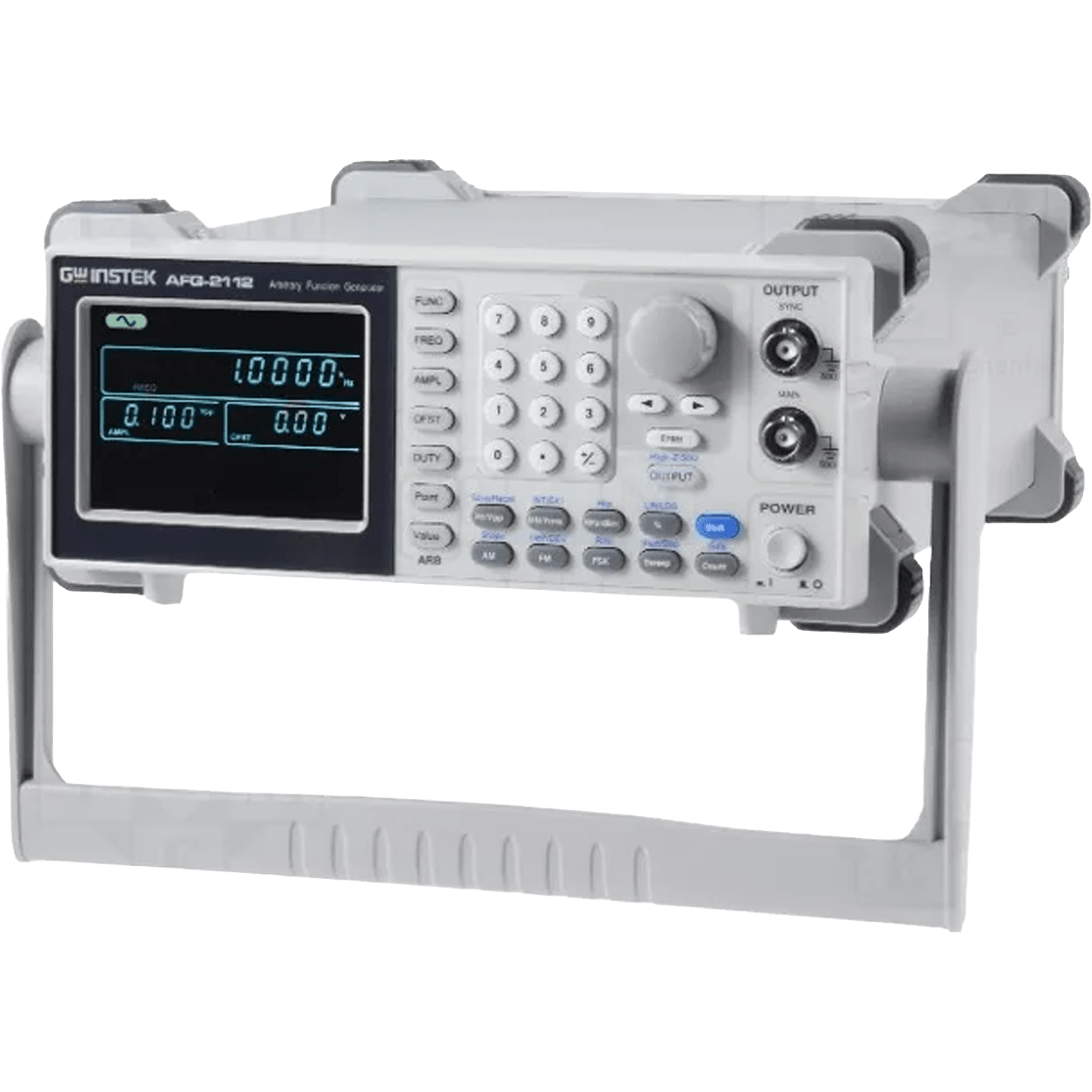

AFG-2112 12MHz Dual-Channel Arbitrary Function Generator
• Dual-channel independent control with maximum frequency up to 12MHz • 1uHz frequency resolution for precise signal output • Built-in multiple waveforms including sine, square, triangle, and arbitrary waveforms • Supports various modulation modes such as AM, FM, PM, and FSK • 120MSa/s sampling rate and 10-bit resolution • 3.5-inch color LCD display with WYSIWYG editing • USB Host/Device interface for easy connectivity with other devices
Out of Stock
Views: 53

Description

The AFG-2112 is a dual-channel 12MHz arbitrary function signal generator that utilizes advanced DDS technology to provide a frequency range of up to 12MHz with a frequency resolution of 1uHz. This signal generator features two independently controllable channels capable of outputting various waveforms including sine, square, triangle, and arbitrary waveforms, making it suitable for communication, testing, and other electronic applications. With built-in editing capabilities for up to 66 different function waveforms, it supports modulation modes such as AM, FM, PM, and FSK to meet diverse needs.

Specifications

  • Display4.3
  • Sound Frequency1uHz~12MHz
  • Channels2通道
  • Sampling Rate1.2GS/s, 300MS/s(DDS模式)
  • Accuracy±20 ppm
  • Signal OutputSine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arb, AM、FM、ASK、FSK
  • Resolution16位元
  • Sine Wave1μ~25M Hz
  • Square Wave1μ~25M Hz
  • FrequencyPeriod 40ns~2000s, Pulse Width 20ns~1999.9s, Overshoot <5%, Jitter 20ppm +10ns
  • Triangle Wave1μ~3M Hz
  • Harmonics1μ~25M Hz
  • Waveform1μ~15M Hz
  • Sound Level25M Hz (-3dB)
  • Internal I/O Frequency Range10MHz±50Hz
  • Output VoltageTTL兼容
  • External I/O Frequency Range10MHz±50Hz
  • External I/O Impedance50Ω

Features

  • Waveform7種標準波型
  • Overshoot< 2%
  • Duty Cycle0.001% ~ 99.999%
  • Symmetry週期 1% + 4ns
  • CommunicationUSB Host、USB Device
  • Interface英/中
  • Frequency1uHz ~ 12MHz
  • Input Coupling交流/直流

Attributes

  • Operating Temperature0 to 40 °C / lower than 90%RH without dew。
  • Storage Temperature-20 to 60 °C / lower than 60%RH without dew。
  • Altitude LimitLower than 2,000 meters
  • Power SupplyAC100 to 240V，50/60Hz , 100 ~ 120Vrms (± 10%), 400 Hz
  • Dimensions266(W) x 107(H) x 293(D) mm
  • WeightApprox. 2.5kg
  • AccessoriesGTL‐101× 2, Quick Start Guide ×1 CD (user manual + software) ×1 Power cord×1
