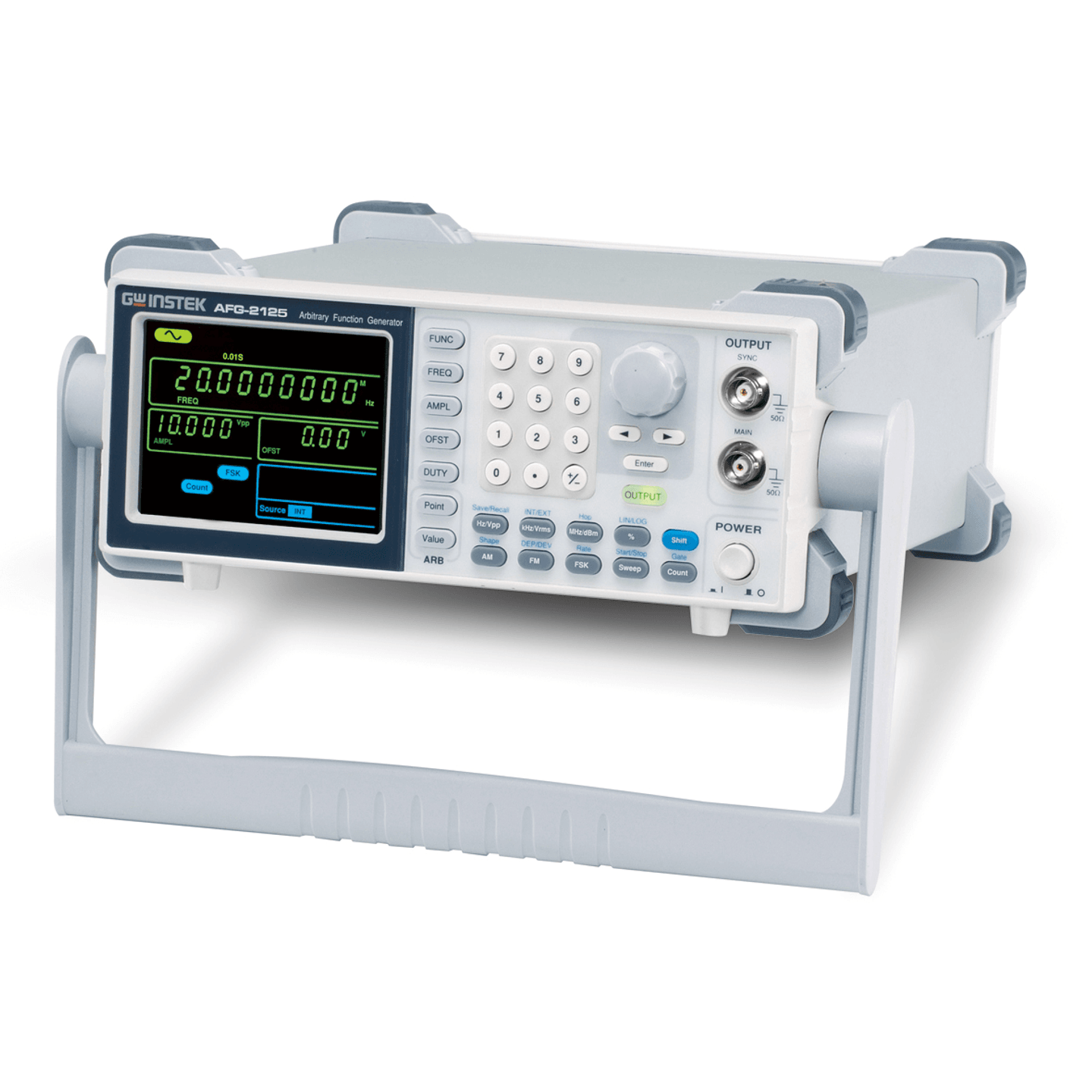

AFG-2105 Arbitrary Function Generator
Brand
GWINSTEK
|
Model
AFG-2105
|
🇨🇳 China
• Frequency range: 0.1Hz to 5MHz
• Supports multiple waveforms: sine, square, triangle, noise, and arbitrary waveforms
• Sampling rate up to 20MSa/s with 10-bit resolution
• AM/FM/FSK modulation capabilities
• Duty cycle adjustable from 0.001% to 99.999%
• 3.5-inch LCD screen for clear display
• USB communication interface for convenient remote control
• TTL compatible output voltage
• Built-in waveform editing function for custom waveform usage
Out of Stock
Views: 48
Description
The AFG-2105 arbitrary function generator offers a frequency range of up to 5MHz, making it suitable for various electronic testing and development applications. Utilizing advanced DDS technology, it provides multiple waveform outputs including sine, square, triangle, noise, and arbitrary waveforms. The built-in waveform editing function allows users to create custom waveforms, with capabilities for AM, FM, and FSK modulation to meet diverse testing needs. The interface features a 3.5-inch LCD screen and supports USB communication for easy remote control and editing from a computer. The AFG-2105 is an ideal choice for electronic engineers and researchers.
Specifications
- Display3.5
- Sound Frequency0.1Hz~5MHz
- Channels1通道
- Sampling Rate20MSa/S
- Accuracy±20 ppm
- Signal Output正弦波、方波、三角波、雜訊波、任意波
- Waveform Update Rate10MHz
- Sine Wave0.1Hz ~ 3MHz
- Square Wave0.1Hz ~ 3MHz
- Triangle Wave0.1Hz ~ 3MHz
- Waveform0.1Hz ~ 3MHz
- Sound Level3MHz (-3dB)
- Internal I/O Frequency Range3MHz ± 50Hz
- Output VoltageTTL兼容
- External I/O Frequency Range3MHz ± 50Hz
- External I/O Impedance50Ω
Features
- Waveform正弦波、方波、三角波、雜訊波、任意波 5 種標準波型
- Overshoot< 2%
- Duty Cycle0.001% ~ 99.999%
- Symmetry週期 1% + 4ns
- CommunicationUSB Host、USB Device
- Interface英/中
- Frequency0.1Hz to 5MHz
- Input Coupling交流/直流
Attributes
- Operating Temperature0 to 40 °C / lower than 90%RH without dew。
- Storage Temperature-20 to 60 °C / lower than 60%RH without dew。
- Altitude LimitLower than 2,000 meters
- Power SupplyAC100 to 240V，50/60Hz , 100 ~ 120Vrms (± 10%), 400 Hz
- Dimensions266(W) x 107(H) x 293(D) mm
- WeightApprox. 2.5kg
- AccessoriesGTL‐101× 2, Quick Start Guide ×1 CD (user manual + software) ×1 Power cord×1
