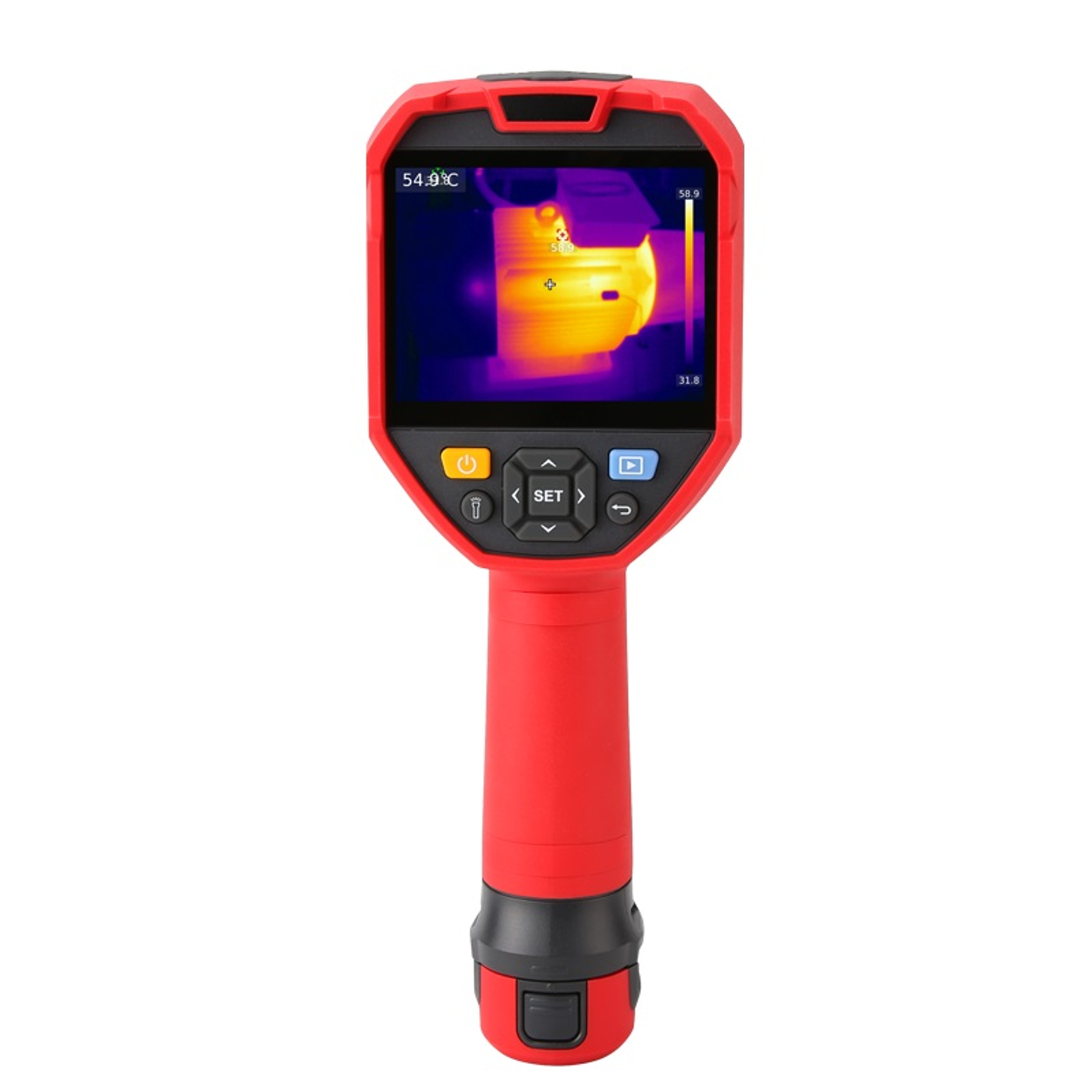

UTi730E Infrared Thermal Imaging camera

Name: UNI-T UTi730E Infrared Thermal Imaging camera
Brand: UNI-T
SKU: UTi730E
Price: 19000 TWD
Availability: OutOfStock

Brand UNI-T | Model UTi730E | 🇨🇳 China

Enhanced Thermal Camera UTi730E is an advanced thermal camera. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time. Features : 3.5”IPS display screen (640×480 Pixels) IR resolution: 320×240 Temperature measurement range: -40℃to 400℃ / -40℉ to 752 ℉ Auto alarm for high/low temperature Auto tracking for hot spot/cold spot On screen analyzer :5 Points/1 Line/3 Rectangles/3 Circles Image capture Digital camera resolution: 2MP Digital zoom: 2x, 4x Image modes: Thermal,Visual image,Fusion,PIP Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava) Isotherm(Auto/Ratio/Below/Above/Section/Manual) LED flashlight QR Code – photo management PC software: analysis and real-time image projection 5200mAh replaceable battery pack (Type-C rechargeable) 1/4”tripod mounting hole IP54 2m drop proof

Price NT$ 19,000

Out of Stock

UTi730E is an infrared thermal imager that combines surface temperature measurement and real-time thermal images, clearly displayed on the screen through the thermal imager. With infrared and visible light lenses, the temperature measurement range is --40℃~400℃. To meet more measurement needs, thermal imaging pixels 320x240(76800) make it easier to find abnormal temperature points, built-in high-brightness lights, using new The first-generation sensor module ensures excellent infrared resolution and rich color palette modes, which can meet the requirements of various imaging and shooting modes. Take pictures and save them to an SD card. PC software can be used for image analysis and processing to generate reports, and it is equipped with PC software real-time projection function, with IP54 protection level, 2 meters drop resistant, and durable! Infrared_thermometers_vs_thermal_imaging_cameras.html

Temperature Range-40℃~400℃
Resolution0.1℃
Accuracy±2°C or ±2% whichever is greater
Lens field of view (FOV)56° x 42°
Wavelength Range8 to 14μm

DisplayThermal image, hybrid, visible light, PIP
Display Color Palette 7 choicesIron Red, Rainbow, White Hot, Red Hot, Black Hot, Molten Metal, Rainbow
Emissivity0.01 to 1.00 (Adjustable)
focal lengthfree focus
Use time about 3 hoursincrease or decrease according to the operation method
