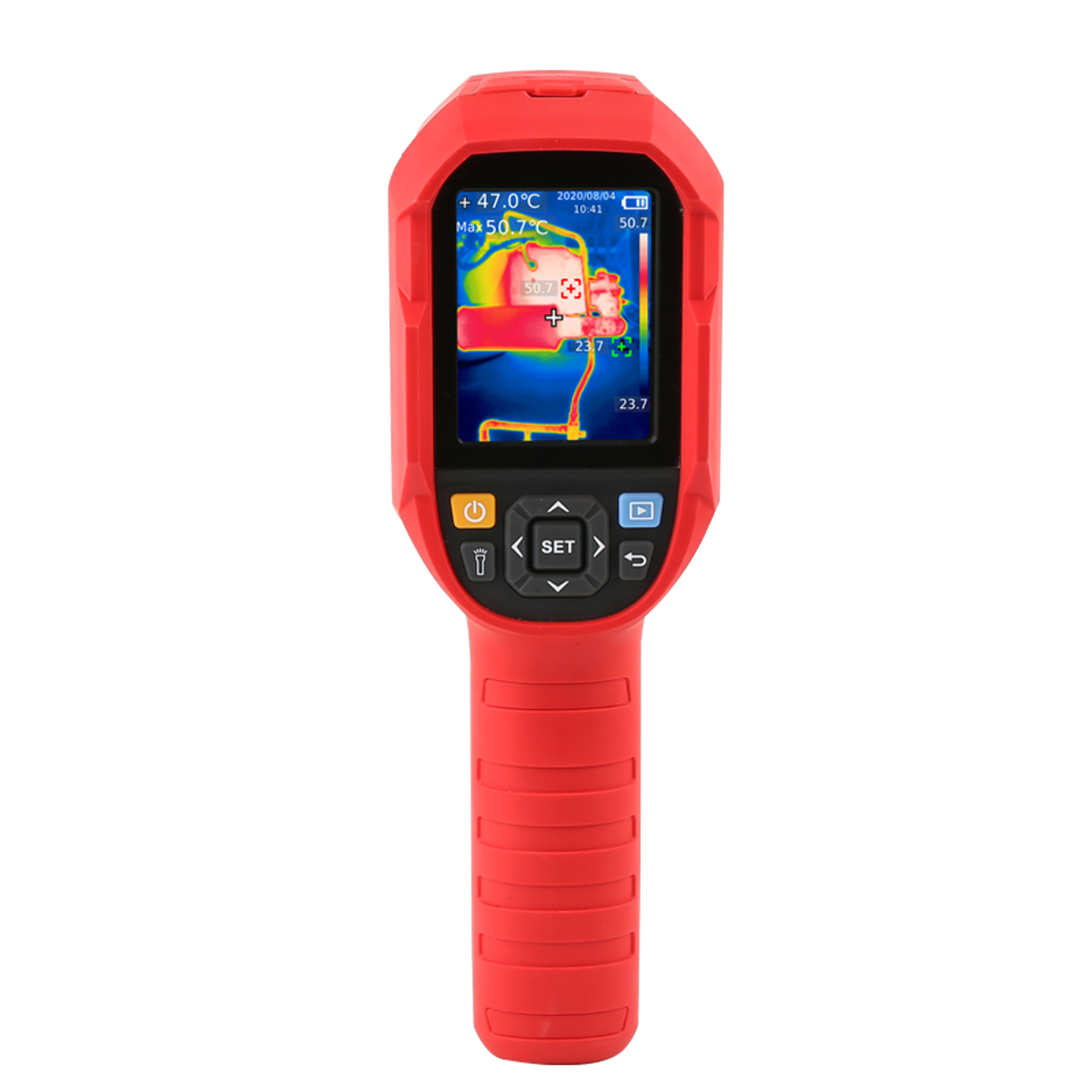

Infrared Thermal Imager
Brand
UNI-T
|
Model
UTi260B
|
🇨🇳 China
UTi260B is an infrared thermal imager that combines surface temperature measurement and real-time thermal images, clearly displayed on the screen through the thermal imager. With infrared and visible light lenses, the temperature measurement range is -20 ° C ~ 550 ° C. To meet more measurement needs, thermal imaging pixels 256 x 192 (49152) make it easier to find abnormal temperature points, built-in high-brightness lights, using new The first-generation sensor module ensures excellent infrared resolution and rich color palette modes, which can meet the requirements of various imaging and shooting modes. Please take pictures and save them to an SD card. PC software can be used for image analysis and processing to generate reports, and it is equipped with a real-time projection function, with IP65 protection level, 2 meters drop resistant, and durable!
Price
NT$ 9,900
Out of Stock
Views: 0
Description
UTi260B is an infrared thermal imager that combines surface temperature measurement and real-time thermal images, clearly displayed on the screen through the thermal imager. With infrared and visible light lenses, the temperature measurement range is -20 ° C ~ 550 ° C. To meet more measurement needs, thermal imaging pixels 256 x 192 (49152) make it easier to find abnormal temperature points, built-in high-brightness lights, using new The first-generation sensor module ensures excellent infrared resolution and rich color palette modes, which can meet the requirements of various imaging and shooting modes. Take pictures and save them to an SD card. PC software can be used for image analysis and processing to generate reports, and it is equipped with PC software real-time projection function, with IP65 protection level, 2 meters drop resistant, and durable!
Specifications
- Temperature Range-20~550℃
- Resolution0.1℃
- Accuracy±2°C or ±2% whichever is greater
- Lens field of view (FOV)56° x 42°
- Wavelength Range8 to 14μm
Features
- DisplayThermal image, hybrid, visible light, PIP
- Display Color Palette 7 choicesIron Red, Rainbow, White Hot, Red Hot, Black Hot, Molten Metal, Rainbow
- Emissivity0.01 to 1.00 (Adjustable)
- focal lengthfree focus
- Use time about 6 hoursincrease or decrease according to the operation method
Attributes
- Operating Temperature0 to 45°C / lower than 80%RH Non-Condensing。
- Storage Temperature-20 to 60°C / lower than 70%RH Non-Condensing。
- Transmission CableType-C USB data cable
- Power SupplyLithium battery (3.6V 5000mAh)
- Dimensions36mm x 75.5mm x 86mm
- WeightApprox. 910g
- AccessoryMicro SD card, Type-C USB data cable, manual
