Switching DC Power Supply

Brand UNI-T | Model UTP1310 | 🇨🇳 China
Switching DC Power Supply
UTP1310 - 1
UTP1310 - 2
UTP1310 - 3
UTP1310 - 4

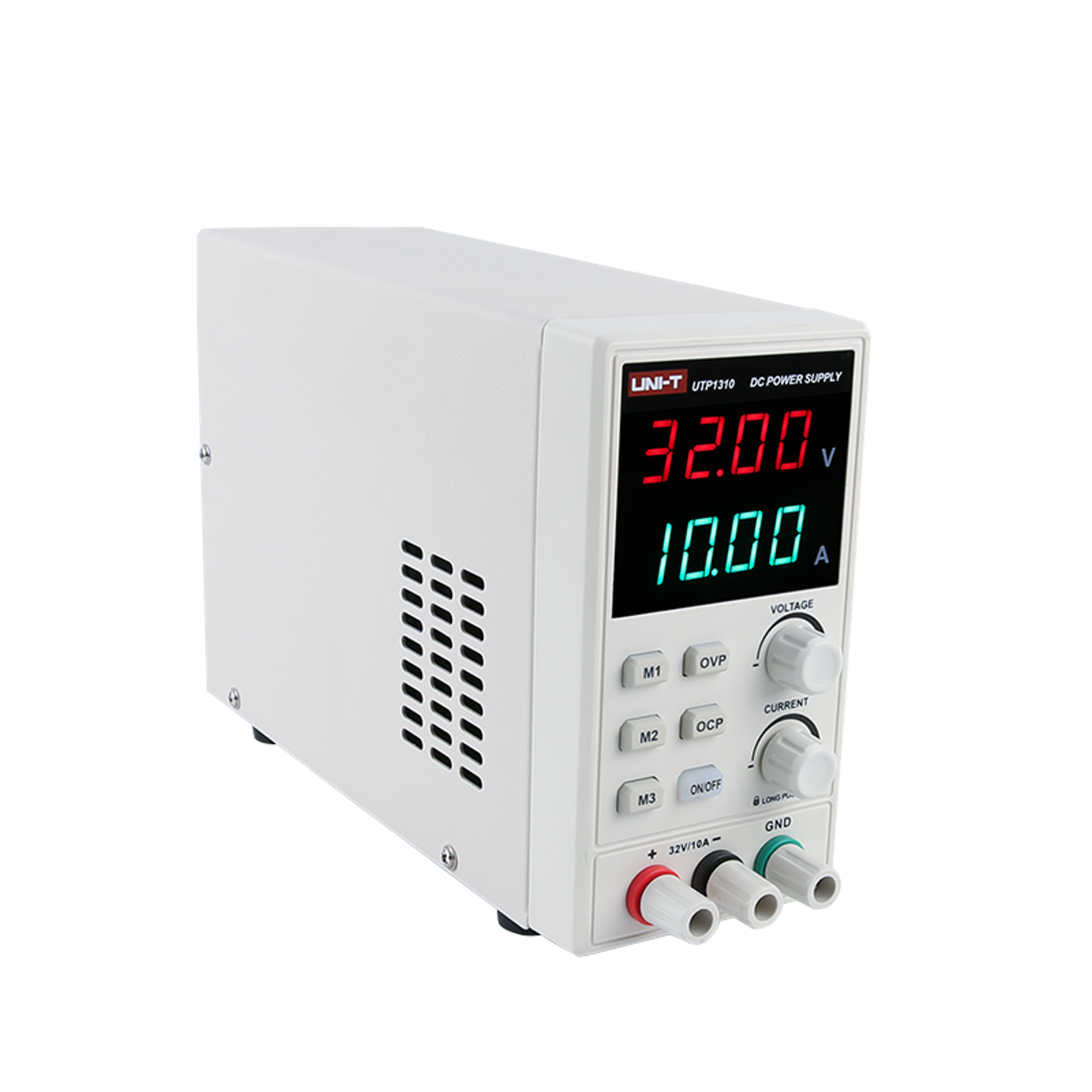

The UTP1310 is a high-quality, highly stable, economical DC power supply launched by UNI-T, providing an output voltage of 0 ~ 32 V and an output current of 0 ~ 10 A. It features a 4-digit LED display, overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), and fast storage of three preset settings. With excellent stability and reliability, it is an ideal tool for schools, production lines in enterprises, and appliance repair service centers.
Downloads
Out of Stock
Views: 63

Description

The UTP1310 is a cost-effective DC power supply with 0~32V voltage and 0~10A current output, featuring precise display and triple protection functions (OVP/OCP/OTP), as well as support for switching between three preset parameter groups and automatic constant voltage/constant current adjustment. Suitable for education, industry, repair, and R&D applications, it is stable, reliable, and safe and convenient to operate.

Specifications

  • Display4-digit LED display
  • Output Voltage0~32V ≤0.01%+5mV
  • Voltage Ripple10mVrms
  • Voltage Resolution10mV
  • Output Current0~10A ≤0.2%+3mA
  • Current Ripple5mArms
  • Current Resolution1mA
  • Maximum Output Power320W

Features

  • High-precision 4-digit voltage/current displayYes - real-time LED digital display
  • Encoder AdjustmentYes - rotary control
  • Over Voltage Protection (OVP)Yes - adjustable from 0~32V
  • Over Current Protection (OCP)Yes - adjustable from 0~10A
  • Over Temperature Protection (OTP)Yes - automatic thermal protection
  • Keypad LockYes - press and hold the lock button
  • Three Preset Storage/RecallYes - M1, M2, M3 memory buttons
  • Independent Output SwitchYes - controlled by ON/OFF button
  • Operating ModeAutomatic switching between constant voltage (CV) and constant current (CC) modes
  • Output TerminalsRed (+) positive, black (-) negative, green (GND) ground

Attributes

  • Operating Environment0~40 °C / less than 85 %RH (non-condensing)
  • Storage Environment-10~50 °C / less than 90 %RH (non-condensing)
  • Cooling MethodNatural convection cooling
  • Insulation ProtectionDouble-insulated design
  • Body MaterialHigh-strength plastic
  • Power SupplyAC 110V/220V, 50/60Hz, ±10%
  • Dimensions80 × 150 × 230 mm
  • Weight2.5kg
  • AccessoriesPower cord ×1, banana plug test lead ×1 pair (red/black), user manual ×1, warranty card ×1
