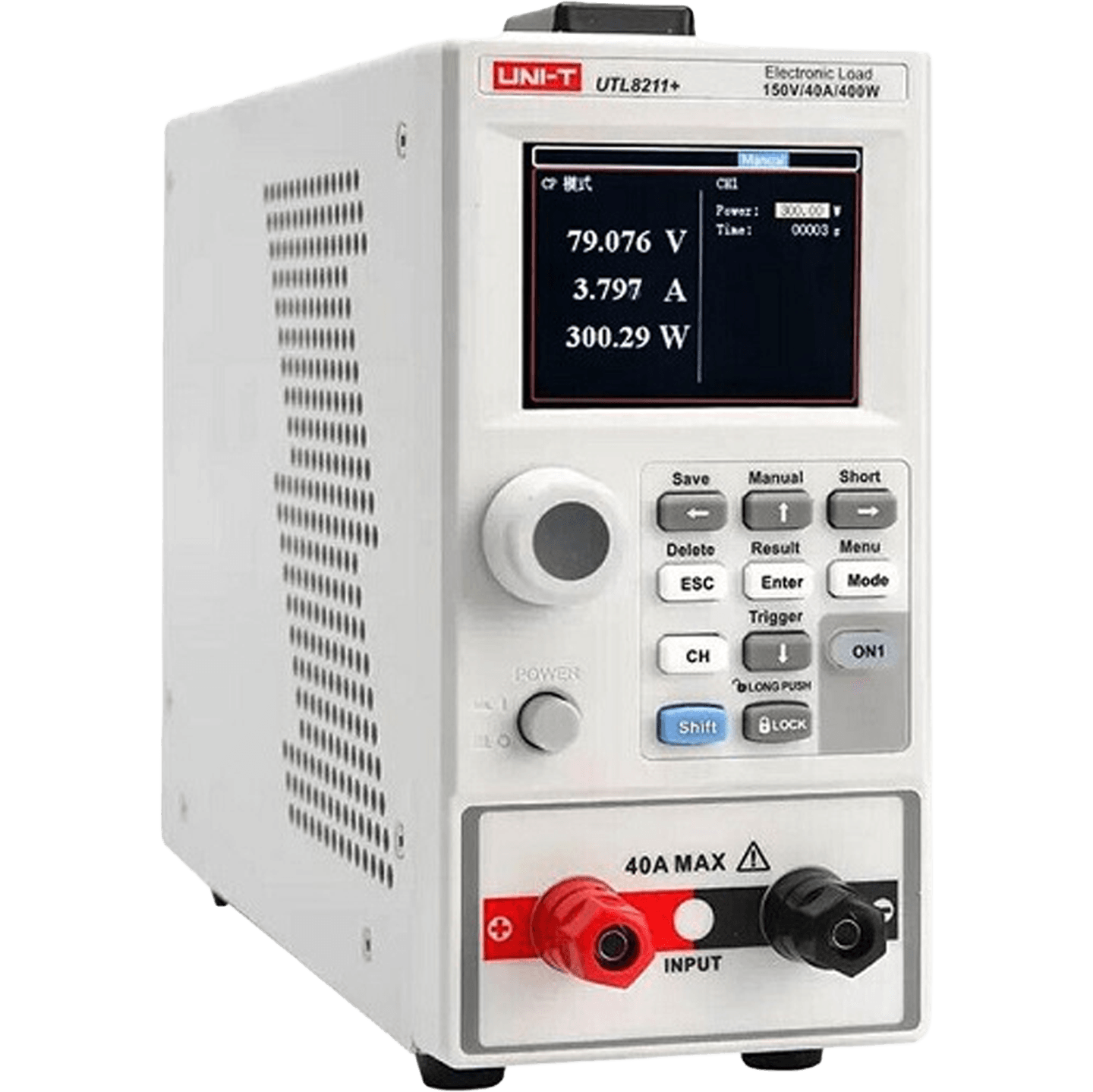

UTL8211+ 400W DC Electronic Loads Input ratings : 0~150V /0~40A / 400W

Brand UNI-T | Model UTL8211+ | 🇨🇳 China
UTL8211+ 400W DC Electronic Loads Input ratings : 0~150V /0~40A / 400W
UTL8211+ - 1
UTL8211+ - 2
UTL8211+ - 3
2.8 inch large screen LCD display 7 working modes: CC/CV/CR/CP/dynamic/list/battery Independent short circuit test function Multi-mode battery discharge test Test resolution: 1mV/1mA Voltage test range: 0~150V Current test range: 0~40A Power test range: 0~400W Multiple protection functions RS-232C communication interface Intelligent temperature control fan Power-off memory function
Price NT$ 8,400
Out of Stock
Views: 2

Description

UNI-T DC-Load product interface and function, simple operation, high resolution, good reliability. According to the needs of industrial and scientific research customers, it provides solutions suitable for different scenarios and Automatic Test Equipment integration, especially suitable for industry customers. UNI-T electronic load products provide customers with flexible, fast and effective solutions, and provide unparalleled customer value for education, scientific research, manufacturing and other applications.

Specifications

  • Input ratings0~150V /0~40A / 400W
  • CV mode0~18V / 0~150V : ±(0.05%+0.1%FS)
  • CC mode0~4A / 0~40A : ±(0.05%+0.05%FS)
  • CR mode0.05Ω~7.5KΩ : ±0.1%+0.5%FS
  • CP mode400W : ±0.1%+0.5%FS
  • Dynamic modeT1&T2 : 100uS~3600S (5uS±100ppm)
  • Readback voltage0~18V / 0~150V : ±(0.05%+0.1%FS)
  • Readback current0~4A / 0~40A : ±(0.05%+0.1%FS)
  • Readback power400W : ±(0.1%+0.5%FS)

Features

  • Test modeCC/CV/CR/CP/Dynamic mode/List mode/Battery test
  • Data Logging60 sets of data memory
  • InterfaceRS232 interface and SCPI protocol

Attributes

  • Power Supply110V / 220V
  • Display2.8 inches LCD
  • Weight3.6Kg
  • Dimensions300mm x 88mm x 174mm
