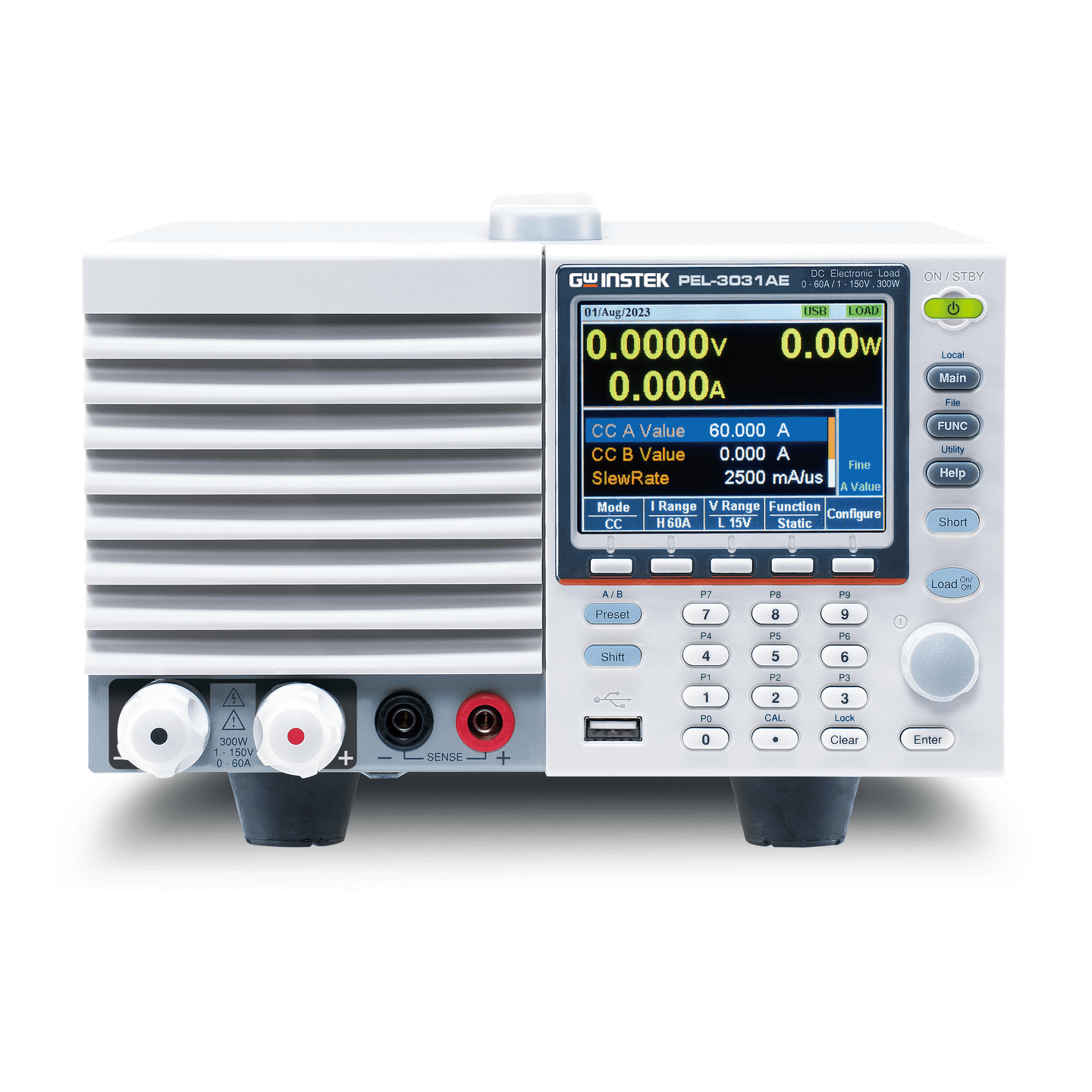

GWINSTEK PEL-3000AE Programmable Single Channel DC Electronic Load
Brand
GWINSTEK
|
Model
PEL-3000AE
|
🇹🇼 Taiwan
High precision programmable single channel DC electronic load for power supply and current-voltage load testing.
Out of Stock
Views: 1
Specifications
- Power Supply0~150V, 0~500V
- Current Range0~60A, 0~15A
- 最低操作電壓低範圍 1V / 高範圍 2.5V
- Resolution0.2mA / 0.5mV
- Accuracy(T *1) ± (0.1% of set +0.2% of F.S)
- 最大功率300W
- 準確度±(0.1% of set +0.1% of F.S)
- 操作模式CC, CV, CR, CP, CC+CV, CR+CV, CP+CV
- Rise Time最快 2.5A/us
Features
- 紀錄功能10組預設數據
- Overload ProtectionOVP, OCP, OPP, OTP, RVP, UVP
- External Control支持外部電壓、電阻控制
- 可程式設定是
- 軟啟動功能是
- 自動測試功能OCP, OPP
- 預設數據集10 Sets
- 快速/正常序列功能yes
- 軟啟動yes
- 動態模式yes
Attributes
- 尺寸與重量213.8(W) x 124.0(H) x 400.5(D)mm, 約7.5公斤
- Power Supply100-120VAC / 200-240VAC, 47-63Hz
- InterfaceUSB, LAN, RS-232, RS-485
- Dimensions213.8(W) x 124.0(H) x 400.5(D)mm
- Weight約 7.5Kg
- 通訊遠程感測
- 整合功能電壓、電流、功率量測
