4,000 Count meter(hFE)
Brand
UNI-T
|
Model
UT-39A+
|
🇨🇳 China
Manual range operation, fast measurement speed, and high accuracy, designed according to CAT II 1,000V / CAT III 600V safety standards.
Ideal for school lab courses and factory circuit troubleshooting.
Price
NT$ 750
Out of Stock
Views: 59
Description

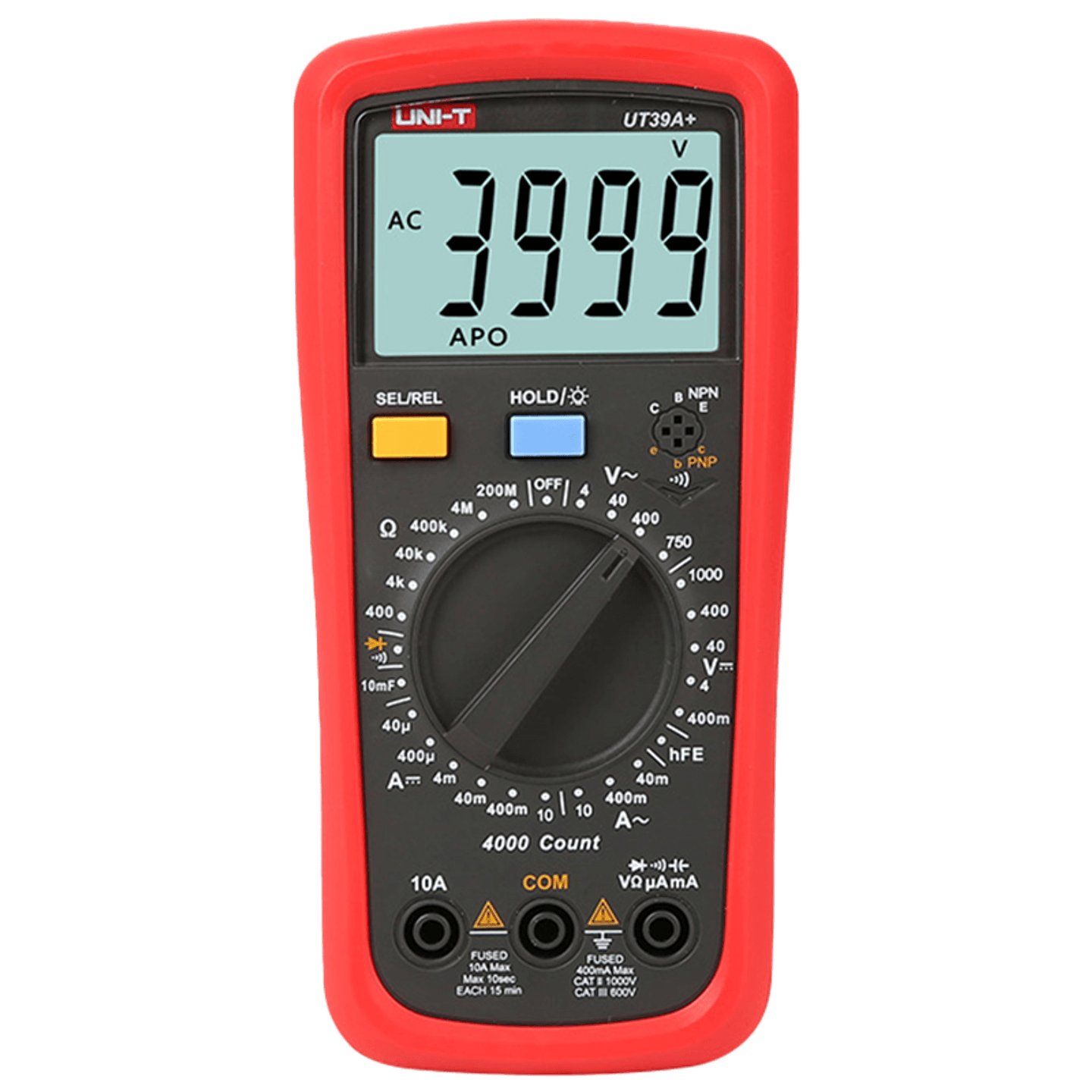

The UT-39A+ is a 3¾ digit multimeter from UNI-T, featuring a 3,999 display count, built-in NCV non-contact voltage detection, and a transistor testing socket. This cost-effective meter offers a variety of measurement functions, making it suitable for school labs and factory circuit maintenance.
Specifications
- Display Counts3¾ 位數(3,999 位數)
- DC Voltage400m / 4 / 40 / 400 / 1,000 V ±(0.5%+5)
- DC Current40μ / 400μ / 4m / 40m / 400m / 10 A ±(0.8%+3)
- AC Voltage4 / 40 / 400V / 750 V ±(0.8%+3)
- AC Current40m / 400m / 10A ±(1.0%+2)
- Resistance400 / 4000 / 40k / 400k / 4M / 20M Ω ±(0.8%+2)
- Capacitance4n / 40n / 400n / 4μ / 40μ / 400μ / 10m F ±(0.8%+2)
Features
- 電晶體量測功能專用插孔NPN/PNP
- Diode Test0.001V
- Continuity小於 50Ω
Attributes
- Operating Temperature0 to 40°C / lower than 75%RH without dew
- Storage Temperature-10 to 50°C / lower than 75%RH without dew
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V battery (R03 / AAA) x 2
- Dimensions175 × 83 × 53 mm
- WeightApprox. 330 g (Battery including)
- AccessoriesTest lead、Battery、Manual
