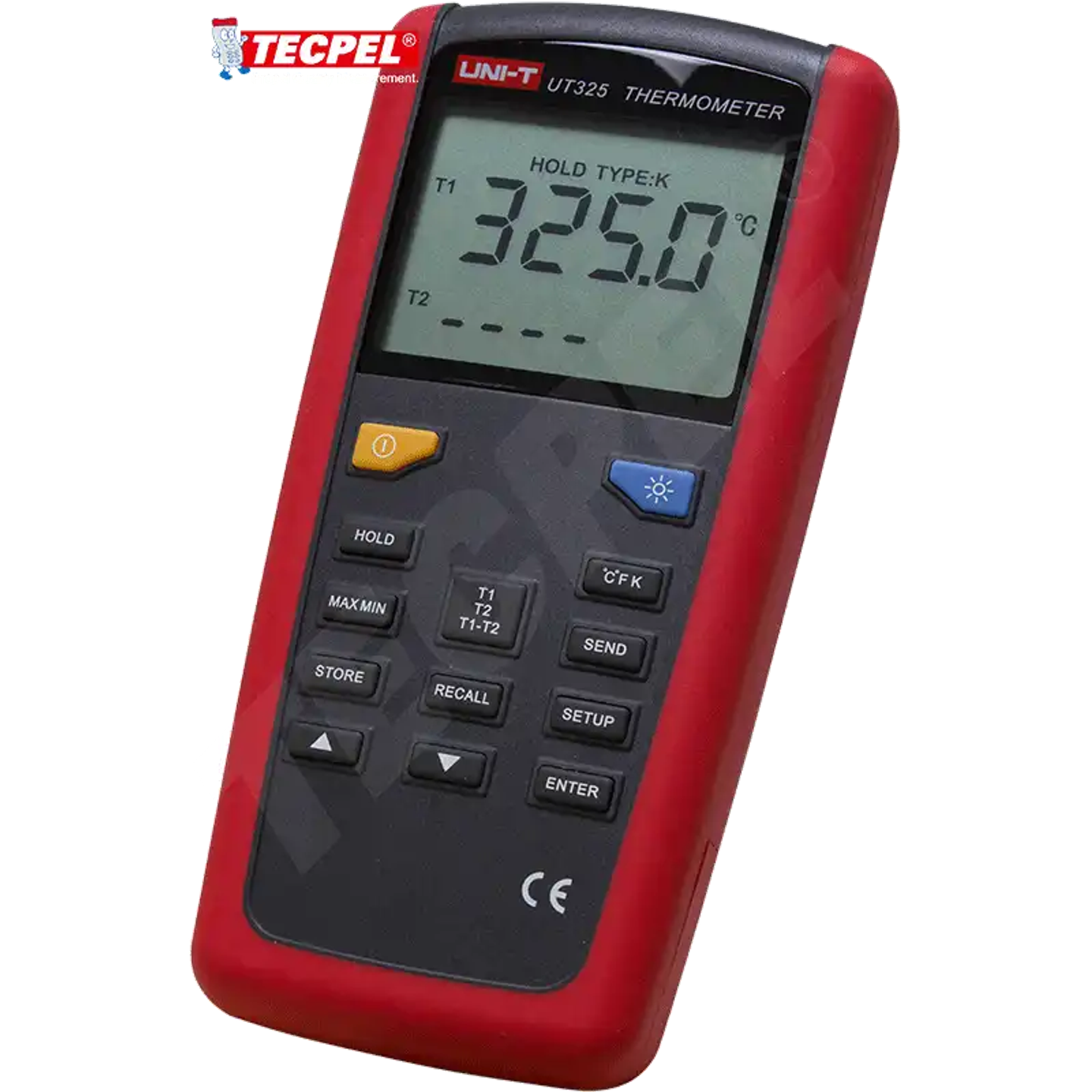

Type K J T E R S N Dual Channel Thermocouple Thermometer
Brand
UNI-T
|
Model
UT-325
|
🇨🇳 China
Universal K-type thermocouple thermometer, compatible with various K-type probes,
large capacity for long-term temperature recording,
features USB connection to a computer,
can switch between Celsius, Fahrenheit, and absolute temperature units.
Price
NT$ 3,045
Out of Stock
Views: 56
Description
UT-325 is a universal K-type thermocouple temperature data logger, suitable for various K-type temperature-sensing wires/rods. With high-capacity logging, it can continuously record temperature change curves for long periods of time.
It supports multiple types of thermocouple sensing wires or rods and can be used to measure oil temperature, water temperature, object surface temperature, and ambient air temperature, offering a wide range of applications.
This device is especially suitable for users who need to monitor temperature changes over extended periods, making it easy to collect and analyze data.
Specifications
- Display Counts-200~1,300 °C (-328~2,372 °F)
- Temperature Range-200~1,372°C (-328~2,501°F)
- Resolution0.1°C / 1°C (above 1,000°C)
- Thermocouple TypeK / J / T / E / R / S / N Type
- Response TimeDepends on the probe/lead
- Display Range-200~1,300 °C (-328~2,372 °F)
- Rango de temperatura tipo K-200~1,372°C (-328~2,501°F)
- Rango de temperatura tipo J-210~1,200°C (-346~2,192°F)
- Rango de temperatura tipo T-250~400°C (-418~752°F)
- Rango de temperatura tipo E-150~1,000°C (-238~1,832°F)
- Rango de temperatura tipo R0.0~1,767°C (32~3,212°F)
- Rango de temperatura tipo S0.0~1,767°C (32~3,212°F)
- Rango de temperatura tipo N-200~1,300°C (-328~2,372°F)
Features
- Temperature UnitCelsius (°C) / Fahrenheit (°F) / Absolute temperature (°K)
- Data Logging100 data records
- Alarm Function○
- Max/Min○
- Low Battery Indicator○
- Auto Power Off○
- Backlight○
- Data Hold○
- InterfaceUSB
- USB Power○
Attributes
- Operating Temperature0~50 °C / less than 90 %RH non-condensing
- Storage Temperature-10~40 °C / less than 70 %RH non-condensing
- Altitude LimitBelow 1,000 meters
- Power Supply9V battery
- Dimensions172 x 85 x 30 mm
- Weight270 g
- AccessoriesK-type thermocouple wire, USB cable, disc, battery, manual.
