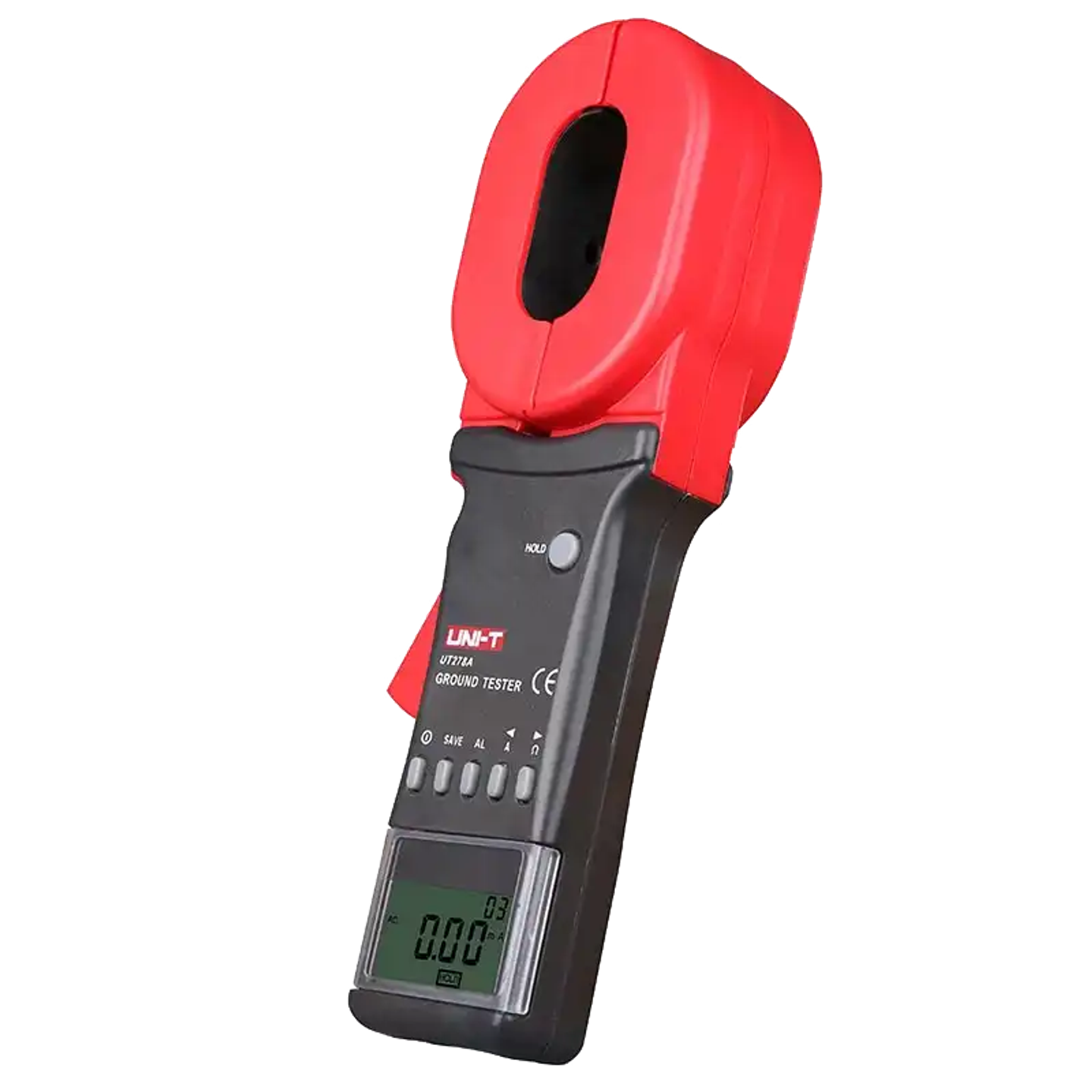

Earth Ground Resistance Clamp Meter
Brand
UNI-T
|
Model
UT-278A
|
🇨🇳 China
The display resolution of UT-278A can reach 0.001Ω and it can measure leakage current up to 30A.
Out of Stock
Views: 3
Description
UT-278A can measure the grounding system quickly and safely without disconnecting the circuit ground wire or requiring auxiliary electrodes. The display resolution can reach 0.001Ω, and the leakage current can be measured up to 30A. The clamp part adopts double insulation design, which can effectively block interference signals in the environment. It is the best tool for measuring ground impedance.
2021.11.5 UT-278A (with USB function) discontinued, replaced by UT-278A+ (without USB function)
Specifications
- Accuracy±(2.5% +1mA) at 0m~9m A
- Jaw OpeningØ32 mm
- Output Current1m~30 A (50/60Hz)
- Resistance±(1%+ 0.01) at 0.01~0.099 Ω
- Resolution1mA
Features
- Response TimeApprox. 1秒
- Alarm Function1m〜499m A
- Data Logging99 records
- Data TransferRS-232
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 4
- Dimensions285 x 85 x 56 mm
- Weight1,160g (Battery included)
- AccessoryCarrying case, standard resistance ring, battery, Transmission line, Manual, CD
