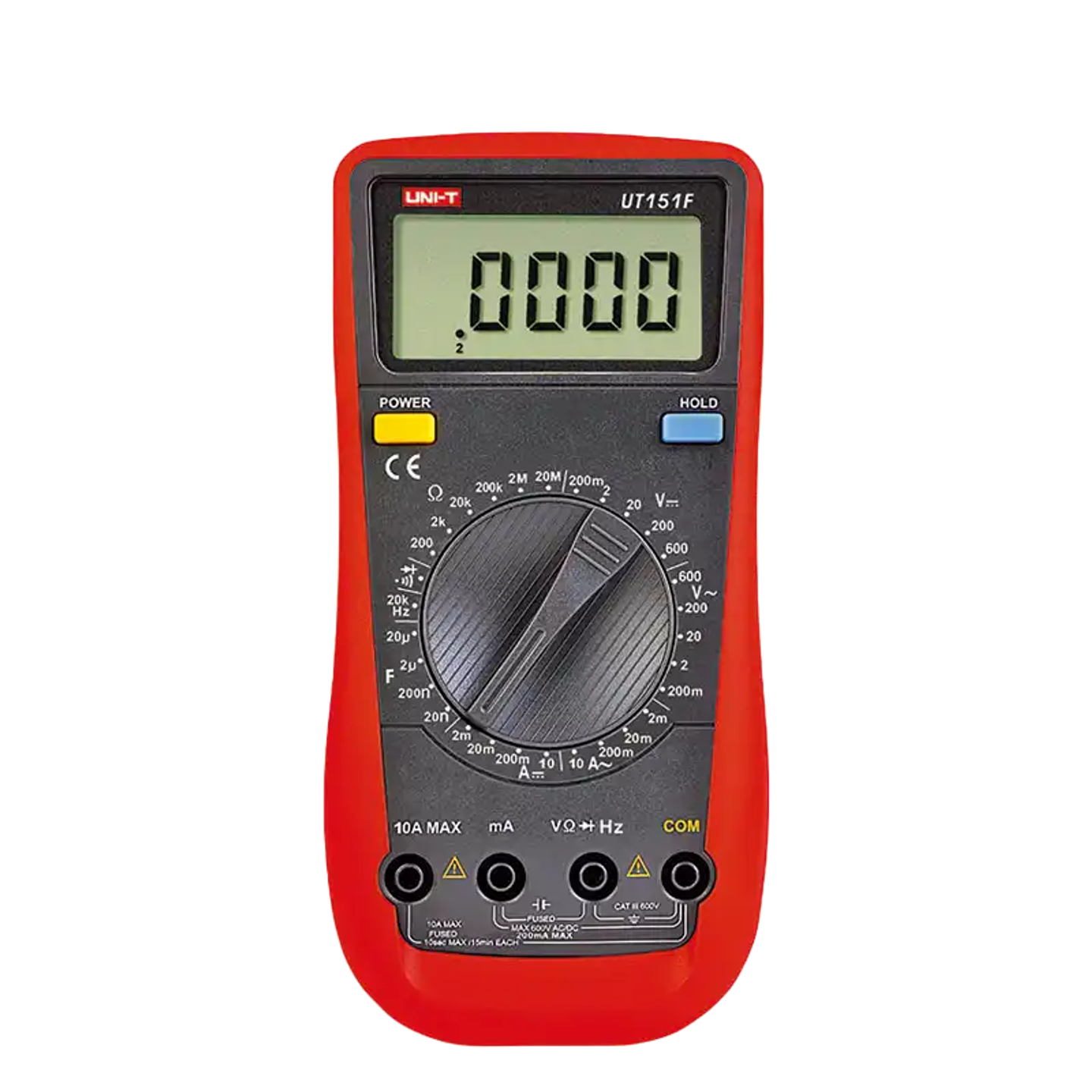

Digital Multimeter
Brand
UNI-T
|
Model
UT-151F
|
🇨🇳 China
Key features of the UT-151F Digital Multimeter include:
- Automatic fuse recovery function
- AC and DC voltage/current measurements
- Resistance and capacitance testing
- Complies with CE and ETL standards
- 1,999 display counts for easy reading
Price
NT$ 1,460
Out of Stock
Views: 0
Description
The UT-151F Digital Multimeter is an advanced three-in-one meter designed to meet various electrical measurement needs. It features an automatic fuse recovery function that effectively protects the instrument and supports both AC and DC voltage and current measurements, as well as resistance and capacitance testing. Whether you are a professional technician or a DIY enthusiast, the UT-151F provides accurate measurement results and complies with CE and ETL standards for safe and reliable use.
Specifications
- 顯示位數Display digits
- 直流電壓DC voltage
- 直流電流DC current
- 交流電壓AC voltage
- 交流電流AC current
- 電阻Resistance
- 電容Capacitance
- 工作溫度Operating temperature
- 顯示位數_value1,999 counts
- 直流電壓_value200m/ 2/ 20/ 200/ 600V (±(0.05%+3)>
- 直流電流_value2m/ 20m/ 200m/ 10A (± (0.5%+5)>
- 交流電壓_value200m/ 2/ 20/ 200/ 600V (±(0.5%+10)>
- 交流電流_value2m/ 20m/ 200m/ 10A (± (0.8%+10)>
- 電阻_value200/ 2K/ 20K/ 200K/ 2M/ 20MΩ (±(0.3%+1)>
- 電容_value2μF/ 200μF (±(4%+3)>; 20nF/ 200nF/ 2μF/ 20μF (±(4%+20)>
- 工作溫度_value20KHz (±(1.5%+5)>
Features
- Auto-recovery fuse functionYes
- AC/DC voltage measurementYes
- AC/DC current measurementYes
- Resistance testYes
- Capacitance testYes
- Meets CE standardsYes
- Meets ETL standardsYes
- Display digits1,999 display
- Easy to useYes
Attributes
- Working temperature-10~40 °C / below 75%RH and no condensation
- Storage temperature0~50 °C / below 75%RH and no condensation
- Altitude limitbelow 1,000 meters
- Power supplyDC 9V battery x1
- Dimensions (appearance)186 X 91 X 39 mm
- Weightapprox. 300 g (including battery)
- Accessoriestest leads, battery, instruction manual
