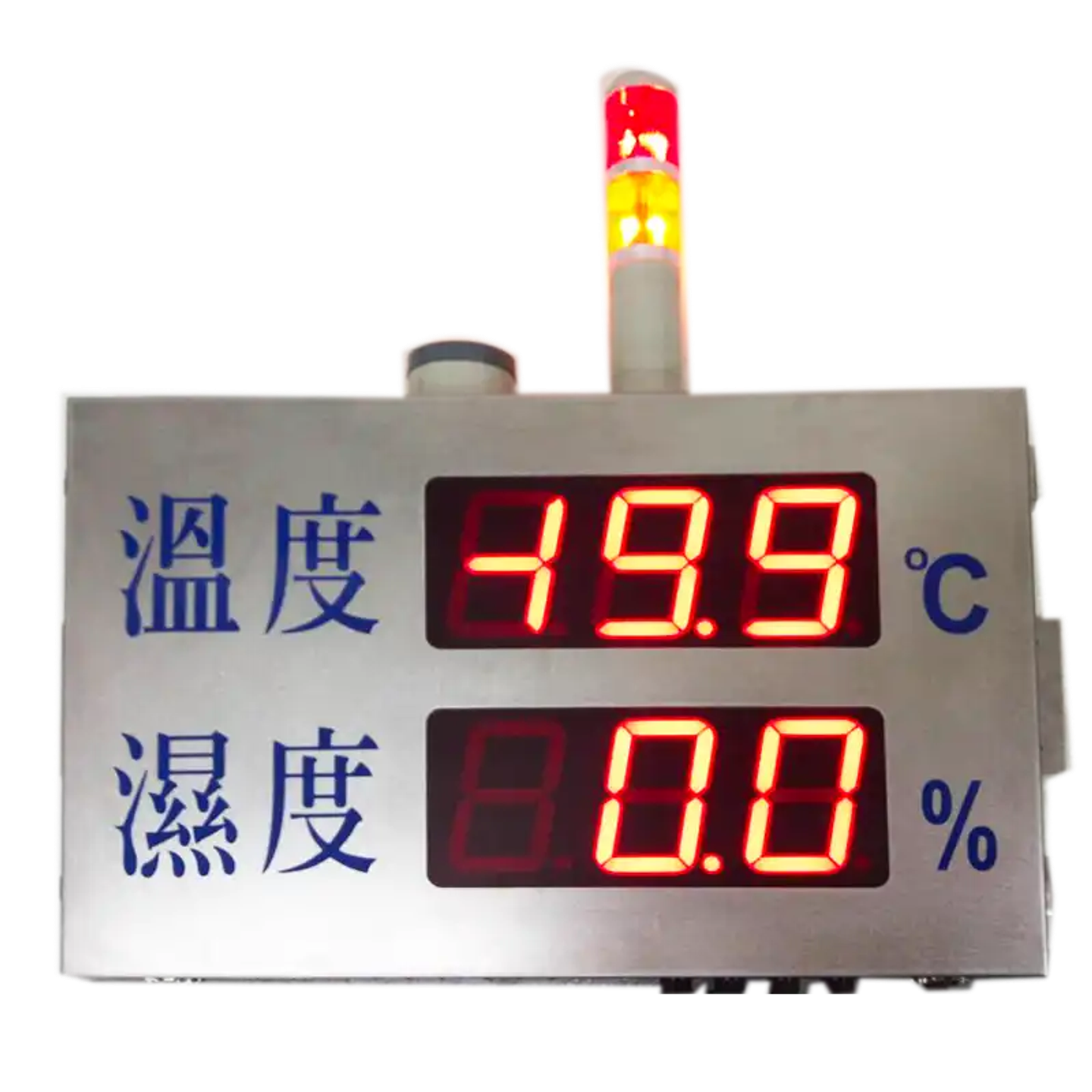

Outdoor Temperature and Humidity Display Board (up and down alarm) (special specification)
Brand
TECPEL
|
Model
TRH-3310DHLW-S
The TRH-3310DHLW-S is an outdoor temperature and humidity display board with the following features:
- Up and down alarm functionality
- Protective cover design suitable for outdoor use
- Digital display with red LED lights
- External temperature and humidity sensor supporting different input signals
- Applicable for warehouses, factories, and golf courses
Out of Stock
Views: 0
Description
The TRH-3310DHLW-S Outdoor Temperature and Humidity Display Board is specifically designed for outdoor environments, featuring a high-precision sensor with a protective cover to ensure reliable operation in various weather conditions. The board provides up and down alarm functions, making it suitable for monitoring environments such as warehouses, factories, and golf courses, allowing users to keep track of environmental changes at all times.
Specifications
- 精確度±1%
- 溫度範圍0~99.9°C 或 -19.9~80.0°C
- 濕度範圍0~99.9 %
- 解析度0.1
- 反應時間3次/秒 或 0.5次/秒
Features
- 標準输入訊號4~20mA 或 0~5V 或 0~10V / 訂購時需指定
- 電壓輸出DC24V / 100mA
- 精確度外部Zero / Span調整
- 使用者補償數位補償
- 數字顯示紅色LED燈
- 外觀尺寸2.3吋 (H57mm x L32mm)
- 警報功能溫濕度上下限不同燈號顯示與蜂鳴器
Attributes
- Operating Temperature0~60°C / lower than 90%RH without dew。
- Storage Temperature0~60°C / 10~70%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyAC 110V or 220V AC 110V or 220V (Depends on the specifications of the alarm, please confirm before ordering)
- DimensionsH330mm x L600mm x D80mm
- WeightApprox. 5 kg
