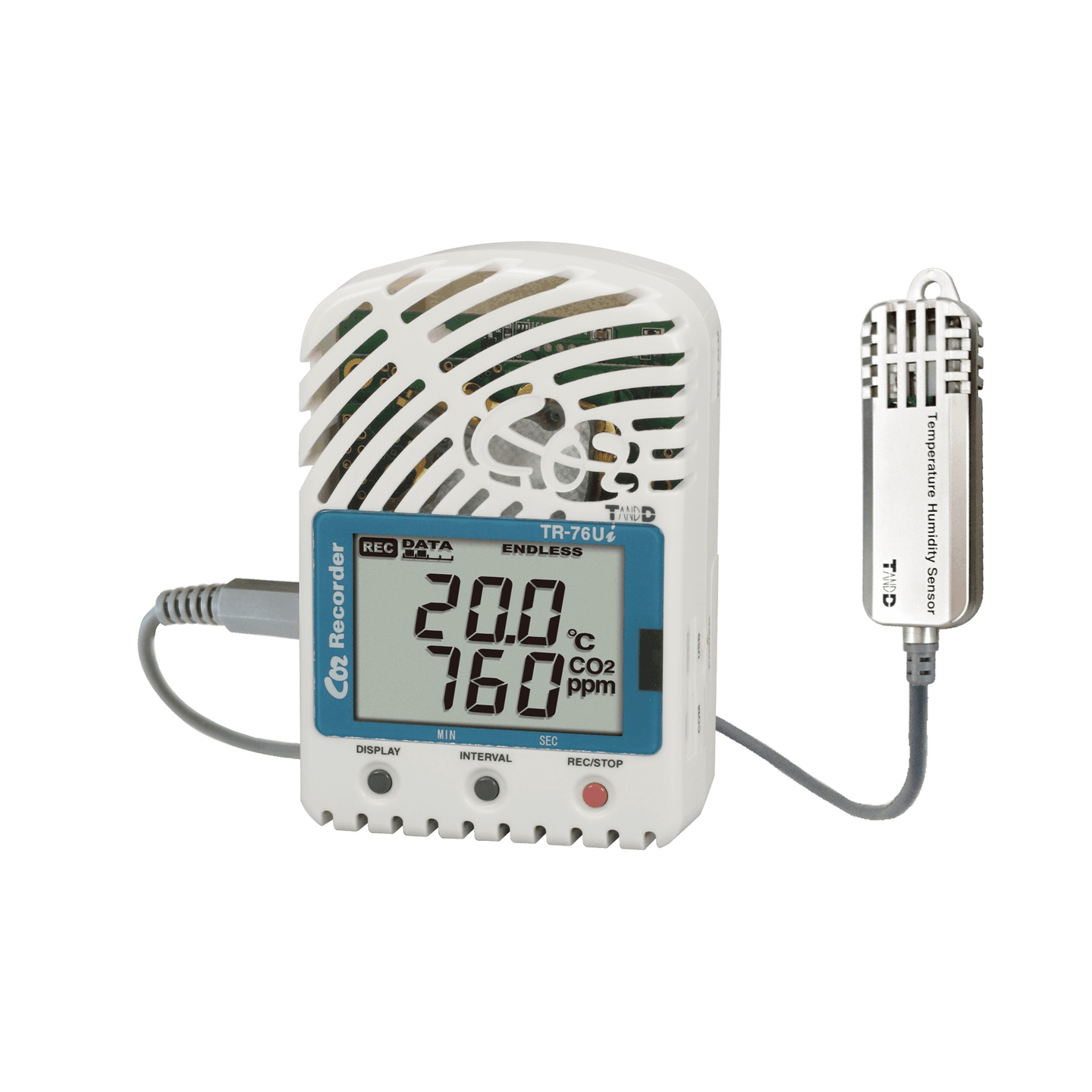

T&DCO2／Thermometer data logger
Brand
T&D
|
Model
TR-76Ui-S
|
🇯🇵 Japan
TR-76Ui-S is designed for continuous monitoring of indoor CO2 levels, featuring a large opening for accurate CO2 measurement and capable of storing 8,000 data points.
- Data download via USB and optical reader
- Measurement range: -25~70°C
- Humidity range: 0~99%RH
- Accuracy: ±0.3°C / ±2.5%RH
- Alarm function supported
- Multiple recording modes available
Price
NT$ 17,500
Out of Stock
Views: 11
Description
The TR-76Ui-S is a three-channel data logger designed specifically for measuring and recording CO2 concentration, as well as high-precision temperature and humidity.
The CO2 alarm notification function helps provide a basis for determining the appropriate timing for ventilation in classrooms and buildings.
Equipped with a higher-precision temperature and humidity sensor, it is suitable not only for CO2 measurement but also for applications that require strict control of temperature and humidity.
Specifications
- Sensor ModelSHA-3151
- CO2 Range0 ~ 9,999 ppm
- Temperature Range-25 ~ 70°C
- Humidity Range0 ~ 99 %RH
- Temperature Unit Switching°C (Celsius)/ °F(Fahrenheit)
- Humidity Unit%RH (Relative Humidity)
- Resolution0.1°C / 0.1%RH
- Accuracy±0.3°C / ±2.5%RH / ±50ppm
Features
- Temperature UnitCelsius °C / Fahrenheit °F
- Data TransferUSB
- Recording Capacity8,000 records
- Recording ModeOne-time (Onetime) / Endless (Endless)
- Recording Interval1 second ~ 60 minutes (15 selectable settings)
- Recording IndicatorREC
- Alarm FunctionDry Contact
Attributes
- Operating TemperatureTemperature 0 ~ 50°C Humidity below 70%RH non-condensing
- Storage TemperatureTemperature -20 ~ 60°C Humidity below 80%RH non-condensing
- Altitude LimitShould be below 2,000 meters
- Power Specifications1.5V AA battery × 4 / AC adapter
- Data TransmissionRS-232 or USB
- DimensionsCustomizable, subject to the actual product
- WeightApprox. 40g (excluding batteries)
- AccessoriesAA alkaline battery x4, Sensor: THA-3001, USB transmission cable, Adapter (AC110V), software CD, instruction manual
