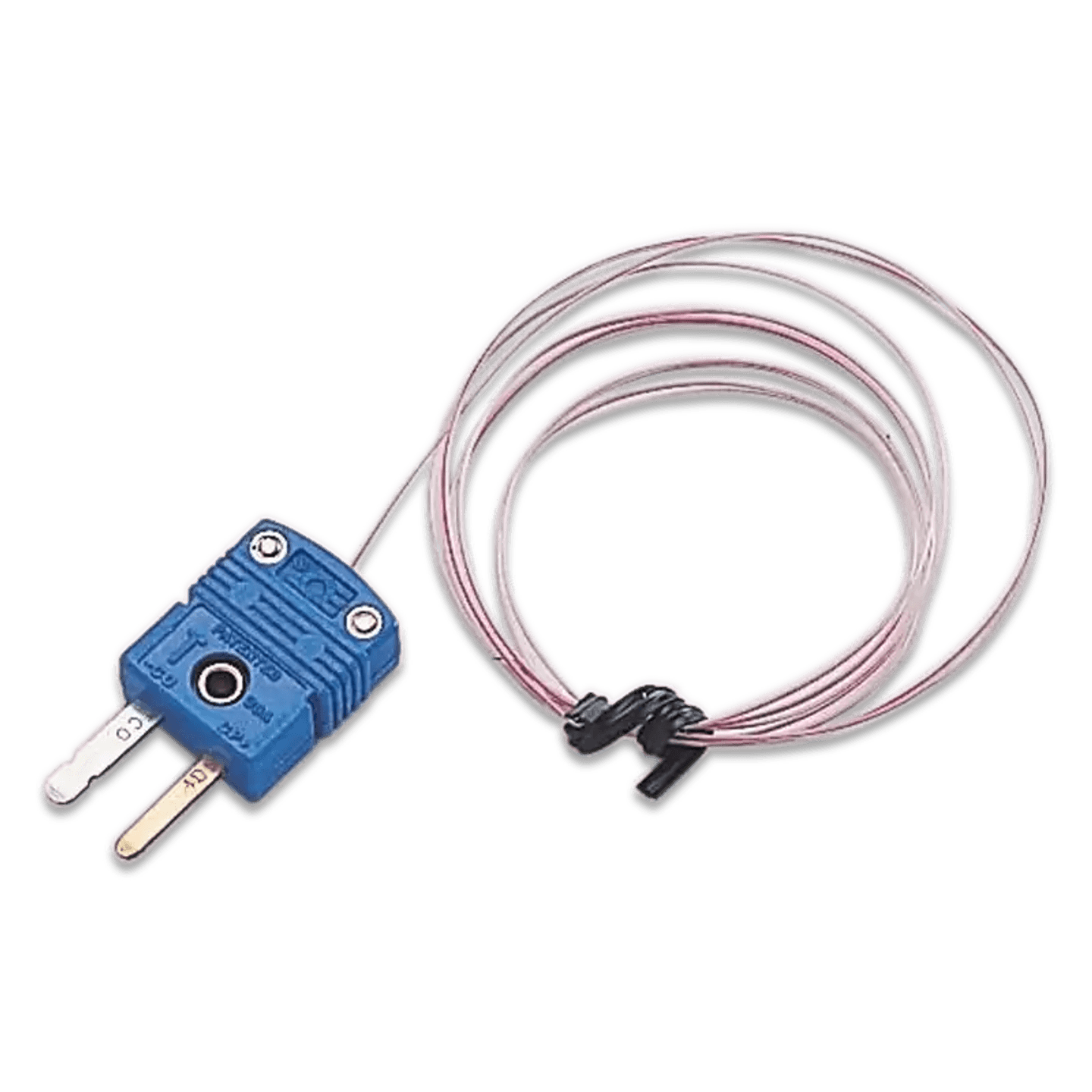

T-type thermocouple wire
Brand
TECPEL
|
Model
TPT-01-24G-3M-S
|
🇹🇼 Taiwan
It can be used to measure the temperature of -200~200°C, suitable for measuring the temperature of dry ice and liquid nitrogen.
Out of Stock
Views: 0
Description
T-type thermocouple wire with a diameter of 0.51mm, capable of measuring temperatures in low-temperature environments down to -200°C and up to 200°C.
The wire used is TPT-01-24G-3M-S (T-type thermocouple 24G (wire diameter 0.51mm), rated for -200°C, with a 3-meter wire length and a 50mm white iron tube (3.8mm diameter) at the front end.
Compatible with DTM-507, TR-75nw, TR-75A, TR-55i-TC, or TR-45.
Used for measuring extremely low temperatures in liquid nitrogen tanks or dry ice environments.
The image depicts a scientific setup for measuring ultra-low liquid nitrogen temperatures in a liquid nitrogen tank.
Specifications
- Measuring Range-200~200°C
- Probe TypeT type
Features
- Wire colorLight brown
- Cable materialTeflon (PTFE)
Attributes
- Operating Temperature-200~200°C
- Storage Temperature-50~50°C
- Dimensions15,000 mm
