溫濕度 8 英吋圓盤紀錄器
Brand
DICKSON
|
Model
TH8-10
|
🇺🇸 USA
Key features of the Dickson TH8-10 include:
- LCD display for clear temperature and humidity readings
- Interchangeable sensor technology for easy calibration
- Multiple recording interval options
- High-resolution data recording
- Audio and visual alarm functions for timely notifications
Out of Stock
Views: 46
Description

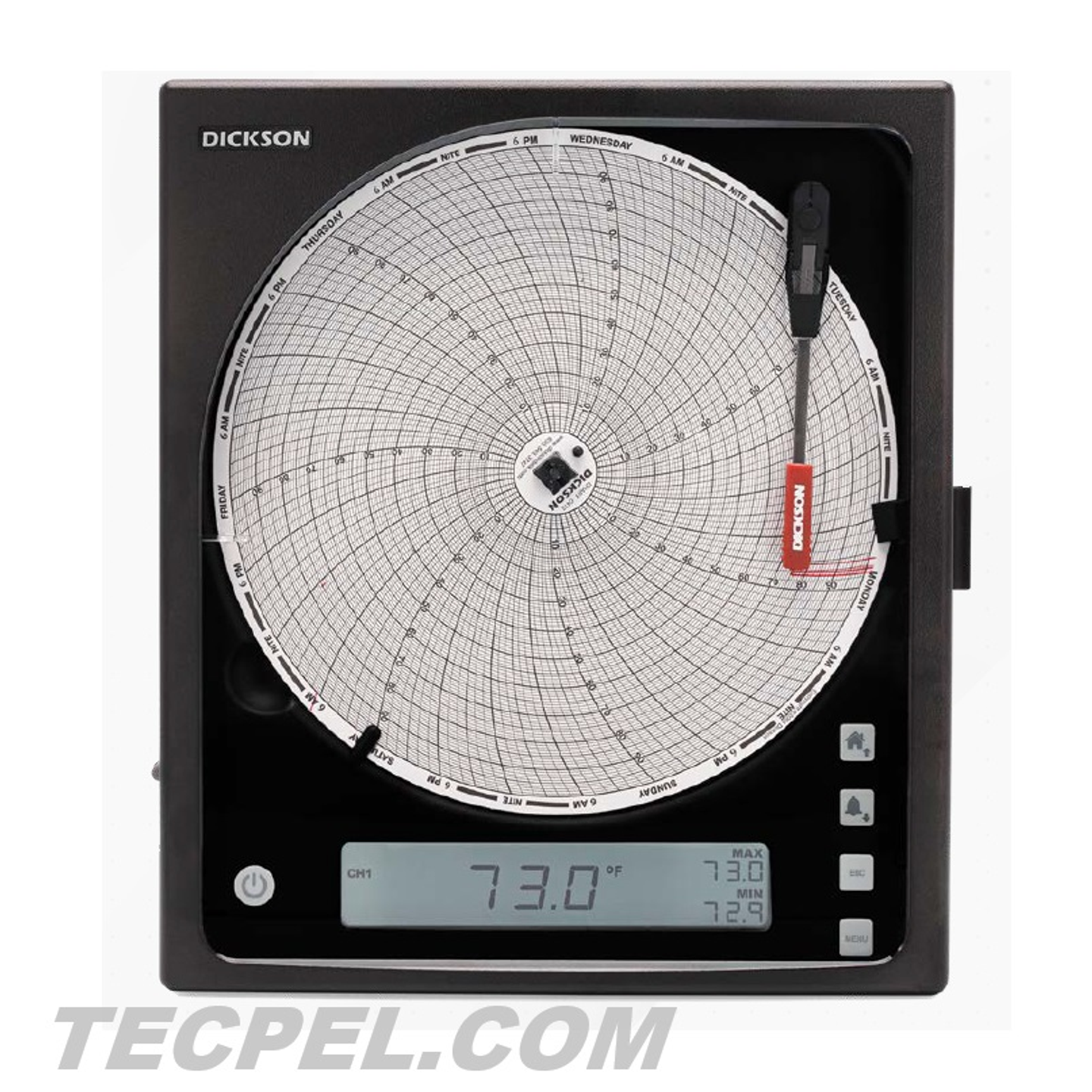

The Dickson TH8-10 is a high-performance 8-inch chart temperature and humidity recorder featuring an LCD display and interchangeable sensor technology. It provides high-resolution data recording, allowing users to select the recording intervals and ranges as needed. The audio and visual alarm functions ensure timely alerts, catering to various application requirements and simplifying the calibration process.
Specifications
- DisplayLCD
- Alarm Function音頻/視覺
- Operating Environment Humidity0-95% RH 非冷凝
- Operating Temperature32°F 至 120°F (0°C 至 50°C)
- Battery Type四顆 C 型電池
- Battery Life1 個月 (平均)
- Calibration OptionsN100, N300, N400
- ChannelsCH1: 溫度, CH2: 濕度
- RPM Range24 小時，7 天
- Dimensions9 3/8”x 2 3/4”x 10 1/8”
- Body Material堅固的黑色 ABS 機殼，聚碳酸酯門，鋁製刻度盤
- Waterproof RatingIP20
- Accessories6 英尺
- Installation Options可直立或壁掛 (帶鑰匙孔)
- Power Supply120 至 240 VAC，12 VDC (可用國際配件); AC 變壓器
- Power Status IndicatorLED 指示燈
- Weight2.45 磅 (不含電池)
- Warranty12 個月有限保固
- Sensor Type環境溫度和濕度 (RS010)
- Accuracy20°F 至 122°F 時 ±0.8°F (±0.44°C), 其餘範圍 ±1.8°F (±1°C)
- Temperature Range32°F 至 120°F (0°C 至 50°C)
Features
- DisplayLCD
- 可替換感應器技術是
- 多種紀錄時間間隔是
- 音頻警報是
- 視覺警報是
- 高分辨率數據紀錄是
Attributes
- Operating TemperatureTemperature 0 to 50°C, Humidity below 70%RH non-condensing
- Storage TemperatureTemperature -20 to 60°C, Humidity below 80%RH non-condensing
- Body MaterialRugged Black ABS Case, Polycarbonate Door, Aluminum Dial
- Waterproof RatingIP20
- AccessoriesAC Adapter, Red Pen, Blue Pen, 4 C Batteries, Quick Start Guide and Replaceable Sensor
