1/1 and 1/3 octave real-time audio analyzer (with TAF report)

Name: TES-1358E 1/1 and 1/3 octave real-time audio analyzer (with TAF report)
Brand: TES
SKU: TES-1358E
Price: 105000 TWD
Availability: OutOfStock

Brand TES | Model TES-1358E | 🇹🇼 Taiwan

Key features of the TES-1358E audio analyzer include: - Real-time 1/1 and 1/3 octave analysis for sound spectrum distribution - TFT-LCD color display for clear readability - Internal/external trigger measurement start for flexible applications - 90 dB measurement linear range for various environments - AC and DC output support for convenient external device connections - USB interface for easy data transfer to a computer - Built-in memory card for manual and automatic data storage - Accuracy of ±0.7 dB for high-demand measurement scenarios - Multiple frequency ranges suitable for different applications - Includes TAF report for enhanced data analysis

Price NT$ 105,000

Out of Stock

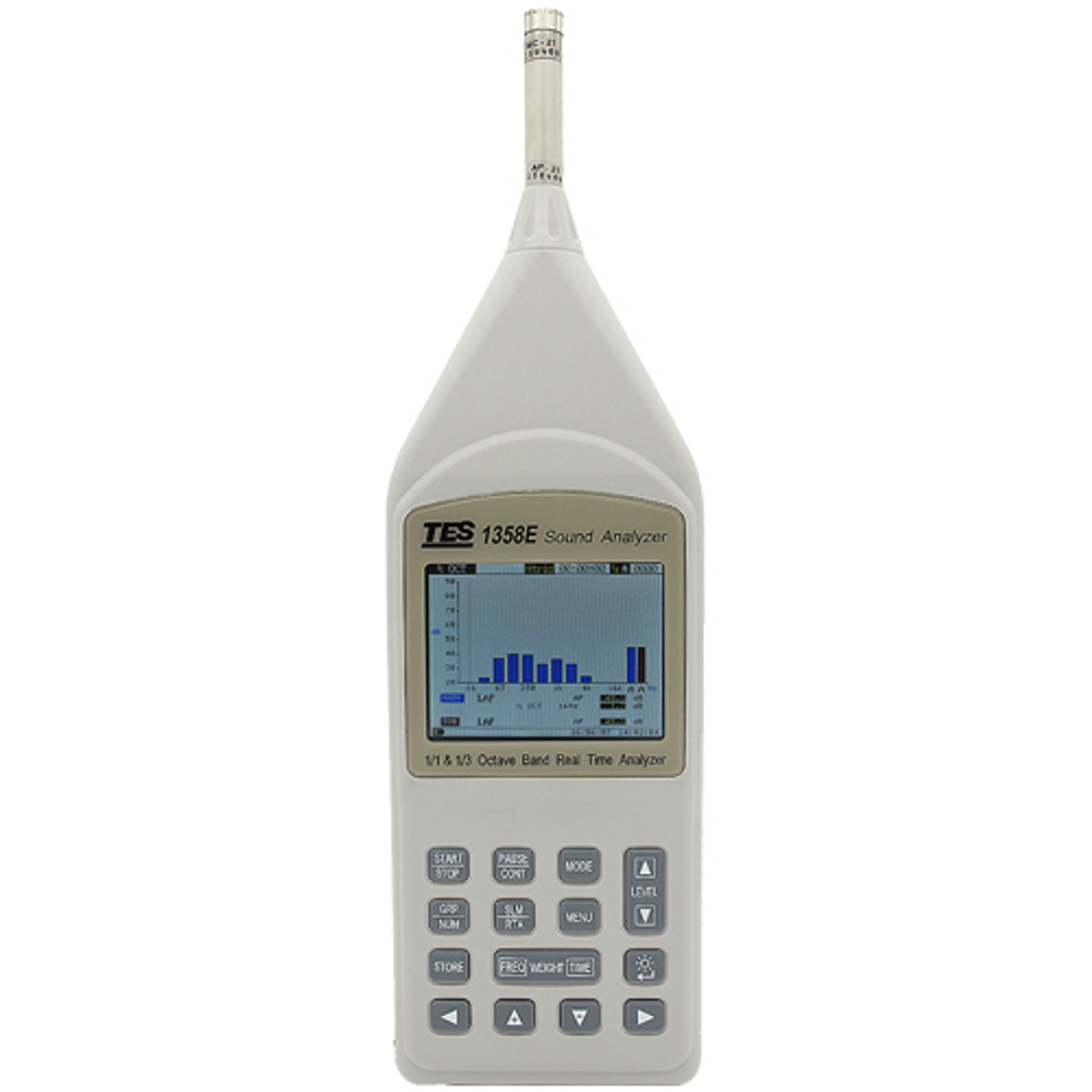

The TES-1358E is a high-performance 1/1 and 1/3 octave real-time audio analyzer designed for precise audio measurement. It supports real-time analysis and can be triggered internally or externally to start measurements. Equipped with a TFT-LCD color display, it clearly shows measurement results and offers a measurement linear range of up to 90 dB. Additionally, the TES-1358E provides AC and DC output capabilities and allows easy data transfer via USB interface, making it suitable for professional applications such as noise analysis and environmental monitoring.

適用標準IEC61672-1:2002 Class 1, ANSI S1.4:1983 Type 1, ANSI S1.11 – 2004 Class 1, IEC61260: 1995 Class 1, ANSI S1.43 – 1997 Type 1
麥克風1/2英吋極化式電容麥克風
量測範圍20 ~ 90dB、20 ~ 100dB、20 ~ 110dB、30 ~ 120dB、40 ~ 130dB
量測功能Lp (volume), Leq (average volume), LE (exposure volume), Lmax (maximum volume), LN (statistical volume L05, L10, L50, L90, L95 calculated from Lp)
頻率範圍12.5Hz ~ 20KHz
頻率A、C 及 Z 加權
時間加權特性Fast 快, Slow 慢, τ=10ms, Impulse 脤衝
精確度±0.7dB (在參考音壓 94dB @1KHz)
1/1八音度1/3八音度帶通濾波器1/1 八音度分析頻帶之中心頻率：(11個頻帶) 16Hz, 31.5Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz及16KHz 1/3 八音度分析頻帶之中心頻率：(33個頻帶) 12.5Hz, 16Hz, 20Hz, 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, 250Hz, 315Hz, 400Hz, 500Hz, 630Hz, 800Hz, 1KHz, 1.25KHz, 1.6KHz, 2KHz, 2.5KHz, 3.15KHz, 4KHz, 5KHz, 6.3KHz, 8KHz, 10KHz 12.5KHz, 16KHz, 20KHz

麥克風延長線 (選購)(選購) 5米長 (TL-F47/5M) and 10米長 (TL-F47/10M)
記憶體容量手動 (250筆)、自動 (250組於micro SD 卡 4GB)
訊號輸出交流輸出 :1 Vrms (滿度度) 直流輸出 : 10mV/dB
電源4 顆1.5V 2號鹼性電池
外部DC電力供應6V, 1A
電池壽命約2小時

Operating Temperature-10℃ to 50℃ , 10 to 90% RH non condensing
Storage Temperature-10 to 40 °C / lower than 80 %RH without dew。
Elevation LimitationLower than 1,000 meters
Applicable standardsIEC 61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2
Microphone1/2 inch electric condenser microphone
Power Supply4 x 1.5V AA alkaline batteries
Dimensions34.5(length)×10(width)×6(height) cm
Weightabout 950g (including battery)
AccessoryInstruction Manual, 9V Battery, Carrying Case、calibration screwdriver, 3.5Ø plug, Sponge ball
