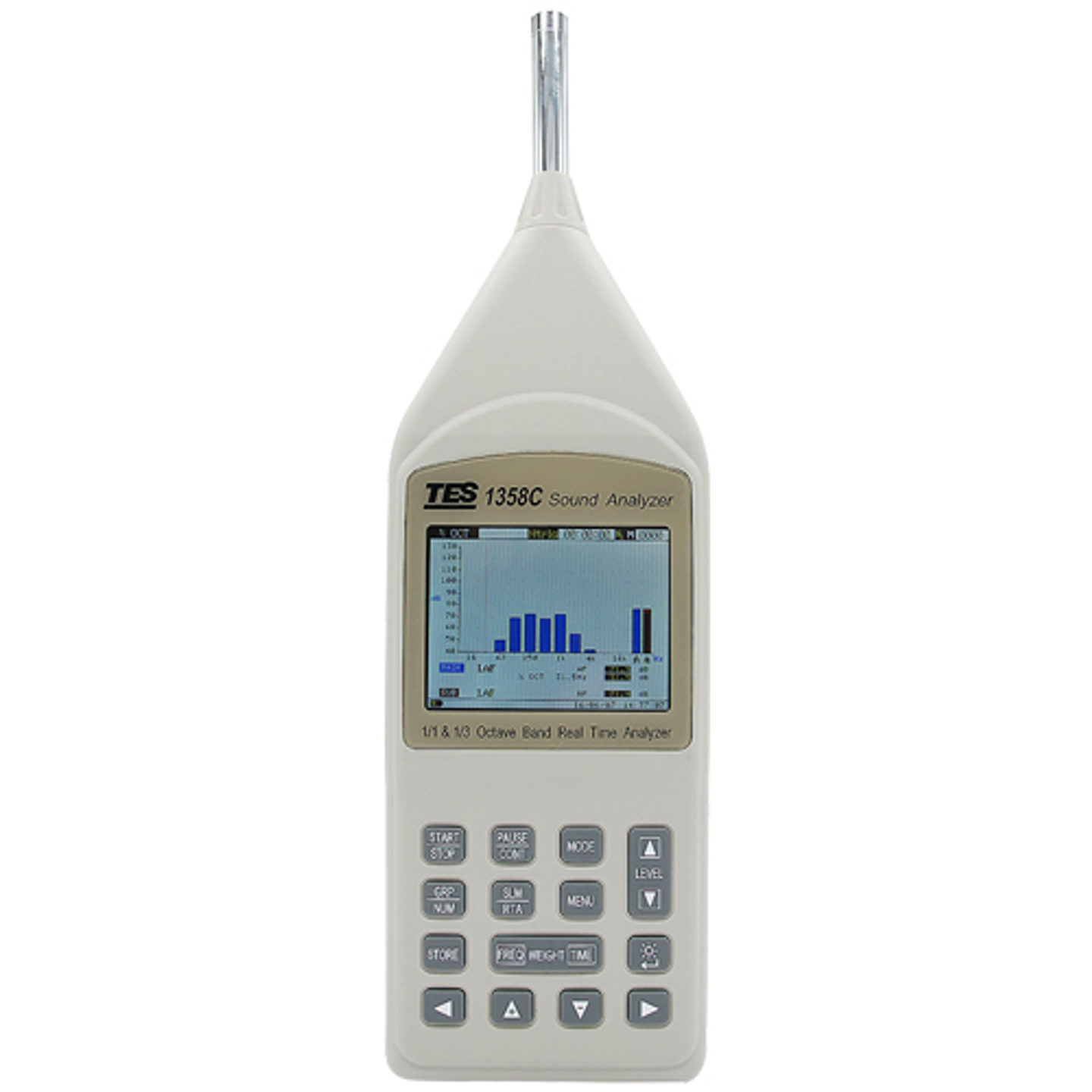

1/1 and 1/3 Octave Real-time Audio Analyzer
Brand
TES
|
Model
TES-1358C
|
🇹🇼 Taiwan
Features a measuring linear range of 90dB, supports real-time 1/1 and 1/3 octave analysis, suitable for acoustic measurement and noise monitoring.
- 90dB measuring linear range
- Complies with IEC 61672-1 class 2 standard
- TFT-LCD color display
- Data transfer via USB interface
- Includes clock and date display
- Internal or external trigger for measurement start
- AC and DC output functions
- micro SD card capacity of 4GB
- Comes with a variety of accessories
Out of Stock
Views: 0
Description
The TES-1358C audio analyzer is designed for sound frequency analysis, particularly suitable for environmental noise monitoring. It provides precise 1/1 and 1/3 octave analysis and includes a TAF report, making it ideal for industrial and environmental noise measurement. This instrument is equipped with high accuracy and a wealth of features to meet various acoustic measurement needs.
Specifications
- 感測器類型1/2英吋極化式電容麥克風
- 量測範圍20 ~ 90dB、20 ~ 100dB、20 ~ 110dB、30 ~ 120dB、40 ~ 130dB
- 頻率範圍25Hz ~ 10KHz
- 頻率A、C 及 Z 加權
- 顯示器3.5英吋320x240彩色TFT-LCD
- 精確度±1.0dB (在參考音壓 94dB @1KHz)
- 麥克風1/2英吋極化式電容麥克風
- 量測功能Lp(音量), Leq(均能音量), LE(曝露音量), Lmax(最大音量), Lmin(最小音量)
- 時間加權Fast 快, Slow 慢, 脤衝
Features
- 即時分析是
- 資料傳輸USB接口
- 內部/外部觸發測量是
- 交流及直流輸出是
- micro SD 卡容量4GB
- 顯示器3.5英吋320x240彩色TFT-LCD
- 數據記憶手動(250筆)、自動(250組於micro SD 卡 4GB)
- 訊號輸出交流輸出: 1 Vrms (滿度度), 直流輸出: 10mV/dB
- 電源4顆1.5V 2號鹼性電池 或外部DC電力供應 6V, 1A
- 電池壽命約2小時
Attributes
- Dimensions34.5(L)×10(W)×6(H) cm
- WeightApproximately 950g (including batteries)
- Power Supply4 x 1.5V Type 2 alkaline batteries
- External Power Supply6V, 1A
- AccessoryManual, 4 alkaline batteries, carrying case, CD software, USB cable, 4GB micro SD card, screwdriver, windscreen, 3.5f headphone jack, AC/DC power adapter
- Operating Temperature-10℃ to 50℃ , 10 to 90% RH
