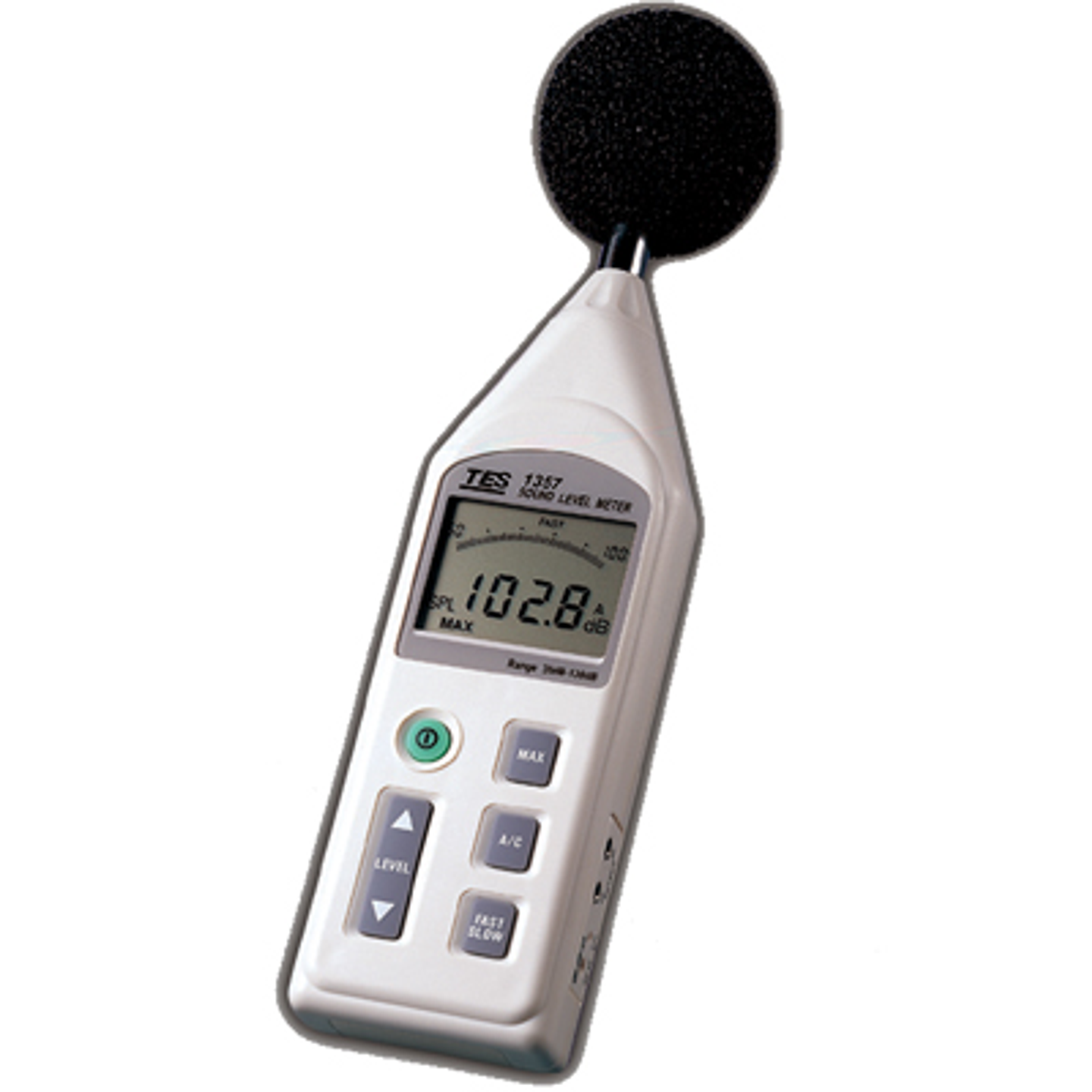

Precision Sound Level Meter
Brand
TES
|
Model
TES-1357
|
🇹🇼 Taiwan
Designed with excellent measurement precision, the TES-1357 Precision Sound Level Meter offers multiple response times and frequency weighting options, perfect for various noise analysis applications.
Out of Stock
Views: 0
Description
The TES-1357 Precision Sound Level Meter features a 0.1dB resolution and 30-130dB measuring range, supports fast and slow response times, and complies with international standards, suitable for various acoustical measurement needs.
The TES-1357 is a high-precision sound level meter designed by TES. It offers a 0.1 dB resolution and measures sound levels from 30 to 130 dB. Users can select fast or slow response rates, as well as A and C weighting networks. The device meets IEC61672-1:2013 Class 2 and ANSI S1.4:1983 Type 2 standards, with an accuracy of ±1.0 dB. Equipped with a 1/2-inch polarized condenser microphone, it provides clear, reliable readings. Ideal for professional sound measurement, it includes a digital display, overload indicators, and AC/DC output options.
Specifications
- Measuring Range30-130dB
- Resolution0.1dB
- Accuracy±1.0dB (94dB @1kHz)
- Microphone1/2 inch polarized condenser microphone
- Sound Frequency31.5 Hz to 8KHz
- FrequencyA and C weighting
Features
- Fast and Slow ResponseSupported
- A and C WeightingSupported
- Overload Protection"OVER", "UNDER" symbols display
- Signal Output0.707Vrms/10mV/dB
Attributes
- Dimensions265 (L)×72(W)×35(H)mm
- WeightApproximately 358 grams
- Power Supply4 x 1.5V AA batteries or DC 6V 100mA power adapter
- Operating Temperature0 ~ 40℃, 10 ~ 80% RH
