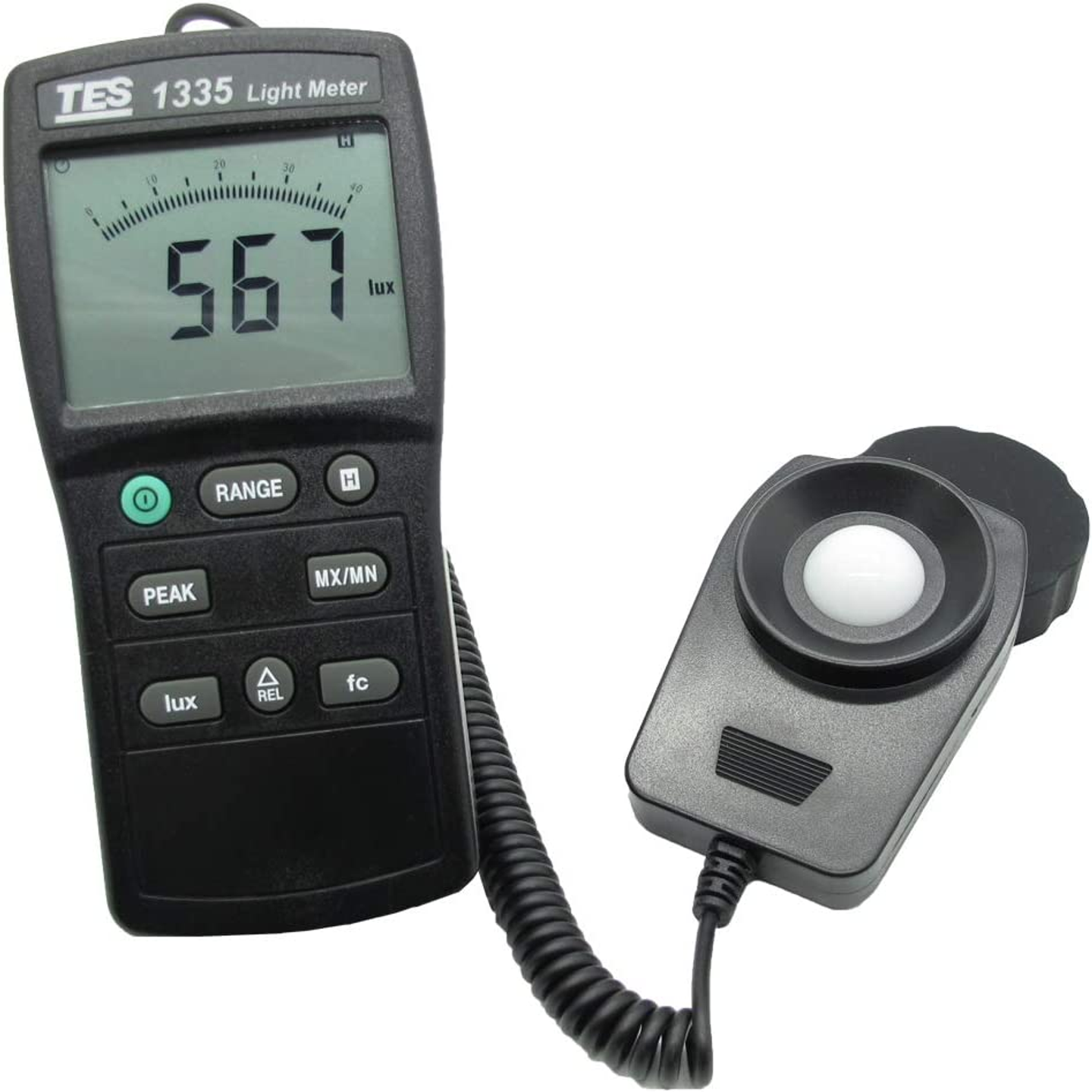

Digital Lux Meter
Brand
TES
|
Model
TES-1335
|
🇹🇼 Taiwan
• High-precision digital lux meter, compliant with CIE standards
• Measurement range: 0 to 400K Lux (0 to 40K fc)
• Features maximum, minimum, and peak hold functions
• Data hold function for easy reading
• Relative mode for different measurement needs
• Auto power-off function to save battery life
• Automatic cosine correction for incident light angle, enhancing measurement accuracy
• Suitable for industrial, commercial, and home environments
Price
NT$ 3,255
Out of Stock
Views: 0
Description
The TES-1335 Digital Lux Meter is designed for measuring light intensity in industrial, commercial, and home environments. It features high precision and fast response, complying with the CIE standard, ensuring reliable measurement results. Easy to operate, it is suitable for various users, whether professionals or home users can easily grasp its operation. With a measurement range of up to 400K Lux, it excels in a variety of application scenarios.
Specifications
- 顯示器3-3/4位液晶顯示及類比條碼指示
- 量測範圍40.00Lux、400.0Lux、4000Lux、40.00KLux、400.0KLux、40.00fc、400.0fc、4000fc、40.00Kfc
- 過載保護顯示 “OL”
- 解析度0.01 Lux (0.01fc)
- 精確度±3%rdg ± 0.5% f.s
- 光譜準確性f ’1≦ 6%
- 餘弦反應f ’2≦ 2%
- 溫度特性±0.1% 1℃
- 取樣率數位顯示每秒1.3次，類比顯示每秒13.3次
- 感光體矽製光二極體及瀘光鏡片
- 電源6顆1.5V AAA電池
- 電池壽命約400小時
- 附件150公分及92(長) × 60(寬) × 29mm(高)
- 重量150(長) × 72(寬) × 35 mm (高) / 320g
- 操作 / 儲存溫濕度0℃ ~ 40℃，80%R.H.以下 / -10℃ ~ 50℃，70%R.H.以下
Features
- 照度符合國際照明協會CIE標準
- 量測範圍0到400K Lux (0到40K fc)
- 數值保持是
- 最大/最小值是
- 峰值鎖定功能是
- 相對值模式是
- 入射光餘弦角度自動補正功能是
- 自動關機30分鐘
Attributes
- Operating Temperature0℃ ~ 40℃, below 80% R.H.
- Storage Temperature-10℃ ~ 50℃, below 70% R.H.
- AccessoryUser manual, batteries, carrying case
