60MHz Digital Oscilloscope
Brand
TECPEL
|
Model
OS-2062
|
🇨🇳 China
• 60MHz measurement bandwidth, ideal for electronic circuit testing
• Combination of multifunctional multimeter and oscilloscope
• Multilingual interface (Traditional Chinese, Simplified Chinese, English, etc.)
• Waveform storage feature, can store up to 10 waveforms
• Supports edge, video, and alternate triggering modes
• Signal output options: RS232 or USB
Out of Stock
Views: 0
Description
The OS-2062 60MHz Digital Oscilloscope combines the features of a multifunctional multimeter and an oscilloscope, designed for testing electronic circuits. Suitable for educational use in schools and personal laboratories, this device offers a measurement bandwidth of up to 60MHz and comes with a multilingual interface for easy operation and data reading.
Specifications
- 頻寬60MHz
- 取樣率±100ppm
- 上升時間小於 5.8ns
- 解析度8 Bit
- 記憶深度每通道 6K
- 通道數2
- 過載保護400V（PK-PK）CAT Ⅱ
- 精確度DC:約 ±(1%+2數值) / AC:約 ±(1%+3數值)
- 觸發精度±0.3格
- 輸入阻抗1MΩ±2%，與20pF±3pF 並聯)
- 顯示位數3,999
- 交流電壓750 V
- 直流電壓1,000 V
- 交流電流40m / 4000m / 10 A
- 直流電流40m / 4000m / 10 A
- 電阻400 / 4K / 40K / 400K / 4M / 40M Ω
- 電容51.20n / 512.0n / 5.120u / 51.20u / 100u F
Features
- 介面正體中文／簡體中文／英文等
- 波型儲存10筆
- 波形觸發邊沿、視頻、交替
- 訊號輸出RS232 或 USB
Attributes
- Operating Temperature0~40 °C / lower than 80%RH without dew
- Storage Temperature00~50 °C / lower than 70%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyApprox. 7Ｗ
- Dimensions180 × 115 × 40 mm
- Weight685g

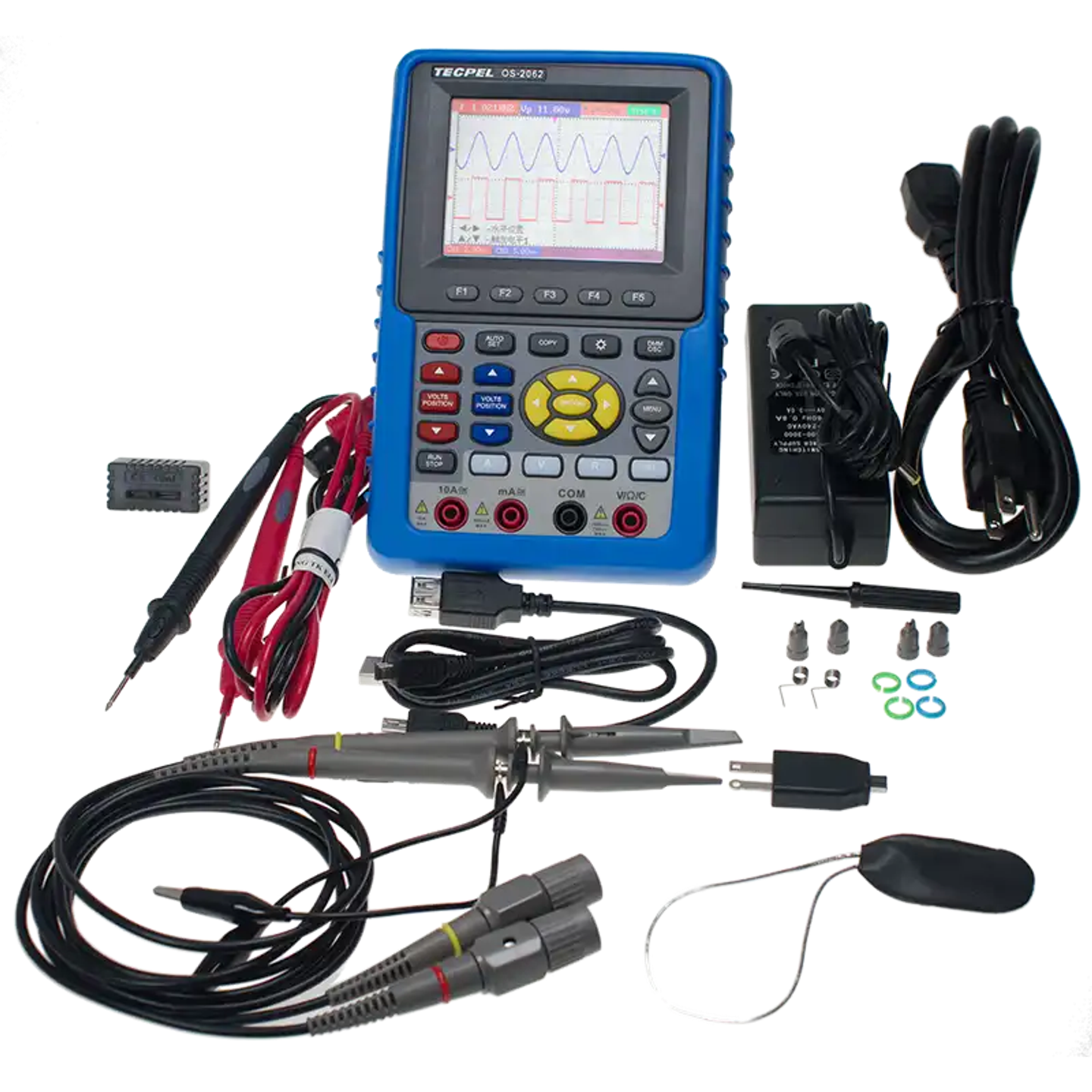

- AccessoryMeter probe, transformer, oscilloscope probe x2, oscilloscope probe adjustment tool, capacitance test module, 1K5V signal module, transmission line, CD, manual, suitcase
