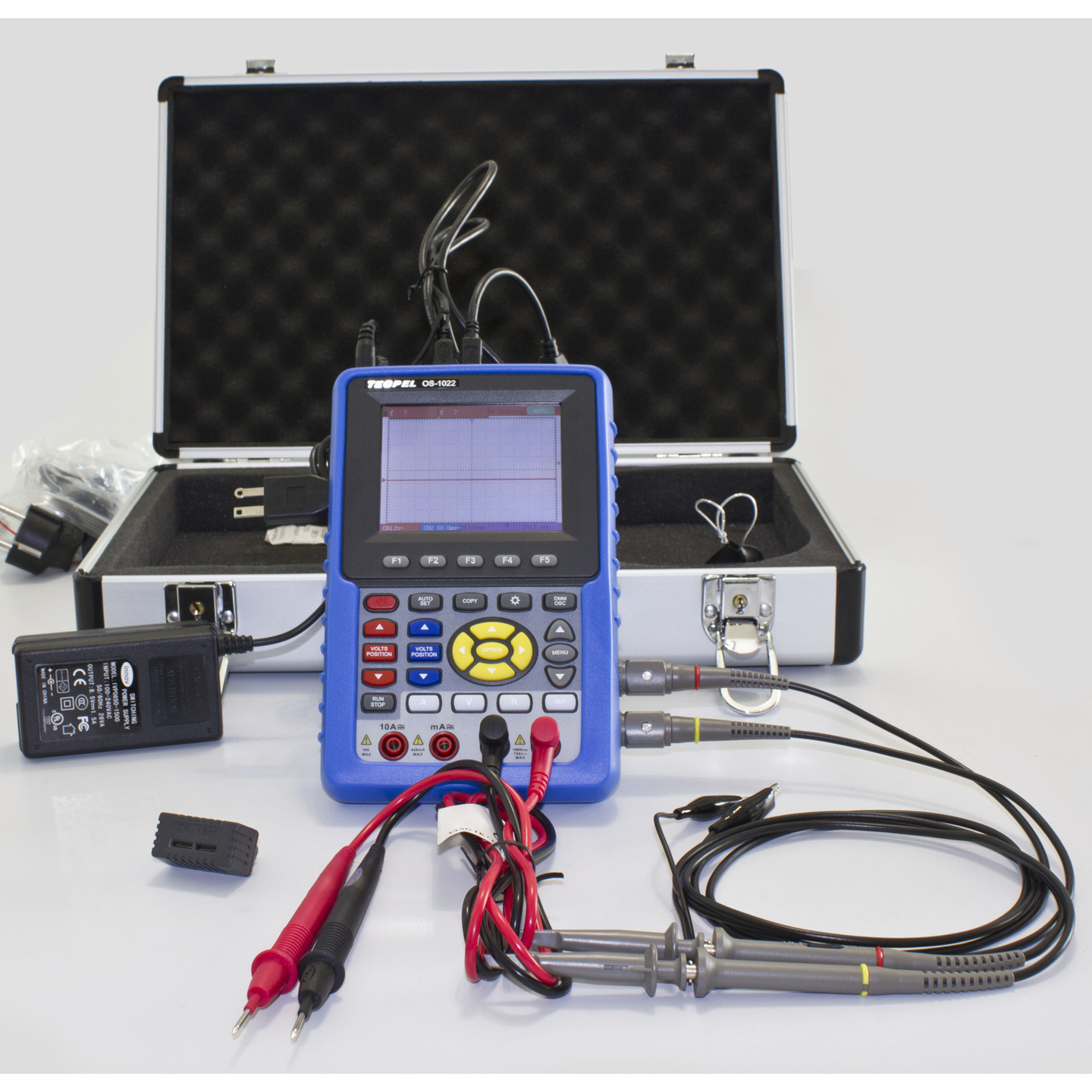

OS-1022 20MHz Digital Oscilloscope, handheld, 2CH, DSO

Brand TECPEL | Model OS-1022 | 🇨🇳 China

Key features of the OS-1022 20MHz Digital Oscilloscope include: - Multifunctional multimeter and oscilloscope capabilities - Supports multilingual interface - 20MHz measurement bandwidth for electronic circuit testing - Dual-channel design for simultaneous signal observation - Stores 10 waveforms for easy retrieval - RS232 or USB signal output for data transfer

Out of Stock

The OS-1022 20MHz Digital Oscilloscope is a handheld device that combines the features of a multifunctional multimeter and an oscilloscope, designed for inspecting and testing electronic circuits. With a measurement bandwidth of 20MHz, it is suitable for educational purposes and personal workshops, providing a multilingual interface for convenient operation.

Bandwidth20MHz
Channels±100ppm
Sampling Rate小於 17.8nS
Memory Depth8 Bit
Resolution每通道 6K
Rise Time2
Input Impedance400V（PK-PK）CAT Ⅱ
Overload ProtectionDC:約 ±(1%+2數值) / AC:約 ±(1%+3數值)
Accuracy±0.3格
Trigger Accuracy1MΩ±2%，與20pF±3pF 並聯
Display Counts3,999
AC Voltage750 V
DC Voltage1,000 V
AC Current40m / 4000m / 10 A
DC Current40m / 4000m / 10 A
Resistance400 / 4K / 40K / 400K / 4M / 40M Ω
Capacitance51.20n / 512.0n / 5.120u / 51.20u / 100u F

Wave Trigger正體中文／簡體中文／英文等
Waveform Storage10筆
Multi-language Interface邊沿、視頻、交替
Signal OutputRS232 或 USB

Operating Temperature0~40 °C / lower than 80%RH without dew
Storage Temperature00~50 °C / lower than 70%RH without dew
Altitude LimitLower than 1,000 meters
Power SupplyApprox. 6Ｗ
Interface180 × 115 × 40 mm
Dimensions685g
WeightMeter probe, transformer, oscilloscope probe x2, oscilloscope probe adjustment tool, capacitance test module, 1K5V signal module, transmission line, CD, manual, suitcase
Accessories電錶測棒、變壓器、示波器測棒x2、示波器測棒調整工具、電容測試模組、1K5V 訊號模組、傳輸線、光碟、說明書、手提箱
