MS6708 Digital Sound Level Meter
Brand
MASTECH
|
Model
MS6708
|
🇨🇳 China

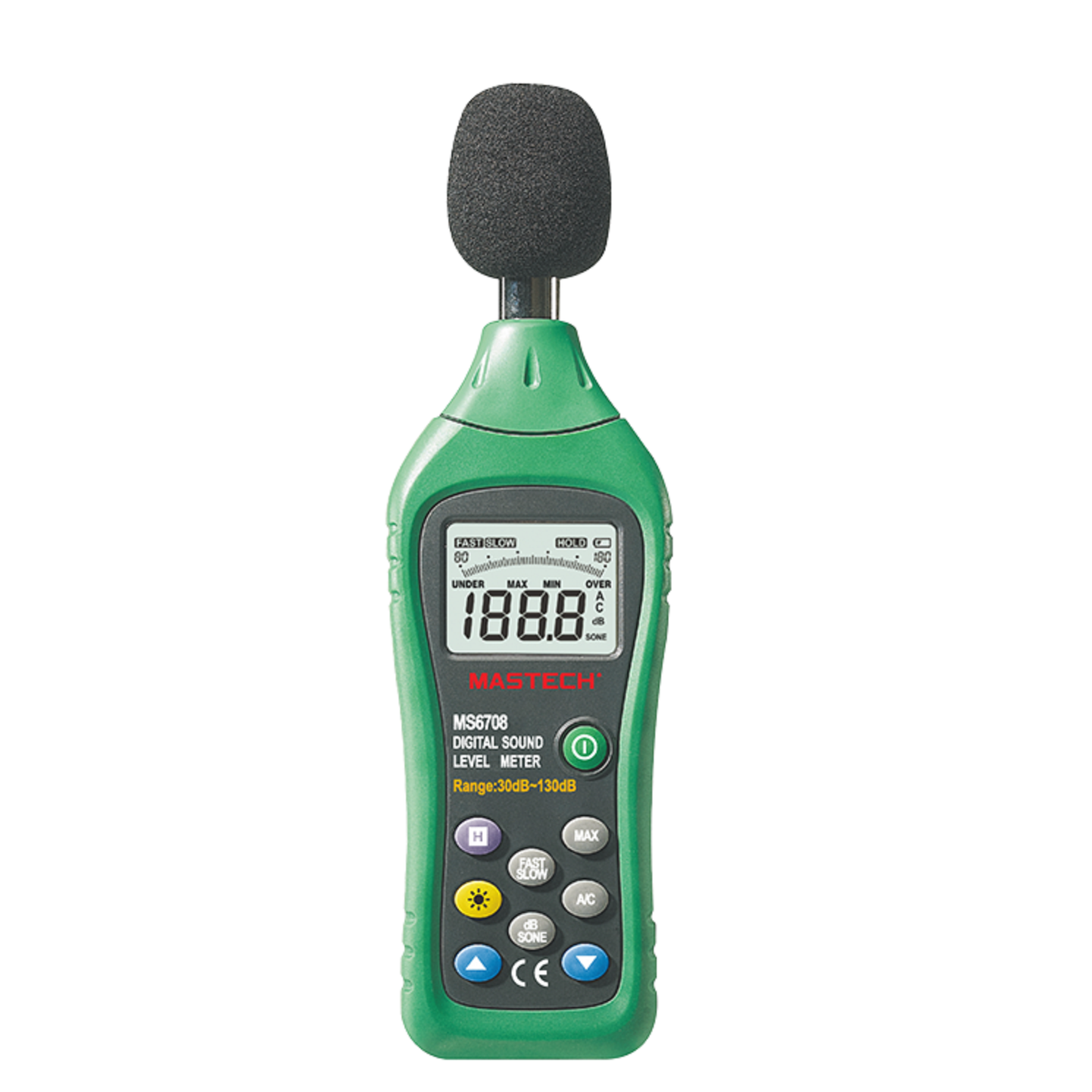

MASTECH MS6708 Digital Sound Level Meter
DB: Displays the measured sound level in decibels (dB).
Backlight: Turns on the display backlight for easy viewing in low-light conditions.
Low Battery: Indicates when the batteries are low and need to be replaced.
Mode Select: Allows you to select the desired measurement mode, such as A-weighting, C-weighting, or fast/slow response.
Data Hold: Freezes the current reading on the display for easy viewing and recording.
This digital sound level meter is widely used to test noise at work, occupational noise, and environmental and community noise. It is also used in vehicle noise testing and other specialized applications.
Price
NT$ 2,783
Out of Stock
Views: 0
Description
MASTECH MS6708 is a test instrument for measuring environmental noise and product volume standardization. Its measurement range is from 30 to 130dB with an accuracy of ±1.5 dB. It has fast (FAST) and slow (SLOW) weighting characteristics and can accurately reflect the environment. noise changes.
Designed to comply with IEC651 Type II and ANSI S1.4 Type II class standards, it has backlight, low battery, and measurement value lock (data hold) functions. It is an ideal noise measurement instrument for a wide range of applications and suitable for first-time buyers.
Specifications
- Display2000 counts
- Sound Level30dB~80dB, 40dB~90dB, 50dB~100dB, 60dB~110dB , 70dB~120dB , 80dB~130dB , 0.1dB ±1.5dB
- Resolution0.1 dB
- Sound Frequency30 to 8K Hz
- Accuracy±1.5 dB (94dB @ 1KHz)
- Dynamic Range65dB
- FrequencyA and C
- Time Weighting(FAST) 250ms，(SLOW) 1Sec.
Features
- Data HoldMAX HOLD，MIN HOLD
- Overload Protection“OVER”，”UNDER”
Attributes
- Operating Temperature0 to 40 °C / 10 to 90 %RH without dew。
- Storage Temperature-10 to 40 °C / lower than 80 %RH without dew。
- Elevation LimitationLower than 1,000 meters
- Applicable standardsIEC 61672-1: 2013 Class 2, ANSI S1.4: 1983 Type 2
- Microphone1/2 inch electric condenser microphone
- Power SupplyDC 1.5 Battery x 4
- Dimensions193 mm (L) x 60 (W) x 29 (H)mm
- WeightApprox. 222 g (Battery Included)
- AccessoryInstruction Manual, 1.5 V Battery x 4 , Carrying Case、 Sponge ball
