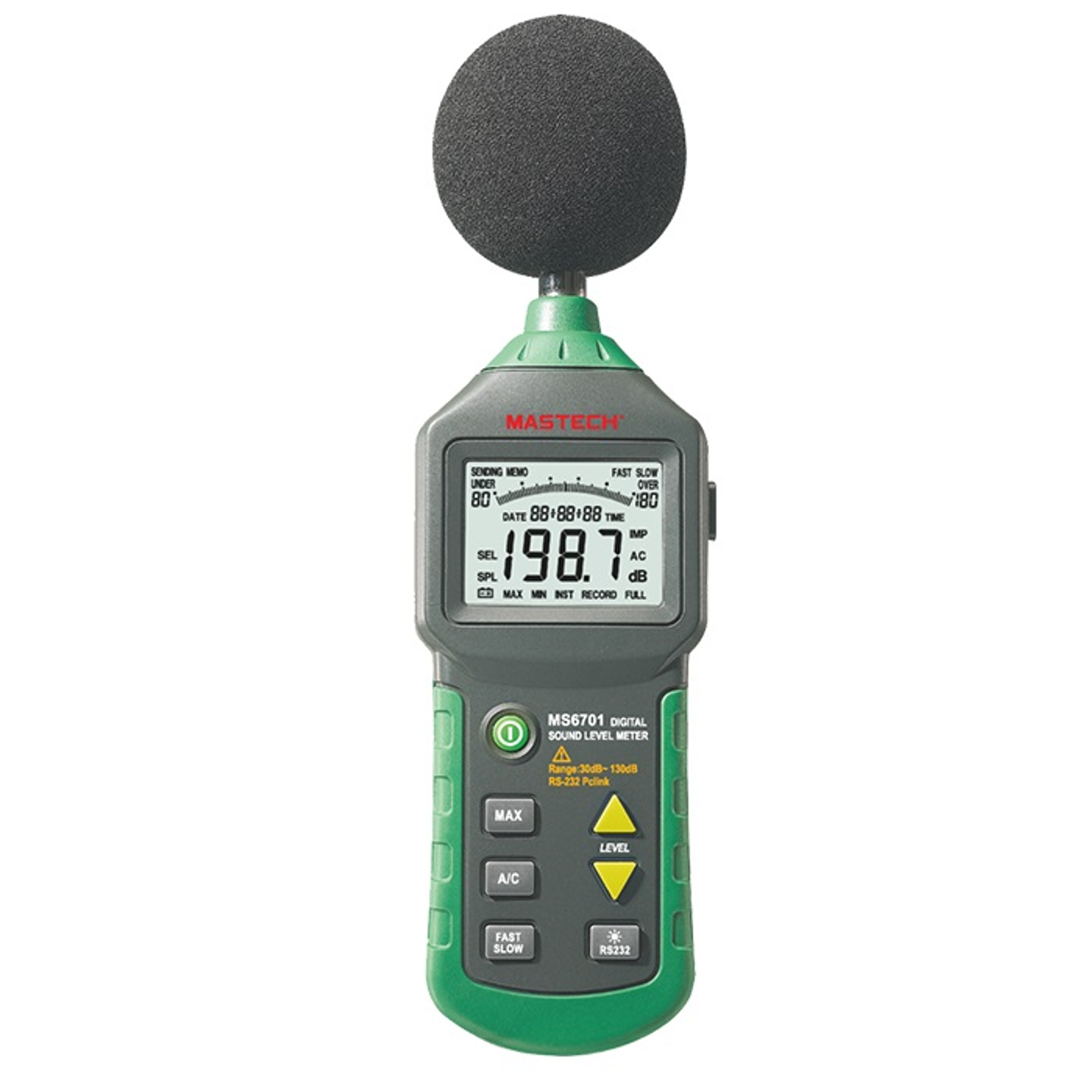

MASTECH MS6701Digital Sound Level Meter Data logger
Brand
MASTECH
|
Model
MS6701
|
🇨🇳 China
The MASTECH MS6701 offers several practical features, including:
- 2000 count display for easy data reading
- Automatic & manual file selection for convenient use
- Auto shut-off to save battery power
- Measurement range of 50dB to meet various needs
- Frequency range of 30Hz to 8kHz for adaptability
- Supports A/C weighting for precise measurement
- Backlit display for ease of use in low light conditions
- USB interface for simplified data transfer
- Supports AC/DC signal output for flexible device connection
- Data storage of up to 16,000 records for easy analysis
Price
NT$ 3,990
Out of Stock
Views: 0
Description
The MASTECH MS6701 Digital Sound Level Meter is a handheld device designed for measuring environmental noise. Its portable carrying case allows users to easily transport it and record changes in noise levels. This device is ideal for various locations, such as hospitals, postpartum centers, and product volume standardization checks, aiding users in understanding their acoustic environment.
Specifications
- 顯示器2000 位數
- 音量30dB~80dB , 40dB~90dB, 50dB~100dB, 60dB~110dB, 70dB~120dB, 80dB~130dB
- 解析度0.1 dB
- 頻率範圍30 Hz ~ 8KHz
- 精確度±1.5dB (94dB @ 1KHz)
- 動態範圍50dB
- 頻率A和C
- 時間加權特性快速(FAST)125毫秒，慢速(SLOW)1秒
Features
- 資料記錄16,000筆
- 記錄間隔0.1 秒 ~ 30秒
- 數值保持MAX HOLD，MIN HOLD
- 過載保護“OVER”，”UNDER”符號表示
- 訊號輸出AC/DC信號，由耳機接孔輸出
- AC輸出範圍AC=1Vrms(每範圍檔)，輸出阻抗約100Ω
- DC輸出範圍DC=10mV/dB，輸出阻抗約1KΩ
- 校正方式旋鈕校正(儀器側邊旋鈕調整)
Attributes
- Operating Temperature0~40°C / 10~90%RH without dew。
- Storage Temperature-10~40°C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Microphone1/2 inch electric condenser microphone
- Power SupplyDC AAA Battery x4 / DC 9V AC110V transformer (ADP-01 Optional)
- Battery LifeApprox. 35 hours (Alkaline battery)
- Dimensions245 (L) x 80 (w) x 35 (H)mm
- WeightApprox.317 g (Battery Included) / 0.7lb
- AccessoryInstruction Manual、9V Battery、 Carrying Case、Calibration screwdriver, 3.5Ø plug, Sponge ball
