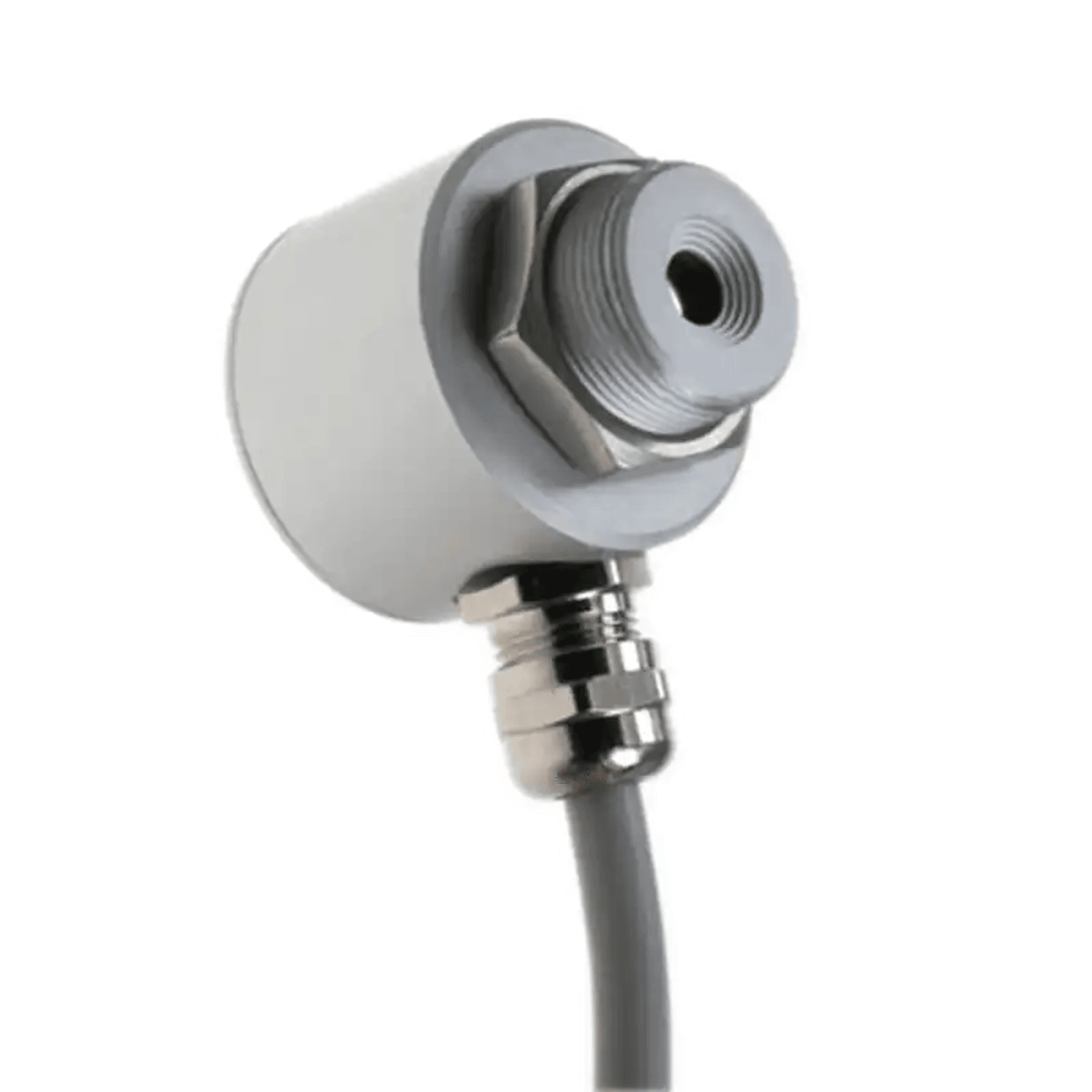

Infrared Temperature Transmitter
Brand
TECPEL
|
Model
IRS-20-1
|
🇨🇳 China
The IRS-20 transmits a 4~20mA current signal, connecting with industrial instruments, ideal for use with display heads or other monitoring equipment.
- Reflectivity fixed at 0.95
- Maximum/Minimum value recording function
- Alarm function available
- Backlight display for low-light environments
- Auto shutdown feature to save energy
Out of Stock
Views: 0
Description
The IRS-20 Infrared Temperature Transmitter is designed for long-term measurement at fixed positions, accurately reflecting the surface temperature of objects. It is suitable for industrial production lines and high-temperature boiler applications, providing stable temperature data monitoring to ensure safety and efficiency in the production process.
Specifications
- 溫度範圍-50 ~ 500 °C ±1.0 °C
- 紅外線 感應波長8~14 μm
- 精確度±1.5% 或 +1.5°C
- 光學解析度12:1
- 反應時間< 1 秒
- 感測器類型紅外感應器
- 解析度0.1°C
Features
- 反射率(ε)0.95 固定
- 訊號輸出4~20mA
- 最大/最小值是
- 警報功能是
- 背光顯示是
- 自動關機是
Attributes
- Operating TemperatureTemperature -10 ~ 50°C, Humidity below 85%RH, non-condensing
- Storage TemperatureTemperature -20 ~ 60°C, Humidity below 90%RH, non-condensing
- Elevation LimitationLower than 1,000 meters
- Power Supply9V battery
- Dimensions150 x 80 x 40 mm
- Weight200g (with battery)
- AccessoryManual
