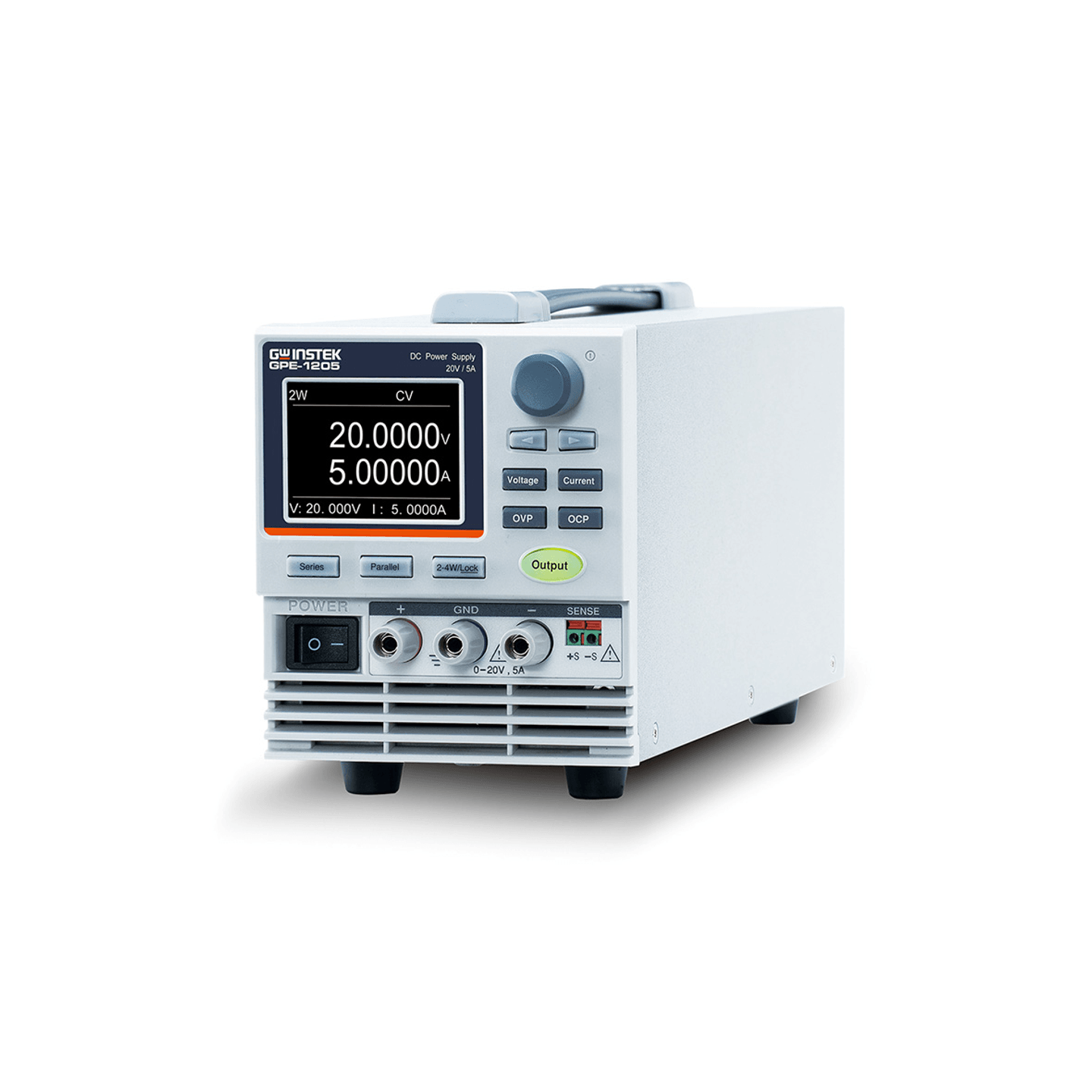

20V/5A 100W Single Channel Linear DC Power Supply
Brand
GWINSTEK
|
Model
GPE-1205
|
🇹🇼 Taiwan
The GWINSTEK GPE-1205 is a 20V/5A 100W single-channel linear DC power supply with low ripple, fast recovery, 2.4-inch TFT LCD, Remote Sense and hardware protection.
Downloads
Out of Stock
Views: 4
Description
GPE-1205 is a GWINSTEK GPE-1000 Series single-channel linear DC power supply with 20V/5A 100W output. It keeps the low ripple and fast transient response advantages of a linear supply for battery-powered devices, audio circuits, R&D, repair, education and factory testing. Compared with legacy 90 W GPS models, the GPE-1000 Series adds a 2.4-inch TFT LCD, encoder setting, 1 mV / 0.1 mA setting resolution, OVP/OCP/OTP, Remote Sense and rear-panel Control I/O for precise setup and series/parallel applications.
Specifications
- Display2.4-inch TFT LCD
- ChannelsSingle channel
- Output Voltage0~20 V
- Output Current0~5 A
- Rated Output Power100 W
- Voltage Setting Resolution1 mV
- Voltage Readback Resolution100 μV
- Current Setting Resolution0.1 mA
- Current Readback Resolution10 μA
- Accuracy±(0.03% of reading + 10mV)
- Voltage Limit Regulation Rate≦0.01%+3mV
- Voltage Load Regulation Rate≦0.01%+3mV
- Current Limit Regulation Rate≦0.2%+3mA
- Current Load Regulation Rate≦0.2%+3mA
- Voltage Ripple≦0.5mVrms (5Hz~1MHz)
- Current Ripple≦3mArms
- Recovery Time≦100 μs (50% load change, minimum load 0.5 A)
Features
- Setting ControlEncoder switch for voltage/current setting
- Display2.4-inch TFT LCD replacing legacy LED display
- Voltage Setting Resolution1 mV
- Voltage Readback Resolution100 μV
- Current Setting Resolution0.1 mA
- Current Readback Resolution10 μA
- Overload ProtectionOVP, OCP, OTP, output On/Off and Key Lock
- Remote SenseRemote Sense support with up to 1 V compensation
- Series/Parallel ControlRear-panel Control I/O supports series/parallel operation of two same-model GPE units
- Replacement UseDesigned as the successor platform for 90 W GPS-1850D, GPS-3030D and GPS-3030DD applications
Attributes
- Operating Temperature0~40 °C / indoor use
- Storage Temperature-10~70 °C
- Power SupplyAC 100V/120V/220V/240V, 50/60Hz
- Dimensions107(W) x 124(H) x 313(D) mm
- WeightApprox. 5.2 kg
- Standard AccessoriesPower cord x1, packing list x1; GTL-104A test lead x1 for non-European models, GTL-204A test lead x1 for European models
- AccessoriesGTL-234 RS-232C cable; GRA-441-J JIS rack kit; GRA-441-E EIA rack kit
- Ordering InformationGPE-1205 Single Channel, 100 W Linear DC Power Supply
