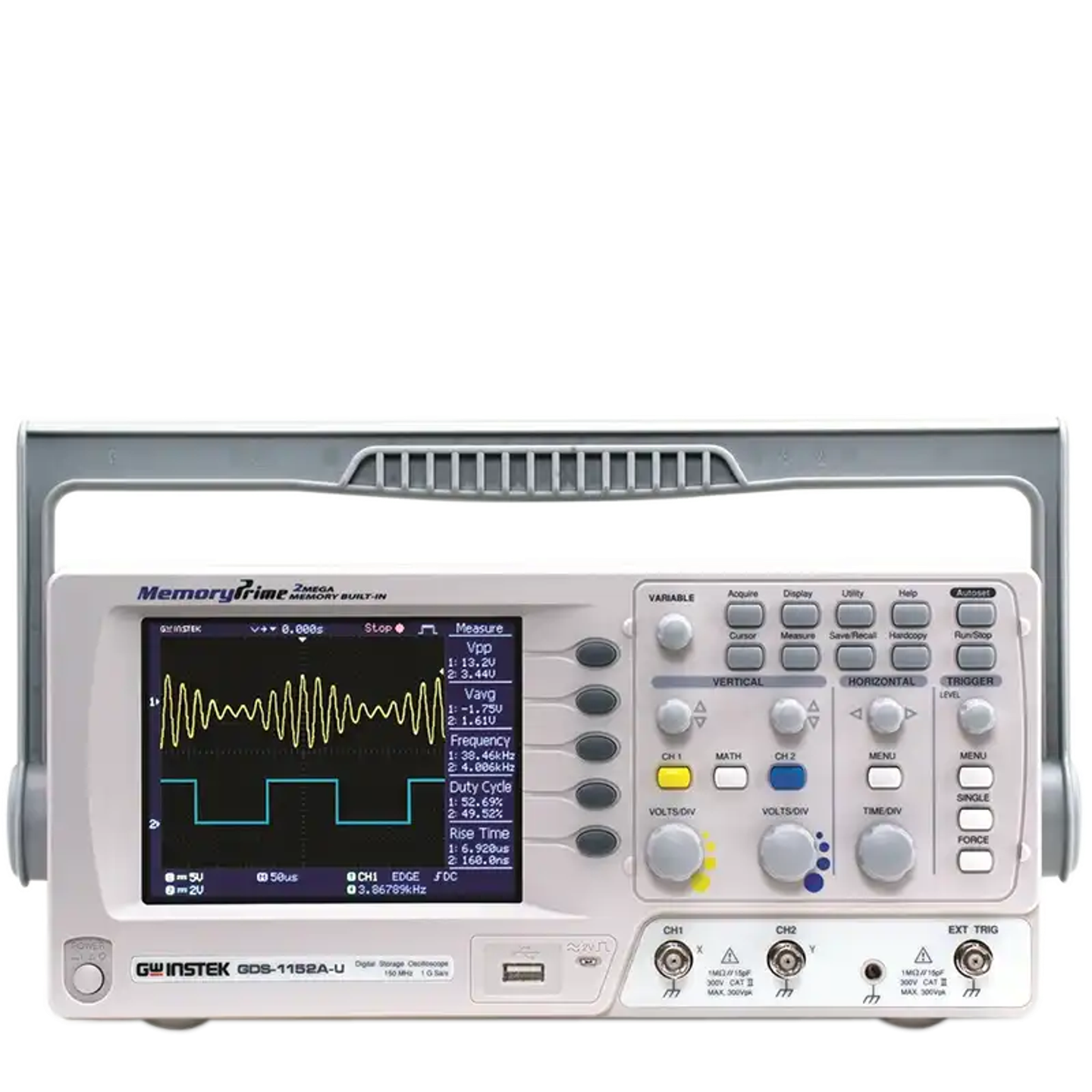

GWINSTEK, GDS-1102A-U 100MHz Digital Storage Oscilloscope
Brand
GWINSTEK
|
Model
GDS-1102A-U
■ 100 MHz bandwidth, 2 input channels
■ 1GSa/s real-time sampling rate and 25GSa/s equivalent sampling rate
■ Maximum 2M memory depth
■ Peak detection up to 10ns
■ 15 panel settings and waveform storage/recall
■ 5.7” TFT full-color display
■ 27 automatic measurements
■ Horizontal scan: 1nS ~ 50S/div
■ Supports USB Host and Device access
■ Go/NoGo test function
■ Data logger
Out of Stock
Views: 49
Description
The GWINSTEK GDS-1102A-U 100MHz Digital Storage Oscilloscope features advanced MemoryPrime technology that optimizes memory size for detailed waveform analysis, making it highly efficient for various applications in electronics development, maintenance, and education. With its high bandwidth and sampling rate, this oscilloscope is adept at handling diverse signal testing environments.
Specifications
- Bandwidth100MHz
- Channels8 Bit
- Sampling Rate25G Sa/s
- Memory Depth小於 3.5ns
- Resolution單通道可達2M，雙通道時為 1M
- Rise Time2
- Input Impedance300V (DC+AC peak), CAT II
- Overload Protection± 3% full scale
- Trigger Accuracy1MΩ ±2%, ~15pF
Features
- Wave Trigger正體中文／簡體中文／英文...等
- Waveform StorageVpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/ Overshoot, Fall Preshoot/ Overshoot
- Auto MeasurementFreq, Period, Rise Time, Fall Time, + Width, – Width, Duty Cycle
- Multi-language Interface15筆
- Signal OutputUSB 2.0 full speed (CDC-ACM)
Attributes
- Operating Temperature0~50°C / Below 80%RH @35°C, no condensation
- Storage Temperature-20~60°C / Below 70%RH @35°C, no condensation
- Altitude LimitLower than 1,000 meters
- Power SupplyApprox. 18W, 40VA maximum
- Fuse1A slow, 250V
- Display5.7 inch, TFT, Brightness Adjustable
- Interface310(W) x 142(H) x 140(D) mm
- DimensionsApprox. 2500g
- WeightOscilloscope probe x2, oscilloscope probe adjustment tool, transmission line, Disc, manual
- Accessories示波器測棒x2、示波器測棒調整工具、傳輸線、光碟、說明書
