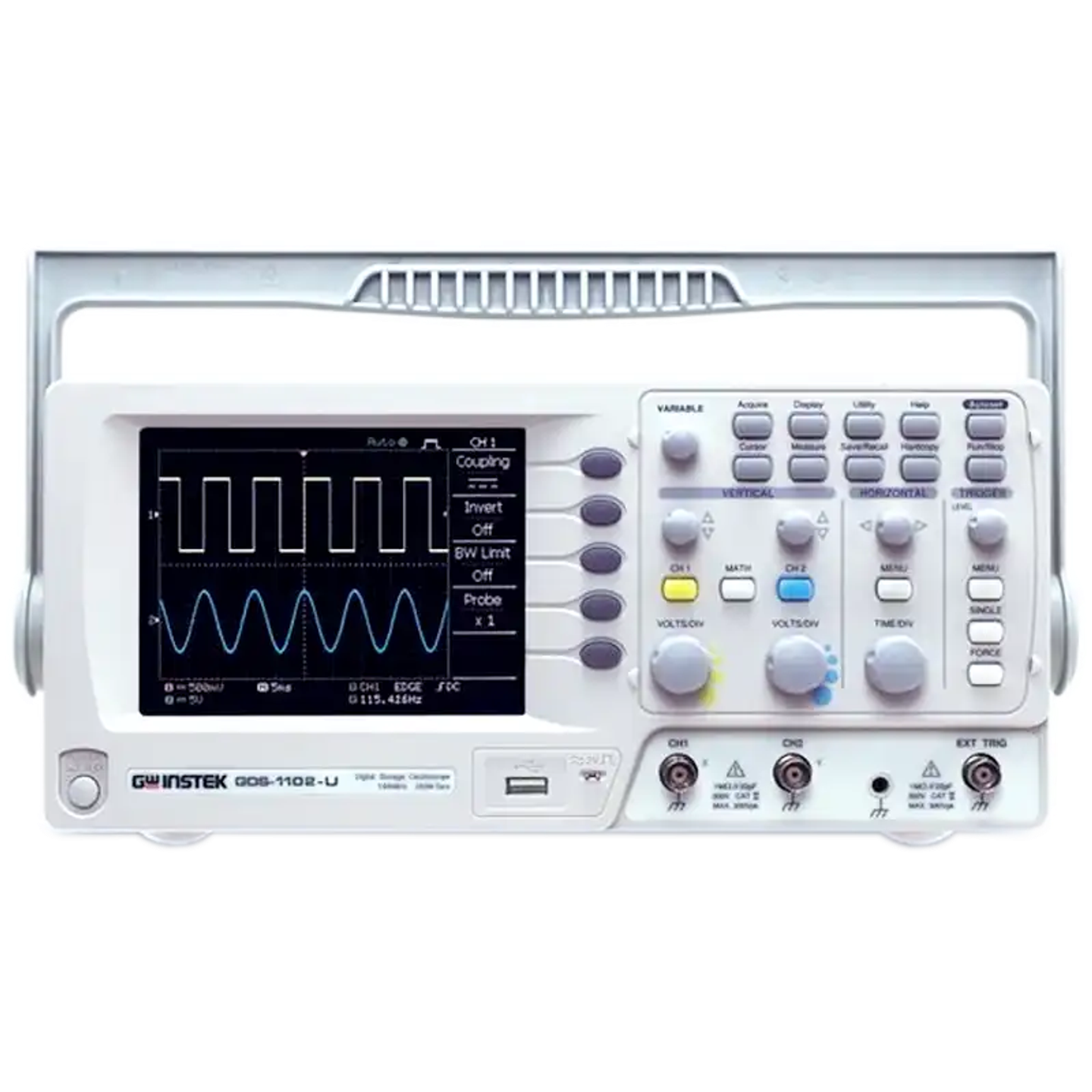

70MHz Desktop Digital Oscilloscope
Brand
GWINSTEK
|
Model
GDS-1072-U
|
🇹🇼 Taiwan
■ 70 MHz bandwidth, 2 input channels
■ 250MSa/s real-time sampling rate and 25GSa/s equivalent sampling rate
■ 4k storage depth/CH
■ Peak detection up to 10ns
■ 15 panel settings and waveform storage/recall
■ 5.7" TFT full-color display
■ 19 sets of automatic measurements
■ Horizontal scanning: 1nS ~ 50S/div
■ Supports USB Host and Device access
■ Go/NoGo testing function
■ Data logger
Out of Stock
Views: 52
Description
The GDS-1072-U 70MHz Desktop Digital Oscilloscope is a well-crafted dual-channel oscilloscope designed to meet diverse educational needs and basic industrial applications. It features a bandwidth of 70MHz, a real-time sampling rate of 250MSa/s, and an equivalent sampling rate of 25GSa/s, providing accurate waveform display. With a 5.7-inch color TFT LCD display and an intuitive interface design, users can easily perform measurements and enjoy an unparalleled operating experience.
Specifications
- Bandwidth70MHz
- Channels8 Bit
- Sampling Rate25G Sa/s
- Memory Depth小於 5ns
- Resolution4K
- Rise Time２
- Input Impedance300V (DC+AC peak), CAT II
- Overload Protection± 3% full scale
- Trigger Accuracy1MΩ ±2%, ~15pF
Features
- Wave Trigger正體中文／簡體中文／英文...等
- Waveform StorageVpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/ Overshoot, Fall Preshoot/ Overshoot
- Auto MeasurementFreq, Period, Rise Time, Fall Time, + Width, – Width, Duty Cycle
- Multi-language Interface15筆
- Signal OutputUSB 2.0 full speed (CDC-ACM)
Attributes
- Operating Temperature0~50°C / Below 80%RH @35°C, no condensation
- Storage Temperature-20~70°C / Below 70%RH @70°C, no condensation
- Altitude LimitLower than 1,000 meters
- Power SupplyApprox. 18W, 40VA maximum
- Fuse1A slow, 250V
- Display5.7 inch, TFT, Brightness Adjustable
- Interface310(W) x 142(H) x 140(D) mm
- DimensionsApprox. 2500g
- WeightOscilloscope probe x2, oscilloscope probe adjustment tool, transmission line, Disc, manual
- Accessories示波器測棒x2、示波器測棒調整工具、傳輸線、光碟、說明書
