Large Digital Sound Level Display monitor, industrial display monitors

Brand TECPEL | Model DSL-1406 | 🇹🇼 Taiwan
Sound Pressure Made in Taiwan Replaceable Sensor Alarm
DSL-1406 noise display board is a large-scale sound level display board .It matched with a noise meter or a noise transmitter which can measure the noise value of the scene and make it easy for the on-site personnel to monitor. It is suitable for environmental monitoring such as hospitals, factories, construction sites, and noise management.
Out of Stock
Views: 61

Description

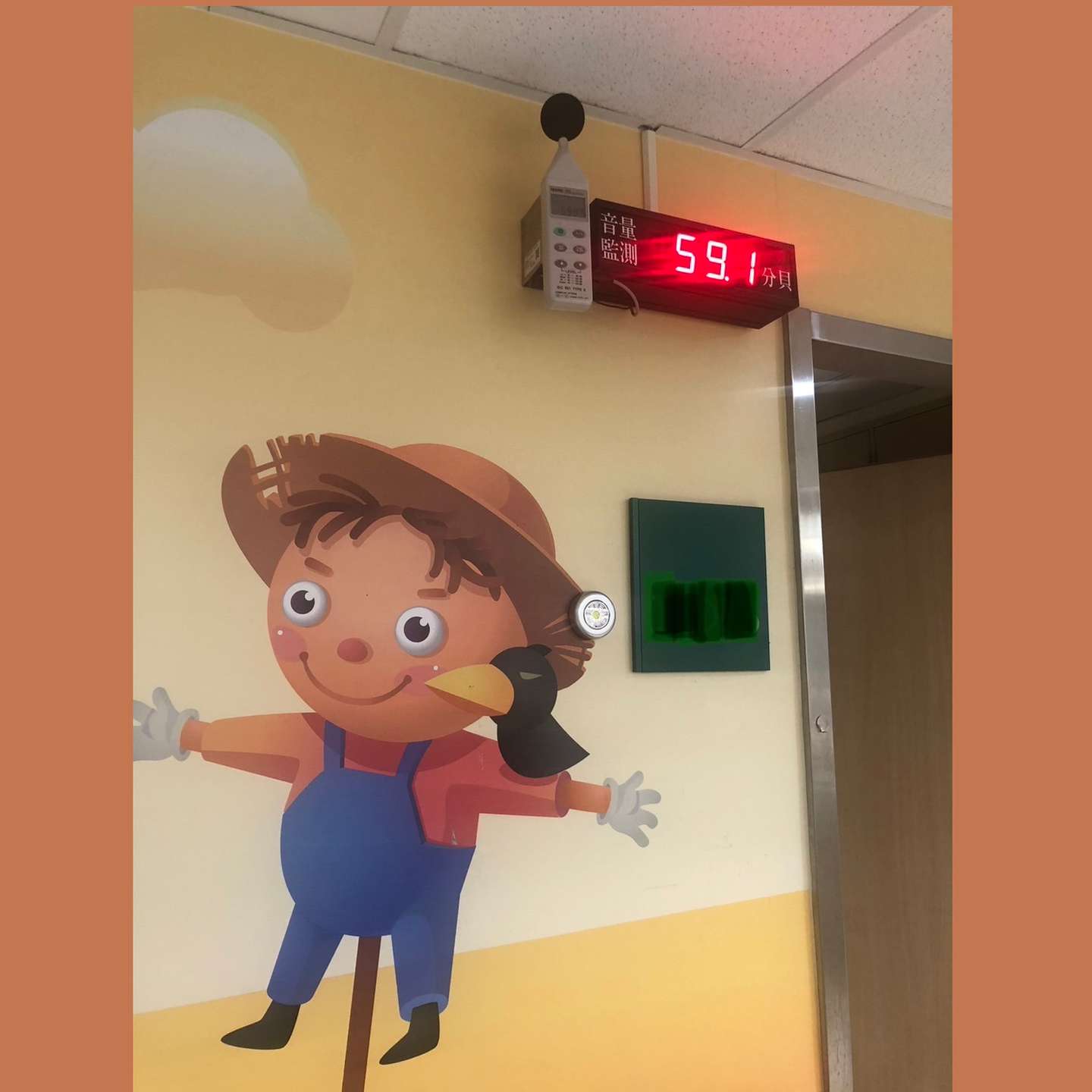

DSL-1406 HL Large Digital Sound Level Display Board The "Noise Monitor" is a tool used to monitor environmental noise levels, critical in hospitals. It helps ensure tranquility in the ward and promotes patient recovery. Children require special attention in hospitals, and the environment should be child-friendly, including brightly colored decorations and entertainment facilities to reduce their uneasiness. Healthcare teams also need to be trained to respond to children's needs and ensure they receive appropriate medical and emotional support. Noise monitors play an important role in mass rapid transit activity areas, monitoring and regulating sound levels. This technology helps ensure that the environment in public transportation places such as stations and trains is not disturbed by excessive noise, providing a quieter and more pleasant ride experience while protecting the hearing health of passengers and staff.

Specifications

  • Display Counts4 digits
  • Sound Level Display30~130 dB or 0~145.0 dB (depends on paired sensor)
  • Resolution0.1
  • Response Time3 times/sec or 0.5 times/sec

Features

  • Standard Input Signal4~20mA or 0~1450mV
  • Output VoltageDC24V / 100mA
  • CalibrationExternal Zero/Span Adjustment
  • User CompensationDigital Compensation
  • DisplayRed LED
  • Digit Size2.3 inch (H57mm x L32mm)

Attributes

  • Operating Temperature0~60 °C / <90%RH, non-condensing
  • Storage Temperature0~60 °C / 10~70%RH, non-condensing
  • Altitude LimitBelow 1,000 meters
  • Power SupplyAC90~260V 50/60 Hz
  • DimensionsH100 x L347 x D61 mm
  • WeightApprox. 1.2 kg
  • Body MaterialBlack aluminum housing
